Weston Stainless is one of the premier stainless steel sheet and plate manufacturers and suppliers in Midland, UK. As a company with a steadfast belief in quality and precision, we provide a comprehensive portfolio of stainless steel solutions to cater to the variegated industrial requirements. Our products are renowned for their strength, resistance to corrosion and superior performance in varied applications. Both serving domestic and international markets, Weston Stainless is a name to rely on in the metal industry, providing reliability and excellence in each sheet and plate.
Stainless steel sheet and plates contain a majority of iron, with chromium (generally 16–20%), and some content of nickel, molybdenum, and carbon varying according to grade. This offers superior corrosion resistance and high strength. Mechanically, they exhibit tensile strength from 515 to 860 MPa and yield strength between 205 to 550 MPa, together with good ductility and toughness. These characteristics render stainless steel suitable for construction, automotive, chemical processing, and food industry uses where strength and cleanliness are critical.
| Standards | ASTM A240 / ASME SA240, MSRR, AMS 5513, BS |
|---|---|

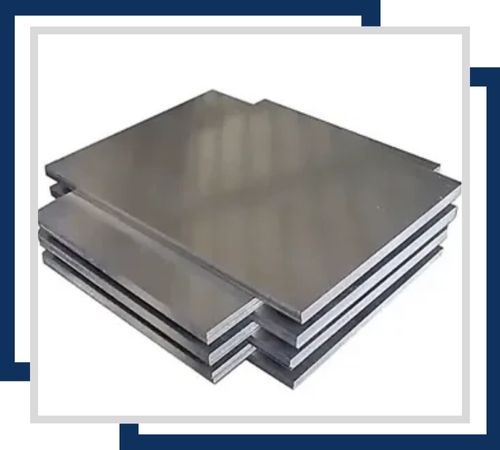

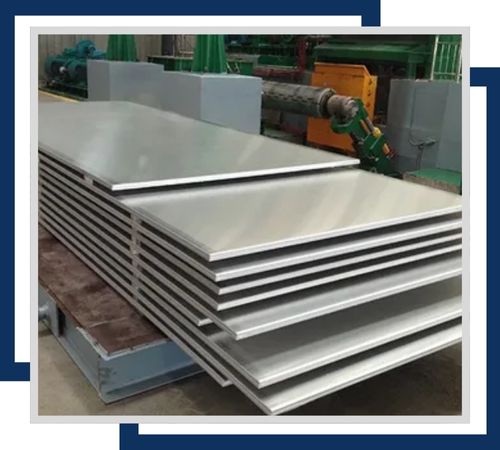

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Thickness | 4mm-100mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Surface | NO.1, NO.4, NO.8, 2B, 2D, BA, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

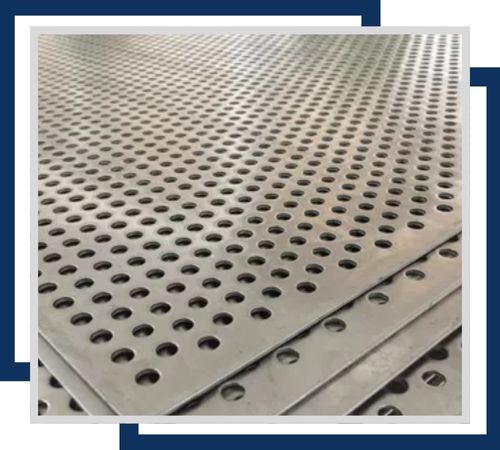

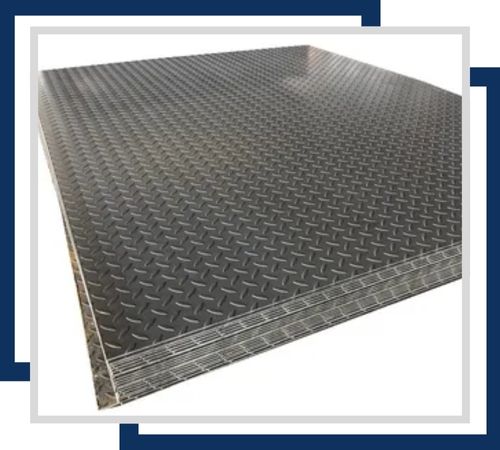

| Form | Perforated Sheet, Chequered Plate, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |

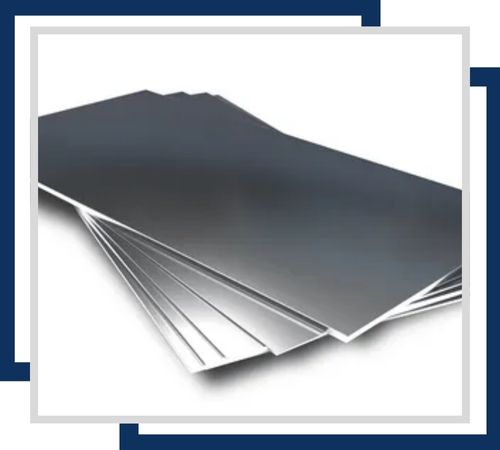

| Available Stock | Shim Sheet, hot rolled, cold rolled, SS Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle),annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Polish, Rolling, Cutting, Bending, Forging, Cladding, Heat Treatment, Annealed, Pickling, Minor Fabrication Etc. |
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| SS Sheets and Plates | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | 8 – 11 |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| SS Sheets and Plates | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Weston Stainless prides itself in the supply of high-quality material, stainless steel sheets and plates, with proper testing procedures that guarantee the optimum performance of our products. We perform hardness tests, spectrochemical analysis, PMI testing, micro and macro testing, flaring, pitting resistance, and IGC tests to ensure our materials meet the highest standards. With this commitment to excellence, we offer our clients all the necessary documentation, such as commercial invoices, packaging lists with accurate net and gross weights, box numbers, and labels. A legalized or attested Certificate of Origin, along with a Third-Party Inspection Certificate, ensures complete transparency and 100% client satisfaction in our stainless steel sheets and plates pricing.
Sheets come in various types like stainless steel (used in construction and medical tools), aluminum (for aerospace and signage), and carbon steel (for structural applications). Galvanized sheets resist corrosion and are used in roofing, while copper and brass sheets are common in electrical and decorative uses. Titanium sheets are preferred in aerospace and medical industries for their strength and light weight.
Yes, stainless steel plates can be used at high temperatures due to their excellent heat resistance. Grades like 310 and 321 are specifically designed for high-temperature applications. They are commonly used in furnaces, heat exchangers, and power plants.
Yes, stainless steel plates can be susceptible to galvanic corrosion when in contact with dissimilar metals in a corrosive environment. The risk increases in the presence of an electrolyte like saltwater. Proper insulation or material selection can help prevent this.
Stainless steel sheets generally do not require corrosion protection coatings due to their natural chromium oxide layer. However, in highly aggressive environments, additional coatings or surface treatments may be used for enhanced protection. Proper grade selection also helps resist specific corrosive conditions.
Stainless steel sheet and plates are found to have extensive applications in various industries because of their strength, corrosion resistance and appearance. In the building industry, they are employed for cladding, roofing, and structural elements. Exhaust systems and trims in the automobile industry utilize them. Hygienic equipment and surfaces in the food and beverage industry utilize them. Chemical processing, marine equipment and medical devices also utilize them. Their durability and versatility make them a popular choice for innumerable uses.
