Weston Stainless, Midland, UK, is a top supplier and producer of premium stainless steel products catering to diverse industries with precision-made materials. Weston Stainless specializes in SS 15-5 PH Sheet and Plates, which are renowned for their high strength, toughness, and superior corrosion resistance. Produced in Grade 15-5 PH, a precipitation-hardening stainless steel, these plates and sheets provide superior mechanical properties and stress corrosion resistance. Coming in multiple thicknesses and sizes, the material is made mostly of chromium, nickel, and copper. SS 15-5 PH Sheet and Plates find extensive usage in aerospace, marine, petrochemical, and industrial fields that demand endurance and dependability.
SS 15-5 PH Sheet and Plates consist of about 14-15.5% Chromium, 3.5-5.5% Nickel, 2.5-4.5% Copper, with traces of Manganese, Silicon, Carbon, Phosphorus, and Sulfur, and the rest is Iron. Mechanically, they have a tensile strength of up to 1310 MPa, yield strength of about 1170 MPa, hardness up to 45 HRC, and elongation of 10-15%. Their physical characteristics are a density of 7.8 g/cm³, thermal conductivity of 18 W/m·K, and an electrical resistivity of 80 µΩ·cm. They are best suited for aerospace, marine, and industrial high-strength, corrosion-resistant applications.
| Specification : | ASTM A564 / ASME SA564 AMS 5643 |
| Standard : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length : | 1 to 6 Meters, Custom Cut Lengths |
| Form : | Round, Square, Hex (A/F), Rectangle Etc. |
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 15-5 PH | 0.07 max | 0.15-0.45 max | 14.0-15.0 max | 2.5-4.5 max | Bal | 1.0 | 3.5-5.5 | 0.04 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 15-5 PH | 161,000 | 140,000 | 7.6% | C35 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat capacity | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.282 | 1.72 | 97 | 0.11 | 0.00000589 | 2560 |
Contact us to get a quick quote for your requirement.

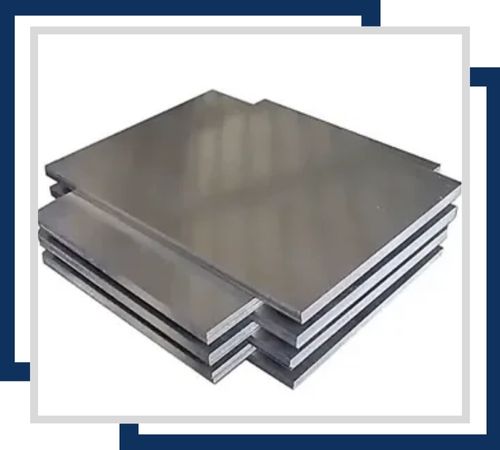

High strength, corrosion resistance and superior mechanical properties, Cold rolled for improved surface finish and tight tolerances. They are commonly used in high-performance applications such as aerospace, chemical processing, and construction materials, providing excellent durability and reliability

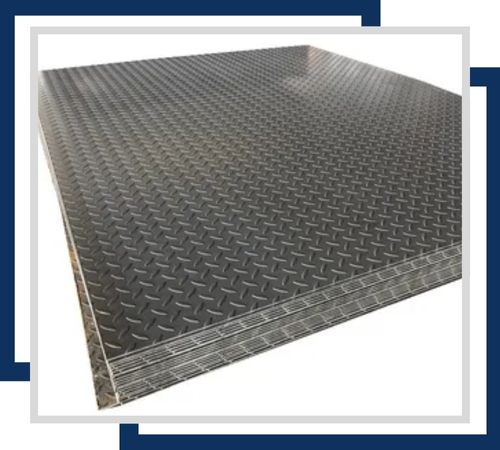

Used in aerospace, marine, and chemical industries for high strength, corrosion resistance. They have excellent mechanical properties, hence provide durability along with resistance to stress corrosion cracking. Chequered plates are textured surface that provides improved grip and anti-slip properties.

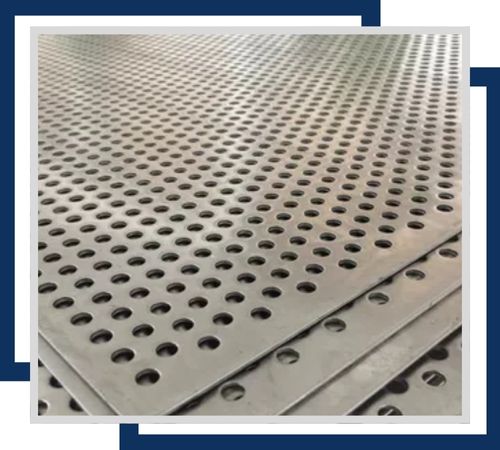

Good precipitation-hardening stainless steel available in sheet and plate form. Such perforated sheets and plates would offer a suitable combination of both strength and function with precise holes as filtration, venting, aesthetic design, retaining excellent mechanical properties.

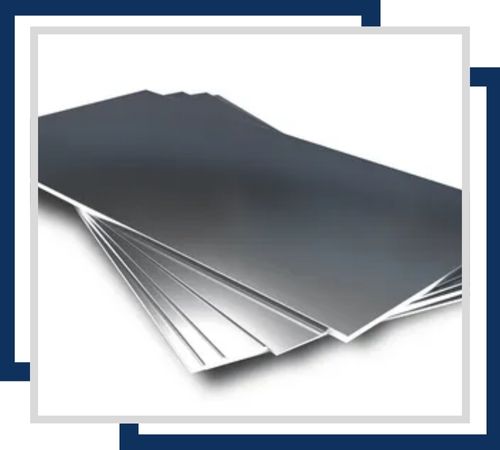

High strength, corrosion resistant stainless steel. Shim sheets of SS 15-5 PH provide uniform thickness, providing excellent dimensional accuracy for gaps and locations in machinery or buildings for widespread applications in air, space, chemical and technology to increase performance.

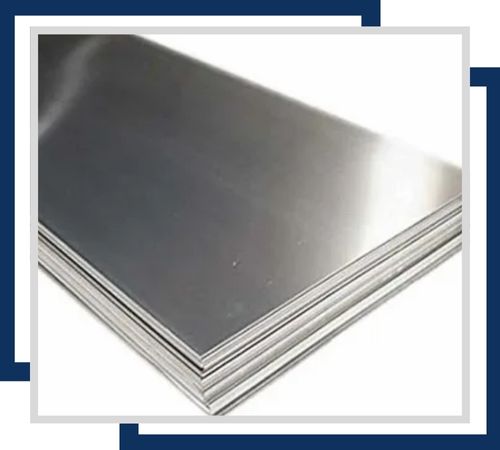

Corrosion-resistant stainless steel with a smooth and luminous surface This plate provides excellent mechanical properties and resistance to compression which is difficult to crack. Commonly used in aerospace, marine and medical applications, they offer functional and aesthetic benefits along with excellent durability.
SS 15-5 PH Sheet and Plates are extensively utilized in high–strength, tough, and corrosion-resistant industries. They are utilized in the aerospace industry for structural parts, landing gear components, and fasteners. The marine sector utilizes them in seawater-resistant shafts, valves, and fittings. They are utilized in the petrochemical and chemical processing industries for pumps, heat exchangers, and pressure vessels. Further, SS 15-5 PH Sheet and Plates are applied in nuclear reactors, medical equipment, and high-performance industrial machinery where high mechanical properties and hardness are necessary.
SS 15-5 PH Sheets and Plates are accompanied by test certificates like Mill Test Certificates (MTC) according to EN 10204 3.1 or 3.2, third-party inspection reports, and other quality assurance reports to guarantee adherence to industry standards. They are packaged securely with wooden crates, pallets, or protective covering to avoid damage during transportation. Safe shipping alternatives are provided for both domestic and international markets to guarantee timely and safe delivery.
