Weston Stainless, Midland, UK is a leading manufacturer and supplier of premium-quality stainless steel products, offering a wide range of industrial fasteners, fittings, sheets, and plates to meet global quality standards. Their Stainless Steel 316Ti Sheets and Plates, made from Grade 316Ti (Titanium Stabilized Stainless Steel), provide exceptional corrosion resistance, high strength, and excellent heat resistance. Available in various shapes such as plain sheets, chequered plates, perforated sheets, and shim plates, these products ensure superior structural support. The 316Ti material offers enhanced durability and resistance to intergranular corrosion, ideal for marine, chemical, and industrial applications.
Stainless Steel 316Ti Sheet and Plates are composed of 16-18% Chromium, 10-14% Nickel, 2-3% Molybdenum, 0.5% Titanium, ≤0.08% Carbon, 2% Manganese, 1% Silicon, 0.045% Phosphorus, and 0.03% Sulfur, providing excellent corrosion resistance, high strength, and heat durability. Their mechanical properties include a tensile strength of 515 MPa, yield strength of 205 MPa, and elongation of 40%, ensuring superior structural performance. The physical properties feature a density of 7.98 g/cm³, melting point of 1370°C, and thermal conductivity of 16.3 W/m·K, making them ideal for high-temperature and corrosive applications.
Specifications : ASTM A240 / ASME SA240
Size : 1/4″ to 4″
Range : 5mm To 150mm
Thickness : 4.0mm – 100mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Mo | |
| SS 316Ti | min. | – | 10.0 | – | – | – | – | – | 16.0 | 2.00 |
| max. | 0.08 | 14.0 | 0.75 | 0.10 | 0.030 | 2.00 | 0.045 | 18.0 | 3.00 |
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 316Ti | 515 | 35 | 205 | 75 | 205 |
Contact us to get a quick quote for your requirement.

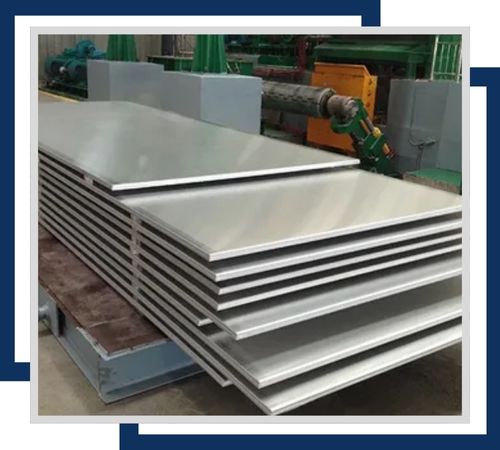

Highly resistant to high temperatures and corrosion, making them suitable for chemical processing and petrochemical industries. They are very durable and can be used in demanding industrial applications.

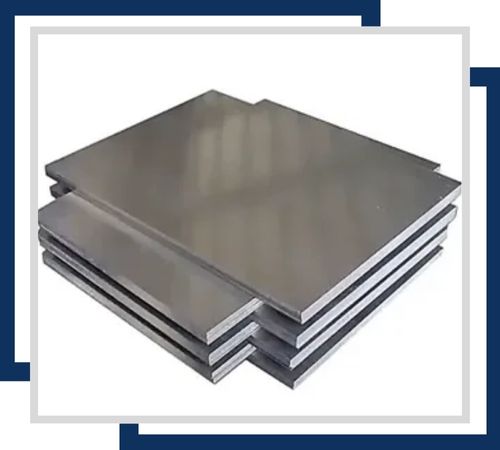

Smooth surface finish and precise dimensions, making them ideal for applications requiring superior resistance to high temperatures and corrosion, such as in marine and chemical environments.

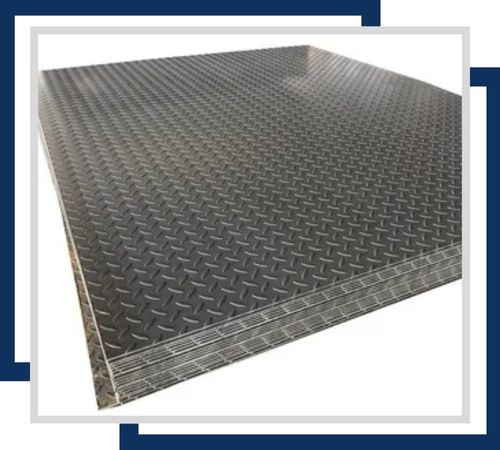

Provided with slip resistance and durability that can be utilized for flooring and stair treads in industrial as well as commercial applications. These provide excellent corrosion resistance and high-temperature stability.

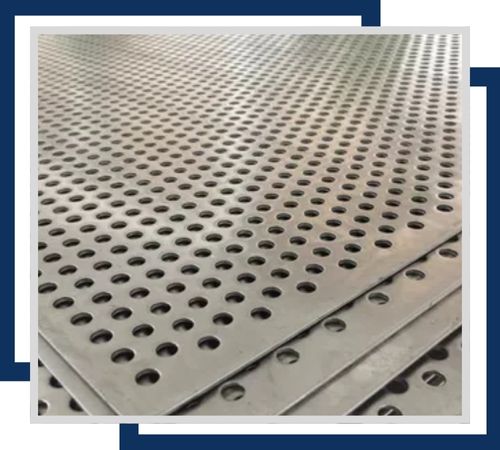

Used for filtration, ventilation, and as decorative purposes. They combine the strength of resistance against corrosion with the aesthetic value while having accurate perforations to add custom design and functionality in extreme environments.

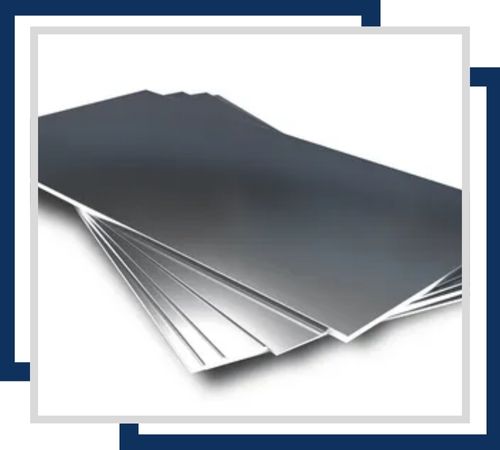

Used in machinery and equipment for precise spacing and alignment. With high-temperature resistance and resistance against corrosion, they provide stability and durability in critical industrial applications.

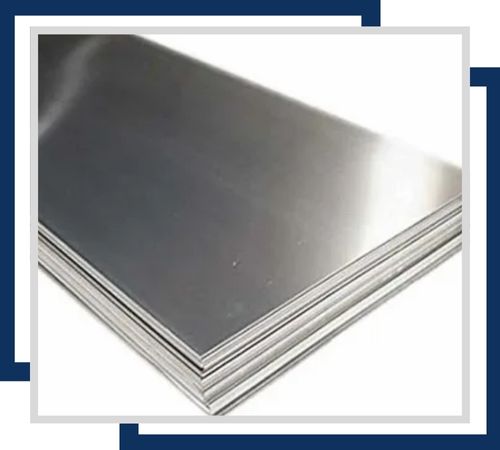

Excellent quality, reflective finish, making them very good for architectural and decorative applications. They have outstanding corrosion and high-temperature resistance, so they provide environment where performance and appearance both are important are worthwhile.
Stainless Steel 316Ti Sheets and Plates are supplied with Mill Test Certificates (MTC) as per EN 10204/3.1B, Raw Material Test Certificates, Third-Party Inspection Reports, and Radiography Test Reports, ensuring high-quality standards and material authenticity. These sheets and plates are securely packed in wooden pallets, plastic wraps, or customized packaging to prevent damage during transit. Timely delivery is guaranteed globally with proper labeling, export documentation, and standard packaging, meeting international shipping standards.
