Home > Sheet and Plates > Stainless Steel 202 Sheet and Plates
Weston Stainless, based in Midland, UK, is a leading supplier of high-quality stainless steel products, providing durable and precision-engineered solutions for various industries. Stainless Steel 202 Sheets and Plates are made from an austenitic chromium-nickel-manganese alloy containing 16-18% chromium, 4-6% nickel, and 7.5-10% manganese, ensuring excellent strength, corrosion resistance, and cost efficiency. Available in different shapes, including perforated, chequered, and plain finishes, these sheets and plates are widely used in construction, automotive, and industrial applications. As a cost-effective alternative to 304 and 316 grades, Stainless Steel 202 sheets and plates provide durability and reliable performance in diverse engineering projects.
Stainless Steel 202 Sheets and Plates contain 16-18% Chromium, 4-6% Nickel, 7.5-10% Manganese, 0.15% Carbon, 1% Silicon, 0.06% Phosphorus, and 0.03% Sulfur. They possess a tensile strength of 515-740 MPa, yield strength of 275 MPa, and 40% elongation to ensure superior mechanical properties. They are physically characterized by a density of 7.80 g/cm³, melting point of 1400-1450°C, and thermal conductivity of 15 W/m·K at 100°C. These characteristics render them robust, resilient, resistant to corrosion, and appropriate for use in construction, automotive, food processing, and industrial manufacturing.
| Item | 202 Stainless Steel Plate (Hot rolled, cold rolled) |
| Standard | JIS, AISI, ASTM, GB, DIN, EN |
| Range | 0.5 mm To 150mm |
| Material | 202 SS Plates / Sheets / Coil |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Thickness | 0.1 to 200 mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Brand | Indian Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Thailand Origin, Taiwan Origin |
| Finish | Hot rolled sheet (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Element | Content (%) |
| Iron, Fe | 68 |
| Chromium, Cr | 17- 19 |
| Manganese, Mn | 7.50-10 |
| Nickel, Ni | 43620 |
| Silicon, Si | ≤ 1 |
| Nitrogen, N | ≤ 0.25 |
| Carbon, C | ≤ 0.15 |
| Phosphorous, P | ≤ 0.060 |
| Sulfur, S | ≤ 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 515 MPa | 74694 psi |
| Yield strength | 275 MPa | 39900 psi |
| Elastic modulus | 207 GPa | 30000 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 40% | 40% |
Contact us to get a quick quote for your requirement.

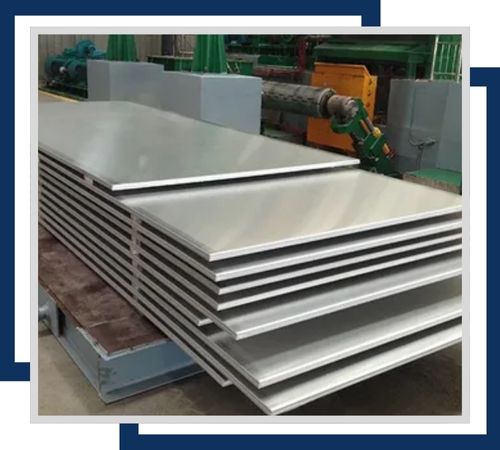

Available in thickness ranges starting from 4mm up to 150mm. The plates are rolled at high temperatures to give them more malleability and to easily form their shape. The product has good resistance to corrosion and is applied in durability and strength-based applications.

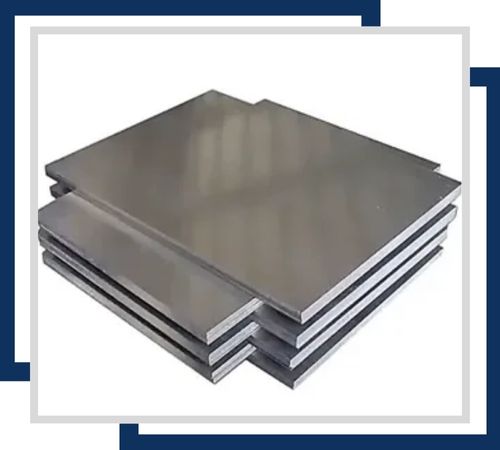

Processed by cold rolling of steel. These are a smoother and closer tolerance plate in comparison with the hot rolled ones. Good resistance to corrosion qualifies them as highly suitable for high precision requirements as well as providing an aesthetic-looking surface finish for applications.

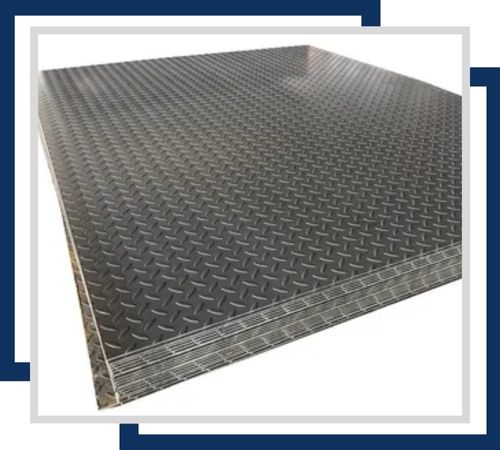

Offered in various thicknesses, from 1.2mm to 8mm. These sheets have a raised pattern, which is slip-resistant and suitable for flooring or walkways. Their inherent corrosion resistance will prove to be long-lasting even in adverse environments.

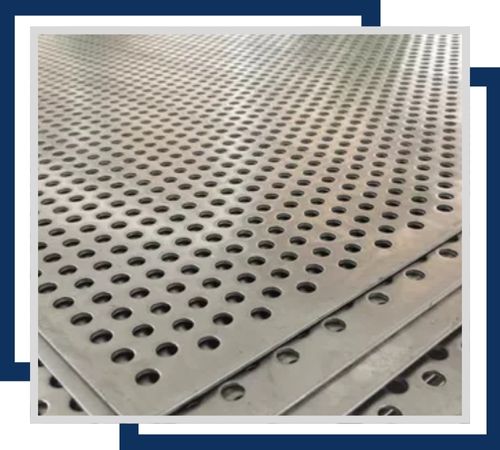

Manufactured in thicknesses ranging from 0.3mm to 8mm and are available in various hole patterns and sizes. These sheets are used for filtration, ventilation, and decorative purposes because of their excellent strength and corrosion resistance. The perforations reduce weight while maintaining structural integrity.

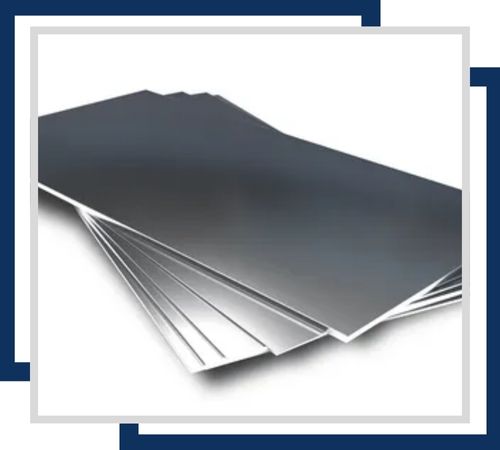

Available in thicknesses from 0.05mm to 3mm. These sheets are precision-engineered for alignment and leveling applications. Excellent corrosion resistance ensures reliable performance in various industrial environments.

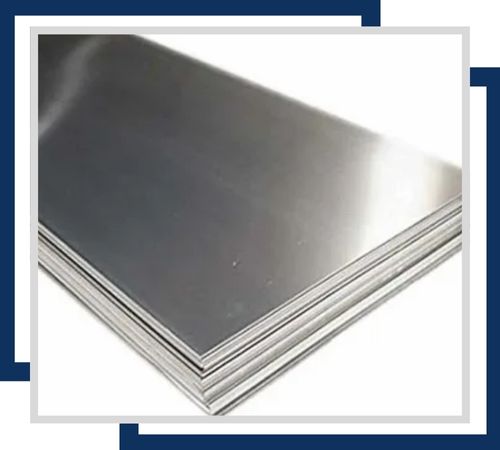

Good corrosion resistance, with excellent reflective appearance. Range from 0.5 to 12 mm thick and are up to 1500 mm x 3000 mm. Use for visual or architectural ends.
Stainless Steel 202 Sheets and Plates find extensive application in industries where they need to be durable, corrosion resistant, and economical. They are used extensively in construction applications such as roofing, wall cladding, and structural members. The automotive sector applies them for car body panels, cosmetics trim, and exhaust systems. They also find application in making kitchen appliances, food processing machinery, storage tanks, railway coaches, and industrial equipment. Their high formability and weldability qualify them to be used in HVAC applications, furniture, and marine. With their low-cost nature as substitutes for 304 and 316 grades, they provide stable performance in diverse commercial and industrial processes.
Stainless Steel 202 Sheets and Plates are furnished with test reports like Mill Test Certificates (MTC) as per EN 10204/3.1, inspection reports from a third party, and material records of traceability to ensure adherence to quality specifications. The materials are packaged tightly with wooden crates, waterproof paper, or shielding plastic sheets in order to guarantee safety during shipment. The items can be sent via air transport, sea cargo, or roadway shipping to avoid damage and time wastage to domestic and worldwide customers.
