Weston Stainless, which is located in Midland, UK, is a reputable supplier and manufacturer of high-quality stainless steel materials, supplying different industries with top–notch material. They deal in SS 465 Sheets and Plates, which are renowned for their exceptional strength, toughness, and corrosion resistance. These sheets and plates are made in Grade 465, a martensitic stainless steel with improved mechanical properties, and they provide exemplary durability. The alloy is mainly made up of chromium, nickel, and molybdenum, which ensures high performance at extreme conditions. SS 465 Sheets and Plates are extensively applied in aerospace, defense, and industrial sectors for applications demanding very high strength and reliability.
SS 465 Sheet and Plates consist of about 11-13% Chromium, 10.5-11.5% Nickel, 0.8-1.2% Molybdenum, traces of Titanium, Carbon, and Manganese, and the rest Iron. Mechanically, they have a tensile strength of up to 1400 MPa, yield strength of about 1240 MPa, and hardness of up to 50 HRC, based on heat treatment. Their physical characteristics are a density of 7.8 g/cm³, thermal conductivity of 19 W/m·K, and an electrical resistivity of 85 µΩ·cm. These characteristics make them suitable for high-stress applications that demand superior strength, corrosion resistance, and durability.
| Standard Specification : | ASTM A240 / ASME SA240 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Fe 74.35% | Cr 11.75% | Ni 11.0% | Ti 1.65% | Mo 2.05% | |||||
| Mn <=0.25% | Si <=0.25% | C <=0.020% | P <=0.015% | N <=0.010% | |||||
| S 0.010% | |||||||||
| Property | Minimum | Maximum | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Yield Strength Range (Rp0.2 Offset) (ksi) | 170 | 270 | |||||||
| Tensile Strength Range (Rm) (ksi) | 190 | 280 | |||||||
| Elongation (AL=5 x Ø) | 2.3% | 14.0% | |||||||
| Brinell Hardness (H) | 271 | 560 | |||||||
| Modulus of Elasticity (ksi) (E): 32000 | |||||||||
| Machineability General Index: Unknown | |||||||||
Contact us to get a quick quote for your requirement.

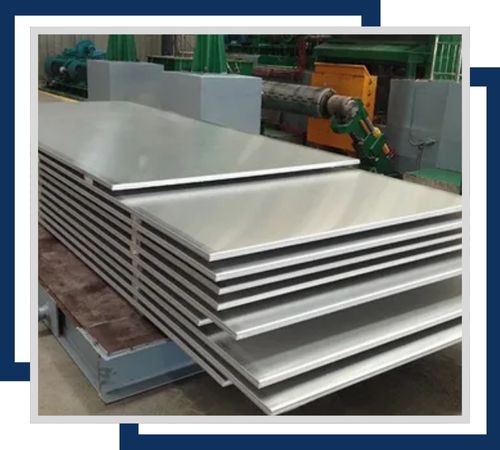

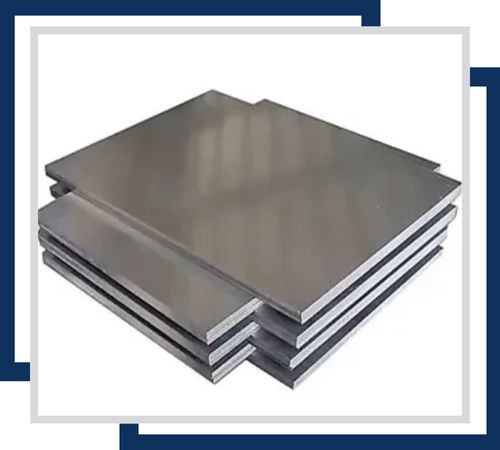

High-quality, and corrosion-resistant steel products that find a diverse application in multiple industries. These sheets are provided in different sizes, having different thicknesses, that range from 0.3mm to 3mm for excellent surface finish, strength, and precision for superior quality and performance in applications.

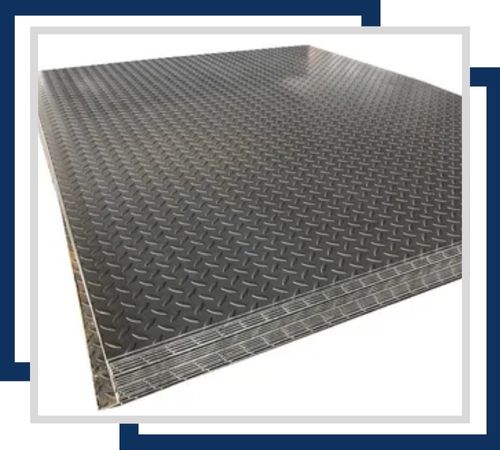

Heavy-duty stainless steel plates that have a raised, textured surface for anti-slip applications. They are widely found in industries where high corrosion resistance and structural strength is at a premium. Available in a wide range of sizes, such as 4×8 feet, custom sizes are also available.

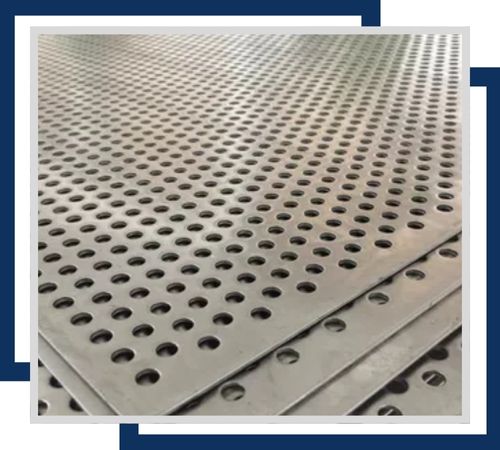

High-quality stainless steel sheets with precision holes to allow for airflow, drainage, and filtration. They are available in a wide range of sizes, usually in terms of thickness, from 0.5mm to 5mm and hole diameters ranging from 1mm to 25mm.

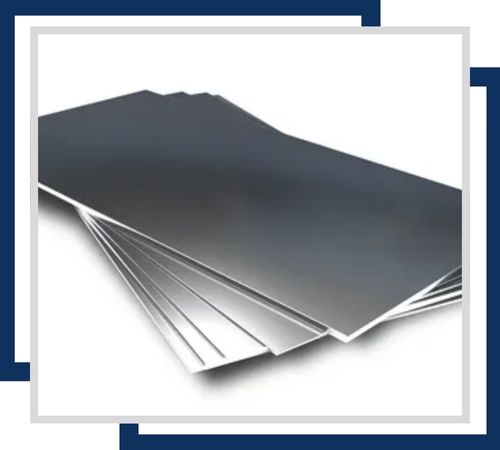

High-quality stainless steel sheets. They are primarily used for applications requiring precise spacing and alignment. The shim sheets are usually offered in thickness ranging from 0.05mm to 1.00mm, and the best corrosion resistance is offered with an excellent durability to be used for critical engineering tasks.

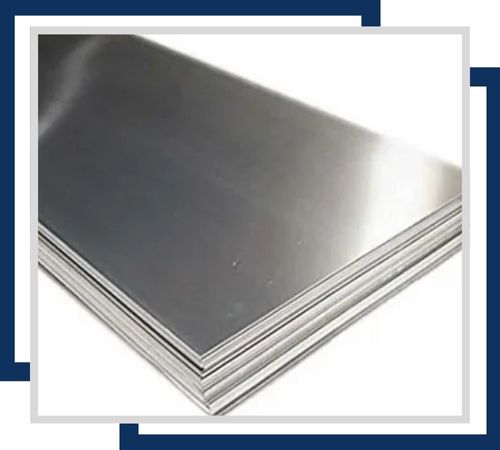

Stainless steel that is very shiny and polished on the surface. They come in various sizes. Generally, their thickness ranges between 3mm and 100mm, widths can be up to 1500mm, and lengths can go up to 6000mm.
SS 465 Plates and Sheets have extensive applications in aerospace, defense, marine, and industrial areas because of their high strength, toughness, and corrosion resistance. They are regularly used in the structural parts of aircraft, landing gear, and high-performance blades of turbines. In the defense industry, they are employed in ballistic armor as well as for weapon parts. They also find use in chemical processing equipment, pressure vessels, and mechanical components of high-stress. Their high mechanical properties render them suitable for high-strength applications in industries that need materials that can handle extreme conditions and rigorous operating environments.
SS 465 Sheets and Plates are supplied with test certificates like Mill Test Certificates (MTC) in accordance with EN 10204 3.1 or 3.2, third-party inspection reports, and other quality documents to certify adherence to industry standards. They are packaged safely with wooden crates, pallets, or protective wrapping to protect them from damage during transportation. Delivery is made efficiently, and reliable shipping means are available for both domestic and overseas markets to guarantee timely supply.
