Weston Stainless is a leading manufacturer and supplier of premium quality stainless steel products in Midland, UK. The company offers a wide variety of precision-engineered products to various industries. Weston Stainless specialises in SS 418 Plates and Sheets that are extremely strong, resistant to heat and corrosion. These plates and sheets are produced in Grade 418, which is martensitic stainless steel. These sheets and plates have excellent mechanical properties, oxidation resistance, and wear resistance. Made largely of chromium, nickel, and molybdenum, they are supplied in diverse thicknesses and shapes. SS 418 Sheets and Plates are commonly applied in aerospace, marine, power generation, and high-temperature industrial usage where durability and performance are needed.
SS 418 Sheet and Plates consist of about 12-14% Chromium, 0.15-0.20% Carbon, 1.5-2.5% Nickel, 0.5-1% Molybdenum, up to 1% Manganese, 0.5-1% Silicon, and traces of Phosphorus and Sulfur, with the balance being Iron. They are mechanically having a tensile strength of about 760-965 MPa, yield strength of about 450 MPa, hardness up to 45 HRC, and elongation of 15-20%. Their physical characteristics are a density of 7.75 g/cm³, thermal conductivity of 25 W/m·K, and an electrical resistivity of 600 nΩ·m, which makes them suitable for high-temperature and high-strength applications.
| Specifications : | ASTM B441 / ASME SB196 |
| Dimensions : | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, IS & Custom Chemistry |
| Production Route : | Hot Rolled, Cold Rolled |
| Size : | Width from 100mm to 3000mm ; Length from 500mm to 12000mm |
| Thickness : | 0.1mm to 400mm |
| Delivery Condition : | As Rolled, Annealed, Quenched and Tempered, Normalized |
| Surface Finish : | Plain, Brushed, Cladded |
| Element | Content (%) |
| Iron, Fe | 82 |
| Chromium, Cr | 13 |
| Tungsten, W | 3 |
| Nickel, Ni | 2 |
| Properties | Metric | Imperial |
| Tensile strength | 895 MPa | 130000 psi |
| Yield strength (@strain 0.200 %) | 725 MPa | 105000 psi |
| Modulus of elasticity | 190-210 GPa | 27557- 30457 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 15% | 15% |
| Hardness, Rockwell C | 25 | 25 |
| Density(lb/ft3) | Electrical conductivity(% IACS) | Thermal conductivity(BTU/h-ft-°F) | Specific heat capacity(BTU/lb-°F) | Thermal expansion(µm/m-K) |
| 500 | 2.8% | 15 | 470 | 10 |
Contact us to get a quick quote for your requirement.

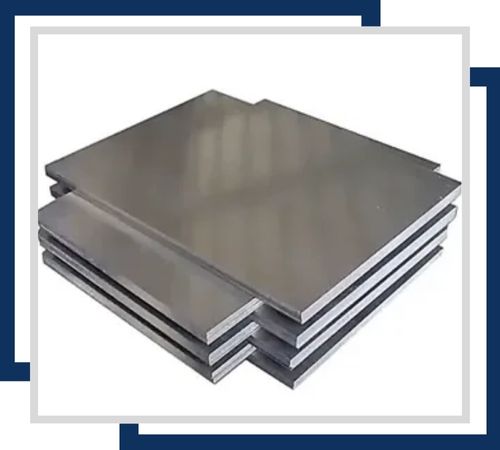

Excellent strength, durability, and smooth surface finish. Sheets are available in different sizes and usually vary between 0.3mm and 6mm in thickness with widths and lengths according to individual industrial requirements.

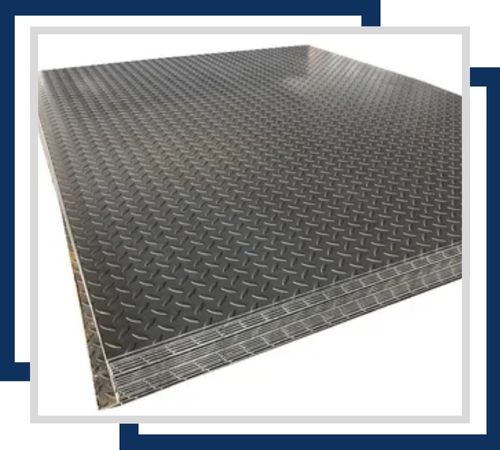

High-quality stainless steel plates with a textured, non-slip surface, ideal for heavy-duty applications requiring durability and traction. The plates are available in sizes from 1mm to 10mm in thickness, with standard lengths and widths.

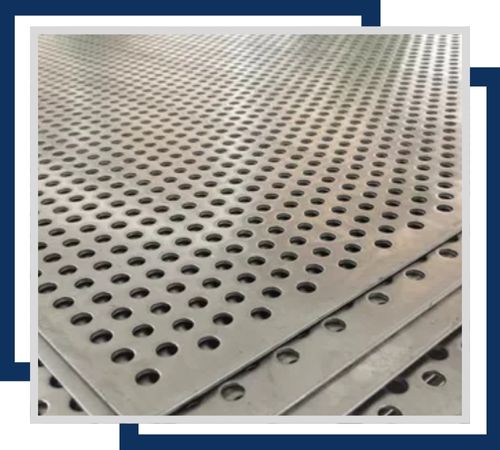

Top quality stainless steel sheets which have precise perforations and have industrial applications. It is also available in standard sizes in a thickness of 0.5 mm to 6 mm and hole diameter ranges from 1 mm to 25 mm for great strength and flexibility.

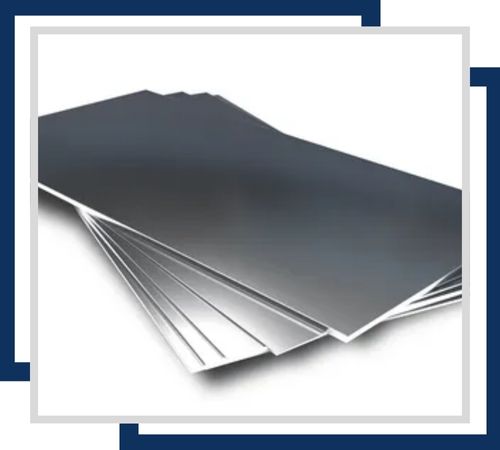

Precision-engineered stainless steel sheets. They have used gap-filling, alignment, and leveling applications. These are available in sizes varying from 0.05mm to 5mm in thickness and even customized with respect to length and width. They offer excellent corrosion resistance and durability for industrial use.

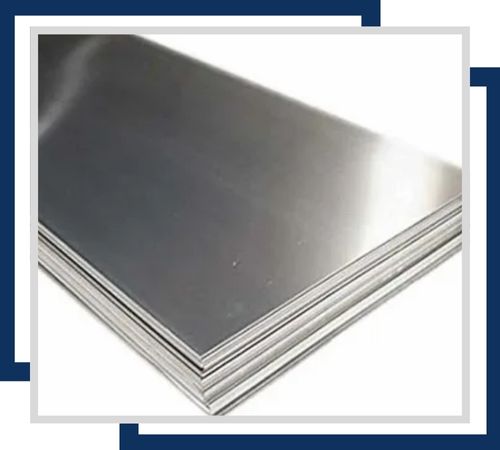

Finished stainless steel product with excellent resistance to corrosion in the form of a polished product. Plates made from this steel are available in different sizes-from 4′ x 8′ standard commercial sizes to highly customized dimensions designed for multiple industries and architectural features.
SS 418 Sheets and Plates are commonly used in industries that require high strength, heat resistance, and corrosion resistance. In the aerospace industry, they are used for turbine parts, exhaust systems, and structural components that are subject to high temperatures. They are used in shafts, valves, and propeller components by the marine industry because of their resistance to harsh conditions. They are used in power generation for boilers and heat exchangers as well. Moreover, SS 418 Sheet and Plates are also used in the chemical and petrochemical processes, automobile exhaust systems, and industrial equipment where wear resistance and oxidation resistance are essential.
SS 418 Sheets and Plates are accompanied by test certificates like Mill Test Certificates (MTC) according to EN 10204 3.1 or 3.2, third-party inspection reports, and other assurance of quality documents to meet industry requirements. They are packaged securely in wooden crates, pallets, or protective wrapping to avoid damage during transportation. Secure shipping facilities are available for domestic as well as international trade to guarantee timely and safe delivery.
