Weston Stainless of Midland, UK is a reliable supplier and producer of high-quality stainless steel products to various industries with excellent material. The company is specialized in SS 415 Sheet and Plates that are highly resistant in strength and hardness along with moderate corrosion resistance. These sheets and plates are produced in Grade 415, which is martensitic stainless steel, having good mechanical properties and wear resistance. Coming in various thicknesses and sizes, the material is mostly made up of chromium with traces of manganese, silicon, and carbon. SS 415 Sheet and Plates are commonly used in industrial, automotive, and tooling applications where strength and toughness are needed.
SS 415 Sheet and Plates consist of about 11.5-13.5% Chromium, 0.75-1.5% Manganese, up to 1% Silicon, 0.03% Phosphorus, 0.03% Sulfur, and 0.21-0.26% Carbon, with the balance being Iron. Mechanically, they possess tensile strength of about 515-1035 MPa, yield strength of about 275 MPa, hardness of up to 45 HRC, and elongation of 20%. Their physical properties consist of a density of 7.7 g/cm³, a thermal conductivity of 24 W/m·K, and an electrical resistivity of 570 nΩ·m. These properties render them suitable for high-strength applications that demand good wear and corrosion resistance.
| Specifications : | ASTM A240 / ASME SA240 |
| Dimensions : | ASTM, ASME and API |
| Standard : | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Surface : | 2B, 2D, BA, NO.4, NO.8, 8K, Mirror,Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,etc. |
| Finish : | Black,Bright Polished,Rough Turned,No.4 Finish,Matt Finish,BA Finish |
| Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc. |
| Grade | C | Mn | P | S | Si | Ch | Ni | Mo |
| SS 415 | 0.05 max | 0.50-1.00 | 0.030 max | 0.030 max | 0.60 max | 11.5-14.0 | 3.5-5.5 | 0.50-1.00 |
| Tensile Strength R₃ N/mm² | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 |
| 0.2% Offset Yield Strength Rᵖ ≥N/mm² | 520 | 520 | 520 | 520 | 520 | 520 | 520 |
| Elongation in 2 inches, % | 15 min | 15 min | 15 min | 15 min | 15 min | 15 min | 15 min |
| Grade | Density lbm/in3 | Melting Range(°F) | Thermal Conductivity(BTU-in/hr- ft. °F) | Electrical Resistivity(in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/°F x 10-6 | Specific Heat(BTU/lb/°F) |
|---|---|---|---|---|---|---|---|
| 415 | -at 68°F: 0.280 | 2700 to 2790 | 187 at 212°F | 23.7 at 68°F | 29 | 6.0 at 32 – 212°F | 0.11 at 68°F to 212°F |
| – | – | – | – | – | 7.5 at 68 – 1200°F | – |
Contact us to get a quick quote for your requirement.

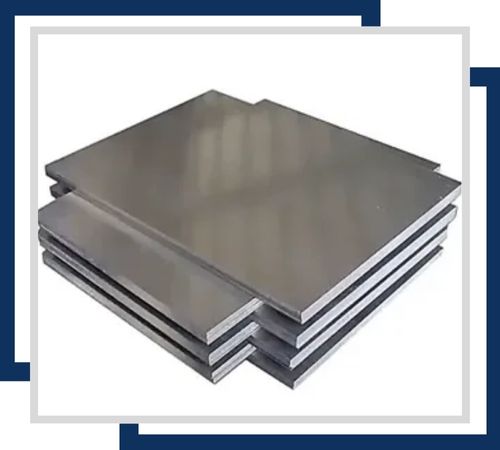

High strength, and excellent durability. Sheets available in various sizes between 0.3 mm to 3.0 mm thickness range and from 1000 mm to 2000 mm width with suitable applications.

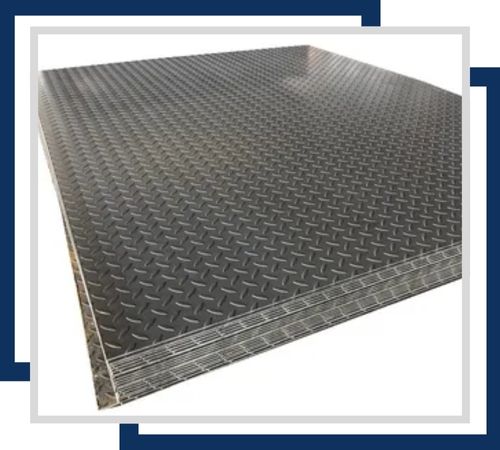

Textured patterns on them for maximum slip resistance and strength. It is available in various thicknesses and sizes, and it finds its application as a flooring or ramp material as well as an industrial application in the form of excellent corrosion resistance and aesthetic value.

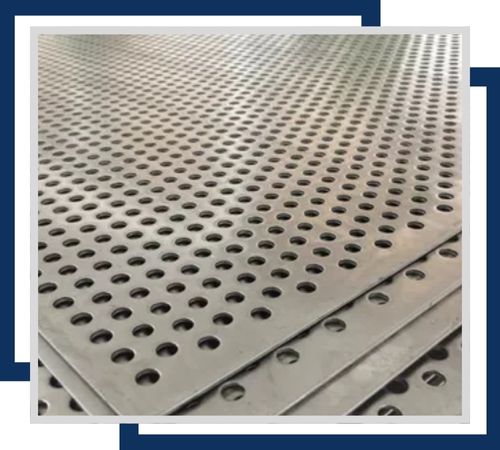

High-quality stainless steel sheets designed with precise holes to provide better ventilation, filtration, and strength. The plates can be available in a variety of sizes, with the standard being 4′ x 8′, or as custom sizes depending on the particular application in industries.

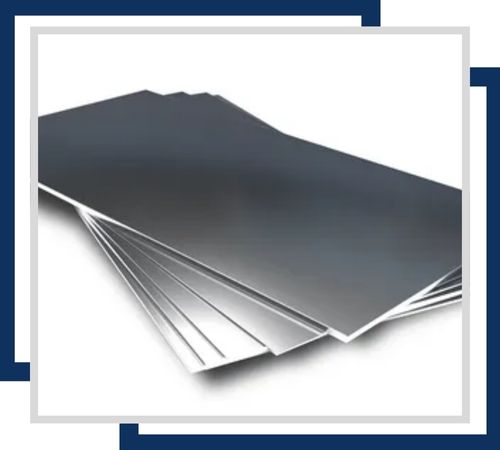

These have excellent corrosion resistance and strength with sizes ranging from 0.05mm to 5mm thickness and various lengths and widths, which can be customized according to the specific need.

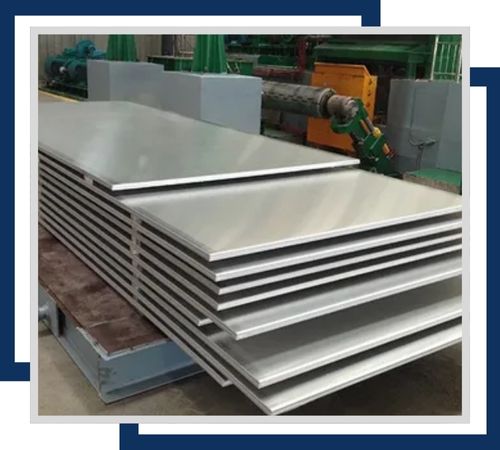

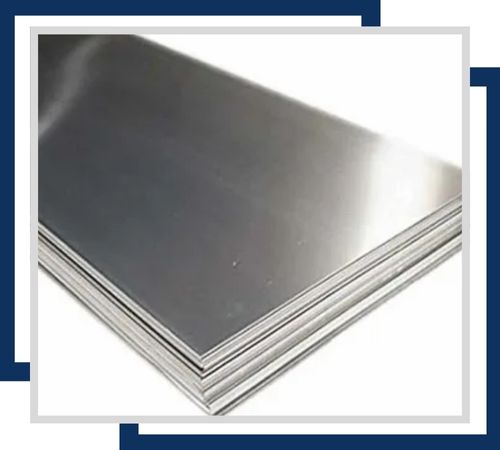

Corrosion resistance, strength, and shine. The SS 415 plates vary in different sizes, normally in the thickness between 0.5mm and 50mm. The product is available in any length and width as per the needs of various industrial applications.
SS 415 Sheet and Plates have extensive application in high–strength, hardness, and moderate corrosion-resistant applications. They are also used generally in the automobile sector for parts like shafts, axles, and gears because of their wear resistance. In the industrial sector, they are utilized for pump shafts, fasteners, and machine components subjected to high mechanical stress. The defense and aerospace sectors use SS 415 in structural parts where durability and toughness are needed. The sheets and plates are also used in tooling, surgical instruments, and cutlery where hardness and performance are paramount.
SS 415 Plates and Sheets are supplied with test certificates like Mill Test Certificates (MTC) according to EN 10204 3.1 or 3.2, third-party inspection certificates, and other quality documents for assurance of adherence to industry standards. They are packaged securely with wooden crates, pallets, or protective coverings to avoid damage during transit. Safe and reliable shipping solutions are provided for both domestic and overseas markets to ensure safe and timely delivery.
