Home > Sheet and Plates > Stainless Steel 316/316L Sheet and Plates
Weston Stainless, based in Midland, UK, is a trusted manufacturer and supplier of high-quality stainless steel products, catering to various industrial sectors globally. Their Stainless Steel 316/316L Sheet and Plates are manufactured using Grade 316 (Austenitic Stainless Steel) and Grade 316L (Low Carbon Stainless Steel), offering excellent corrosion resistance, high strength, and durability. Available in various shapes such as sheets, plates, coils, and strips, these products are ideal for high-pressure and corrosive environments. The 316/316L material composition ensures resistance to oxidation, pitting, and crevice corrosion, making them suitable for marine, chemical, and industrial applications.
Stainless Steel 316/316L Sheet and Plates are composed of Carbon (≤0.08% for 316, ≤0.03% for 316L), Manganese (≤2.00%), Silicon (≤0.75%), Phosphorus (≤0.045%), Sulfur (≤0.03%), Chromium (16.0-18.0%), Nickel (10.0-14.0%), Molybdenum (2.0-3.0%), and balance Iron, ensuring superior corrosion resistance and high durability. The mechanical properties include a Tensile Strength of 515 MPa (min), Yield Strength of 205 MPa (min), Elongation of 35% (min), and Hardness of 217 HB max. Physical properties feature a density of 8.0 g/cm³, melting point of 1370°C – 1400°C, and thermal conductivity of 16.2 W/m·K at 100°C, ideal for industrial and marine applications.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|
316 |
Min |
– |
– |
– |
0 |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.08 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
|
316L |
Min |
– |
– |
– |
– |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
ade |
Tensile Str
(MPa) min |
Yield Str
0.2% Proof
(MPa) min |
Elong
(% in 50mm) min |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
|
316 |
515 |
205 |
40 |
95 |
217 |
|
316L |
485 |
170 |
40 |
95 |
217 |
Contact us to get a quick quote for your requirement.

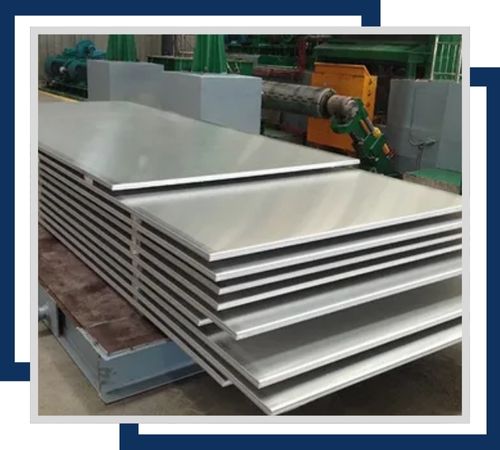

Great plates for numerous applications due to excellent corrosion resistance. The hot rolled plates available vary in size, from 4mm up to 150mm in thickness, and from 2000mm in width.

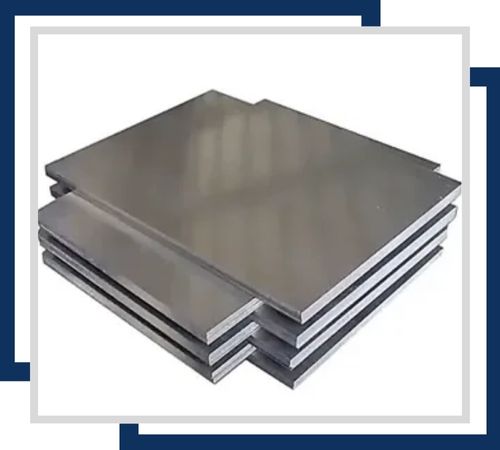

High corrosion resistance. The sheets come in thickness from 0.3mm to 6mm and width up to 2000mm. These sheets offer a smooth finish and are used in applications where precision and aesthetic appeal are required.

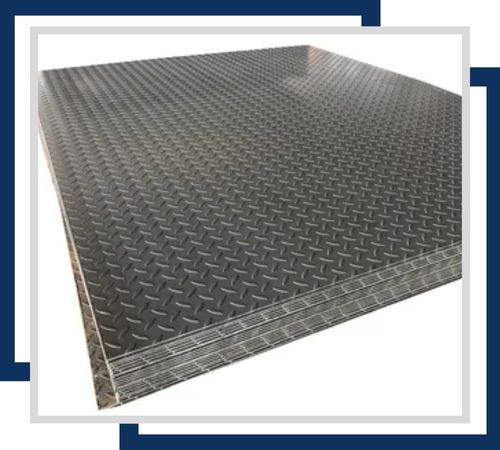

Diamond pattern that gives it a better grip and less slipping. The thicknesses of the sheets are from 3mm to 8mm, and sizes are up to 1500mm x 3000mm for flooring and walkways.

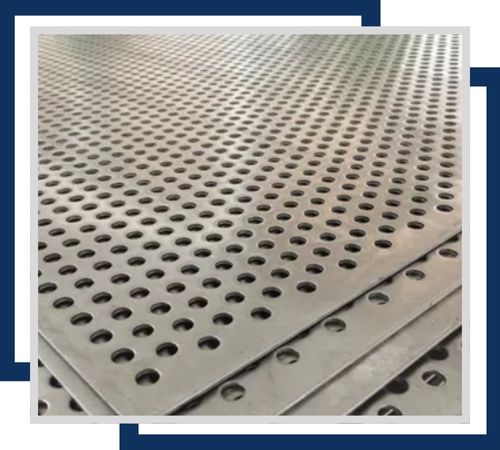

Superior corrosion resistance. The products are available in different thicknesses of 0.4mm to 12mm with a range of hole sizes and patterns, suitable for several industrial applications in filtration and ventilation.

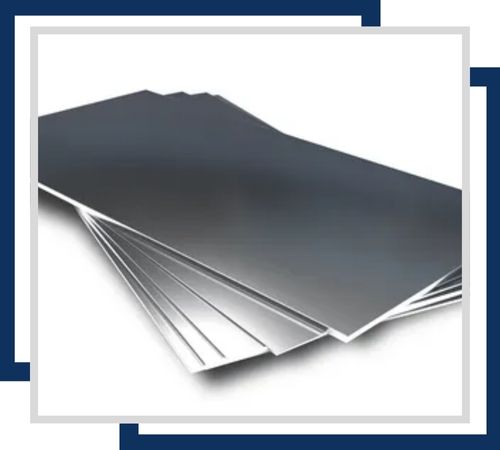

Very thin material, very sharp, corrosion resisting, with many applications for spacers and other alignment needs in machinery and structurals from 0.05mm up to 3mm with cut options by specific size or width.

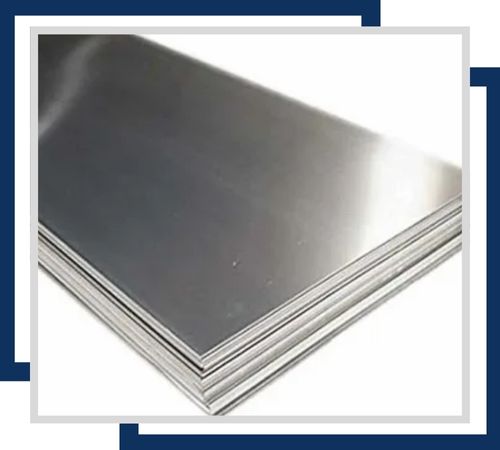

High corrosion resistance along with a bright mirror finish. The plates come in a variety of thickness, from 0.5mm to 50mm, and sizes up to 2000mm x 6000mm for decorative purposes, architectural applications, and other heavy industrial uses.
Stainless Steel 316/316L Sheet and Plates are widely used in marine, chemical, petrochemical, and offshore industries due to their excellent corrosion and oxidation resistance. They are ideal for fabricating pressure vessels, heat exchangers, storage tanks, and pipelines in high-temperature and high-pressure environments. Commonly used in food processing, pharmaceutical, and beverage industries, these sheets and plates ensure hygienic and contamination-free operations. Additionally, they are suitable for construction, power generation, shipbuilding, and water treatment plants, offering high strength, durability, and resistance to pitting and crevice corrosion.
