Weston Stainless, Midland, UK, is a reliable manufacturer of stainless steel products of the highest quality, providing an extensive variety of industrial materials with high precision engineering and excellent durability. Among its superior products, Stainless Steel 17-7 PH Sheet and Plates are renowned for their superior strength, corrosion resistance, and hardness. These plates and sheets, which are produced from Grade 17-7 PH stainless steel, come in different shapes and sizes to suit aerospace, marine, and chemical industries. Produced through a precipitation-hardening process, they exhibit excellent mechanical properties and stability in harsh environments, making them suitable for high-performance applications.
Stainless Steel 17-7 PH Sheets and Plates contain a composition of about 17% Chromium, 7% Nickel, 1.1% Aluminum, with traces of Carbon, Manganese, Silicon, and Phosphorus. Mechanically, they possess a tensile strength of up to 1034 MPa, yield strength of about 724 MPa, with elongation of 6-10%, having excellent fatigue properties. Physically, they possess a density of 7.8 g/cm³, melting point of 1400°C, and good heat conductance. These characteristics render them extremely resistant, corrosion-proof, and suitable for high–strength, toughness, and oxidation-resistant applications in harsh environments.
| Element | Content (%) |
|---|---|
| Chromium, Cr | 16-18 |
| Nickel, Ni | 6.50 – 7.75 |
| Manganese, Mn | 1 max |
| Silicon, Si | 1 max |
| Aluminum, Al | 0.75 – 1.50 |
| Carbon, C | 0.09 max |
| Phosphorous, P | 0.040 max |
| Sulfur, S | 0.030 max |
| Iron, Fe | Balance |
| Property | 17-7PH ≤ 0.010 inch thick | 17-7PH > 0.010 inch thick |
|---|---|---|
| Yield Strength, min. (ksi) | 65 | 55 |
| Tensile Strength, min. (ksi) | 150 | 150 |
| Elongation, min. (%) | – | 20 |
| Hardness, max. (Rb) | – | 92 |
Contact us to get a quick quote for your requirement.

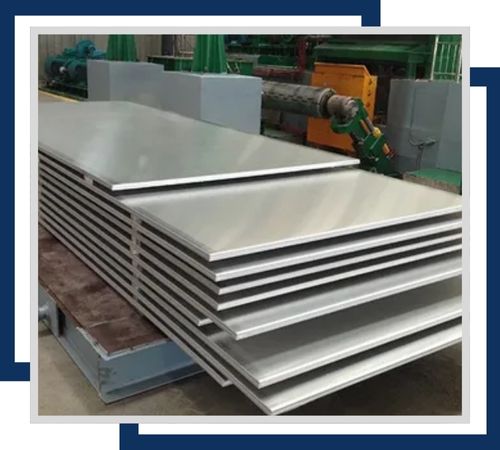

Characterized by excellent strength and hardness. Available in a range of sizes and thicknesses from 3mm to 120mm, the plates have good corrosion resistance and can be used under high-stress conditions.

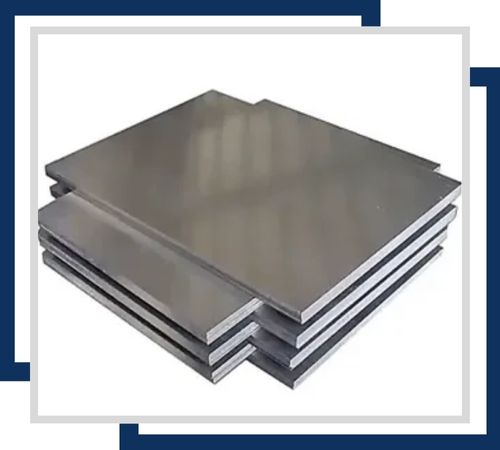

Very smooth surface finish and high precision. These sheets are available in a range of thickness from 0.2mm to 6mm. The sheets possess excellent corrosion resistance and are useful for applications that require tight tolerances.

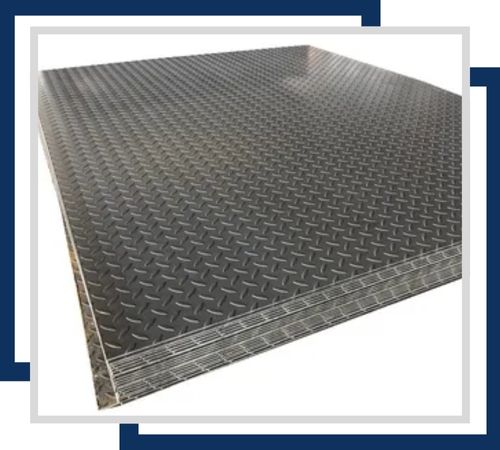

A raised pattern that increases the grip and safety. It is commercially available from 2mm to 12mm in thicknesses. It is applied in flooring and other anti-skid applications. Their good corrosion resistance suits them well for both industrial and marine environments.

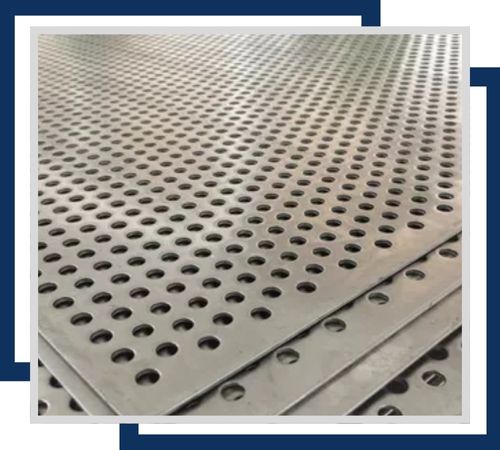

Many hole sizes and patterns for various filtration and ventilation applications. They are typically in the thickness of 0.3mm to 3mm. Corrosion resistance allows these sheets to be long-lasting in all uses.

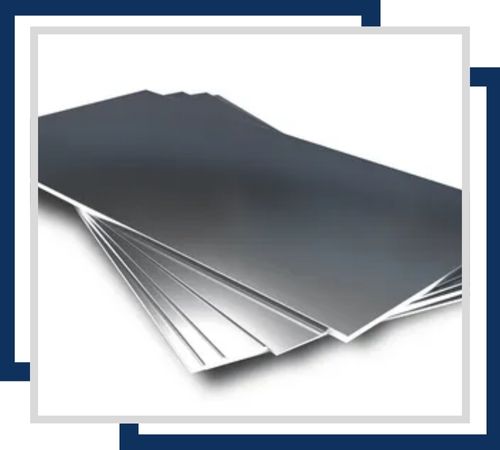

A thin, precision-cut sheet for spacing and alignment in machinery. It is available in 0.05mm to 3mm thicknesses, giving excellent corrosion resistance. Its sheets ensure reliable performance in very demanding mechanical environments.

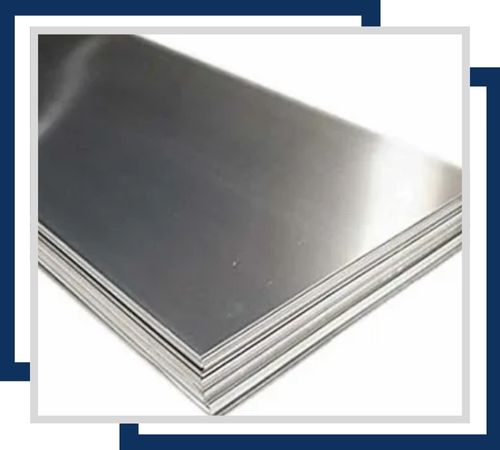

A bright polish finish. They come in thickness from 3mm up to 100mm. These plates exhibit strong corrosion resistance. They are good for decorative and sanitary applications.
Stainless Steel 17-7 PH Sheets and Plates find extensive application in aerospace, chemical processing, marine, and automotive sectors on account of their superior strength, corrosion resistance, and heat treatability. They are best suited for the fabrication of aircraft components, springs, washers, diaphragms, and high-performance structural parts. They also find application in pressure vessels, heat exchangers, and other industrial uses that demand endurance and oxidation resistance. Their high mechanical strength and suitability for enduring rugged conditions render them a sought-after option for usage in oil and gas, military, and the production of medical equipment.
Stainless Steel 17-7 PH Plate and Sheets have test certificates in the form of Mill Test Certificates (MTC) to EN 10204/3.1B, third-party inspection certificates, and traceable material records providing assurance for quality and conformance. The Sheet and Plates are carefully wrapped with plastic and packing paper or bagged for better protection in case of stacking on each other before final shipment by trusted logistic organizations, assuring safe delivery with punctuality for both national and international shipments.
