Weston Stainless is a midland UK-based company that leads in the production and supply of premium stainless steel products. With an abiding passion for precision strength and innovation Weston Stainless excels in manufacturing stainless steel mechanical tubing to meet the needs of various industries such as the automotive construction and engineering sectors. Our mechanical tubing is renowned for its superior strength, corrosion resistance and high-quality finish which makes it suitable for both structural and mechanical uses. Supported by years of experience and a customer-centric strategy, Weston Stainless continues to provide dependable solutions that exceed the highest standards of performance and quality.
Stainless steel mechanical tubing is made mostly of iron, with added chromium (usually 10.5% or greater) to increase corrosion resistance, plus different amounts of nickel, molybdenum, manganese and carbon to provide optimal strength and durability. The tubes have outstanding mechanical properties such as high tensile strength, good ductility and toughness and are well-suited for rigorous structural and mechanical uses. They show excellent resistance to corrosion, heat and oxidation, particularly in severe environments. Stainless steel tubes retain their integrity under pressure and mechanical stress, providing extended service life and minimal maintenance. Typical grades are 304, 316 and 410, each designed for particular applications.
|
Dimensions |
: |
ASTM, ASME and API |
|
Standard |
: |
ASTM / ASME SA213 |
|
Size |
: |
1/8″NB TO 30″NB IN |
|
Specialized in |
: |
Large Diameter Size |
|
Schedule |
: |
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
|
Form |
: |
Round, Square, Rectangular, Hydraulic Etc |
|
Type |
: |
Seamless |
|
Length |
: |
Single Random, Double Random & Cut Length. |
|
End |
: |
Plain End, Beveled End, Threaded |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | 0.10 max |
SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 | – |
SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 0.10 max |
SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | – |
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
SS 304 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 904L | 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.
We provide thorough testing and certification of stainless steel mechanical tubing to provide top-quality and performance. Every tube undergoes careful examinations, such as dimensional precision, mechanical strength, and surface integrity. Our certifications, like Mill Test Reports (MTR) and adherence to global standards, ensure dependability and promote customer trust in various industries.

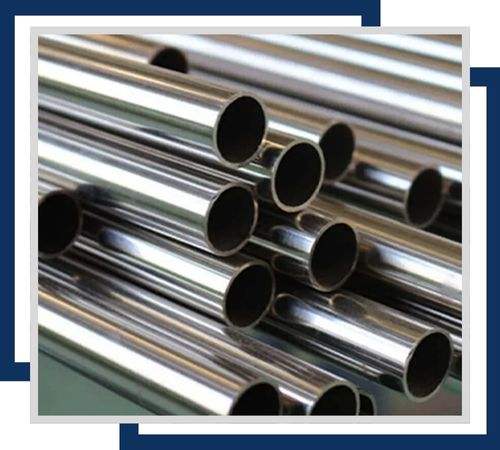

Stainless steel mechanical tubing is a high-strength, corrosion-resistant tube used in various industrial applications. It provides structural support, durability, and reliability in demanding environments, including aerospace, automotive, and chemical industries.

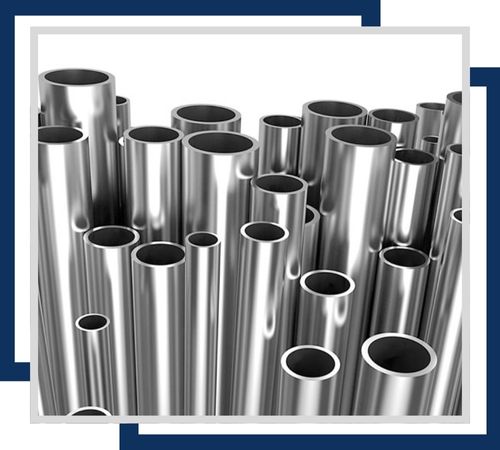

Alloy steel mechanical tubing is a high-strength, durable tube made from alloyed steel, designed for demanding applications. It offers enhanced properties like improved toughness and resistance to high temperatures and stress.

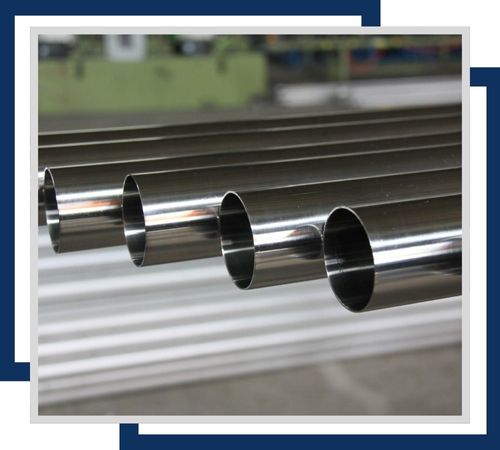

Aluminum mechanical tubing is a lightweight, corrosion-resistant tube used in various applications. It provides strength and durability while being easy to fabricate, making it ideal for aerospace, automotive, and structural uses.

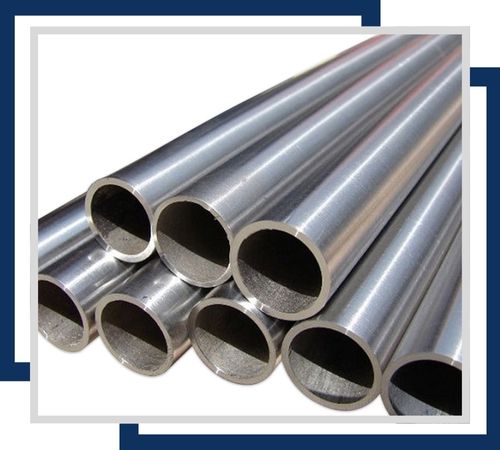

Cold drawn mechanical tubing is produced by drawing metal through a die at room temperature, enhancing its dimensional accuracy, surface finish, and mechanical properties, making it ideal for precision engineering and high-stress applications.

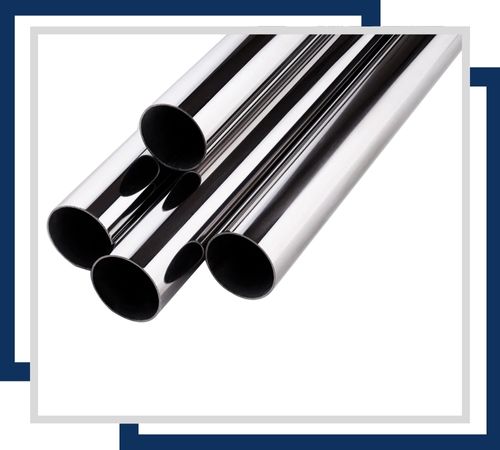

Heat-treated mechanical tubing is metal tubing that has undergone controlled heating and cooling processes to enhance its strength, hardness, and wear resistance, making it suitable for high-stress and high-performance applications.

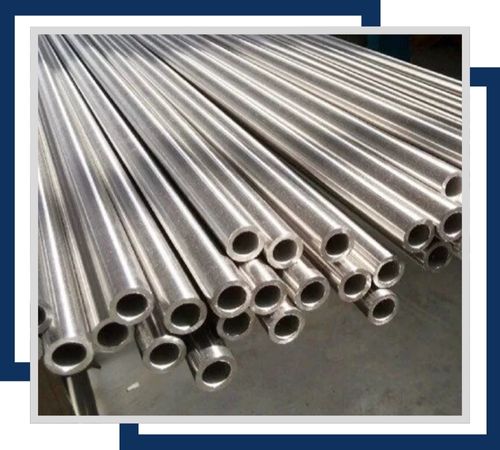

Seamless mechanical tubing is a type of tubing manufactured without welded seams, offering uniform strength and reliability. It’s used in high-pressure and critical applications due to its consistent performance and durability.
Stainless steel mechanical tubing is commonly utilized in all industries because it is strong, resistant to corrosion and accurate. In automotive, it is applied for drive shafts, fuel pipes and suspension systems. In construction, it holds up frameworks and architectural pieces. The aerospace industry uses it for structural parts and hydraulic equipment. It is also required in manufacturing machinery medical tools and food processing machinery because of its hygiene factor. Also, stainless steel tubing finds applications in the marine environment where it must be able to withstand corrosion from seawater. It is strong, versatile and visually appealing, making it a favorite for both functional and design uses.
