Weston Stainless, which is located in Midland, UK, is a reliable source of high-grade stainless steel products to construction, aerospace, and manufacturing industries. Among its high-end products, Stainless Steel 253Ma Tubing finds special appreciation for its superior high-temperature strength and resistance to oxidation. Produced in Grade 253Ma, this tubing can come in different shapes and sizes, such as round, square, and rectangular shapes, for accommodating different industrial needs. Produced from high–chromium, nickel, and silicon-containing heat-resistant austenitic stainless steel, 253Ma tubing provides superior mechanical performance and durability and is best suited for furnace parts, heat exchangers, and severe thermal conditions.
Stainless Steel 253Ma Tubing contains Chromium (20-22%), Nickel (10-12%), Silicon (1.4-2%), Nitrogen (0.14-0.2%), Carbon (0.05-0.10%), and minor amounts of Cerium for improved oxidation resistance. It has a tensile strength of ≥600 MPa, yield strength of ≥310 MPa, and elongation of ≥40%, providing superior endurance in high-temperature conditions. The physical characteristics are a density of 7.8 g/cm³, thermal conductivity of 15 W/m·K, and a melting point of about 1420°C. These characteristics render 253Ma tubing as the best for use in extreme temperature applications where high strength, oxidation resistance, and structural integrity are needed.
253 MA Pipe Specification : ASTM A312, A358 / ASME SA312, SA358
253 MA Tube Specification : ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554
253 MA Pipe Size : 1/8” NB to 24” NB, 1/4” OD to 24” OD sizes.
253 MA Tube Size : 1/2″ OD to 8″ OD.
Thickness Range : 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Outside Finish : 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements
Delivery Condition : Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| Grade | C | Mn | Si | S | P | Fe | Ni | Cr | Ce | N |
|---|---|---|---|---|---|---|---|---|---|---|
| 253 MA | 0.10 max | 0.80 max | 2.0 max | 2.0 max | 0.04 max | Bal | 10.0 – 12.0 | 20.0 – 22.0 | 0.03 – 0.08 | 0.14 – 0.20 |
| Element | Density | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness |
|---|---|---|---|---|---|
| 253 MA | 7.8 g/cm3 | 600 | 40 | 310 | HR B – 95, HB – 217 |
Contact us to get a quick quote for your requirement.
Stainless Steel 253Ma Tubing has extensive applications in high-temperature environments owing to its remarkable oxidation resistance and mechanical properties. It is also predominantly used in furnace parts, heat exchangers, boiler pipes, and kiln linings. The petrochemical and power plants depend on it for burners, superheater pipes, and refinery plant equipment. It is also utilized in cement manufacturing, incinerators, and thermal processing facilities where it provides extreme heat resistance. With excellent durability and corrosion resistance, 253Ma tubing is best suited to applications that face aggressive environments, high thermal stress, and severe industrial conditions needing long-term performance.

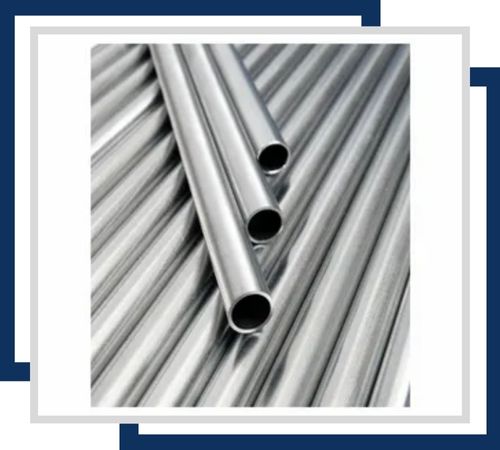

Available in various sizes, including diameters from 1/8″ to 12″ and lengths up to 24 feet. This tubing offers exceptional corrosion resistance and strength at high temperatures. It is ideal for applications requiring robust performance in aggressive environments.
Available in various sizes, including diameters from 1/8″ to 12″ and lengths up to 24 feet. This tubing offers exceptional corrosion resistance and strength at high temperatures. It is ideal for applications requiring robust performance in aggressive environments.

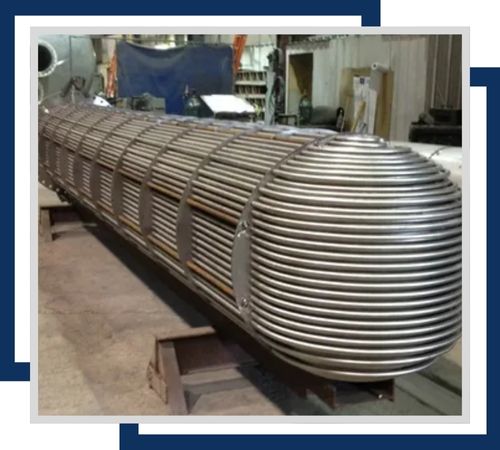

Typically available in sizes from 1/2″ to 2″ in diameter. These tubes offer superior resistance to high temperatures and corrosive fluids, making them suitable for heat exchange applications in aggressive environments. Their durability ensures efficient heat transfer and long service life.

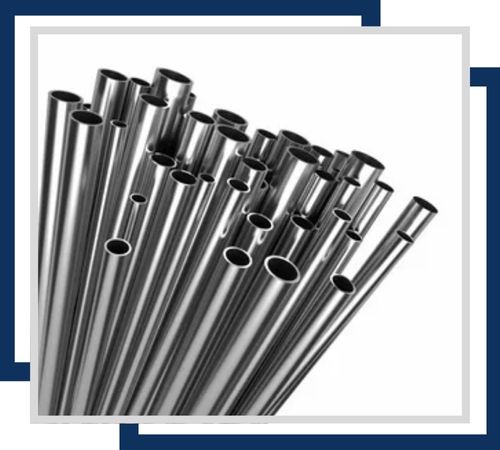

Available in diameters ranging from 1/8″ to 2″ and is known for its precision and durability. This tubing provides excellent resistance to oxidation and corrosion, making it ideal for use in instrumentation and control systems. Its stability ensures accurate measurements and reliable performance.

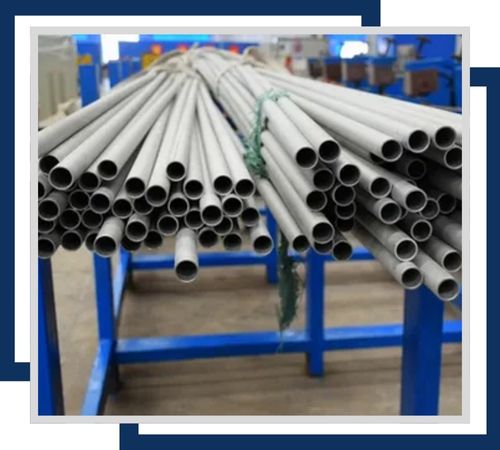

Outstanding resistance to high temperatures and corrosion. They are specifically designed for use in boilers and other high-pressure applications, ensuring durability and longevity under extreme conditions

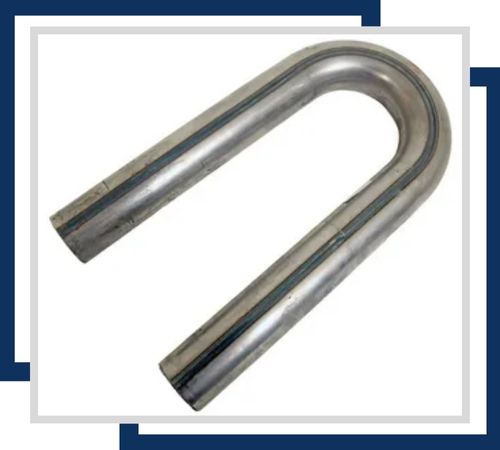

Used in applications requiring bent tubing. These tubes provide excellent resistance to heat and corrosion, making them ideal for heat exchangers and other systems involving high temperatures and corrosive substances.

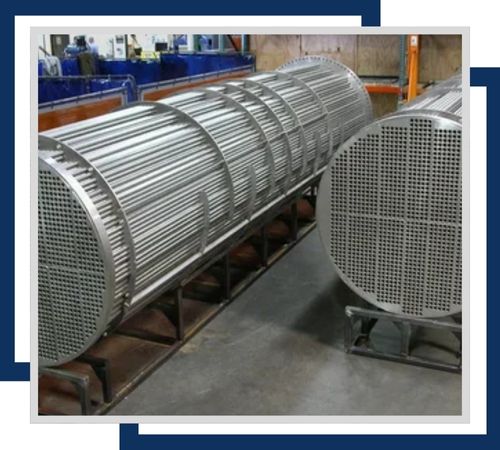

Designed to withstand harsh conditions in condenser systems. They provide high resistance to corrosion and temperature fluctuations, ensuring effective performance and durability in thermal management systems.

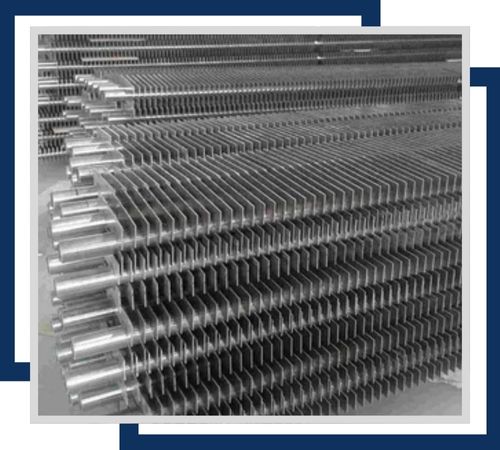

Available with various fin heights and diameters, typically ranging from 1/2″ to 4″. These tubes are designed for enhanced heat transfer efficiency in finned tube heat exchangers. Their high resistance to corrosion and thermal stability makes them suitable for demanding applications.
Stainless Steel 253Ma Tubing is supplied with necessary test certificates, such as Mill Test Certificates (MTC), third-party inspection reports, and ASTM/ASME compliance, to guarantee superior quality and reliability. It is safely packaged in wooden crates, pallets, or moisture-proof wrapping to avoid damage during transportation. With effective logistics and international shipping facilities, these tubes are delivered safely and on time to domestic and international markets, guaranteeing product integrity and customer satisfaction.
