Weston Stainless, a UK-based company located in Midland, is a premier distributor of premium stainless steel products, providing precision-engineered solutions for different industrial uses. Their Stainless Steel 304 Tubing is manufactured using AISI 304 stainless steel, an austenitic grade with exceptional corrosion resistance, durability, and strength. Used in seamless, welded, round, square, and rectangular forms, these tubes find extensive applications in chemical processing, food and beverages, pharmaceuticals, marine, and oil and gas. Made of superior stainless steel, they exhibit better performance under high-pressure and high-temperature conditions, ensuring durability and long life in demanding applications.
Stainless Steel 304 Tubing consists of 18-20% chromium, 8-10.5% nickel, 2% manganese, 1% silicon, 0.08% carbon, 0.045% phosphorus, and 0.03% sulfur, which guarantees superior corrosion resistance and strength. Its mechanical features are tensile strength of 515 MPa, yield strength of 205 MPa, elongation of 40%, and hardness of 90 HRB, guaranteeing strength and flexibility. Physical properties include a density of 8.0 g/cm³, a melting point between 1400-1450°C, and a thermal conductivity of 16.2 W/m·K, making it suitable for high-pressure and high-temperature use in many industrial applications.
Tube Range : 1/2″ OD – 12″ OD, Guage: 25 SWG – 10 SWG
Outer Diameter : 3.00 mm – 219.10 mm
Wall Thickness : 0.40 mm – 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A213 / ASTM SA213
Types : Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes
| SS | 304 |
|---|---|
| Ni | 8 – 11 |
| Fe | Balance |
| Cr | 18 – 20 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.040 max |
| S | 0.030 max |
| N | – |
| Grade | 304 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 92 |
| Brinell (HB) max | 201 |
Contact us to get a quick quote for your requirement.
Stainless Steel 304 Tubing is utilized extensively in corrosion-resistant industries that demand strength and durability. It is used in chemical processing, pharmaceuticals, food and beverages, and marine applications for conveying fluids, gases, and chemicals in a safe manner. It is utilized in pipelines, heat exchangers, and condensers in the oil and gas industry due to its resistance to pressure and high temperatures. It is also used in the automotive, aerospace, and construction sectors for structural reinforcement, exhaust systems, and architectural structures. Its superior weldability and resistance to oxidation make it perfect for harsh environments.

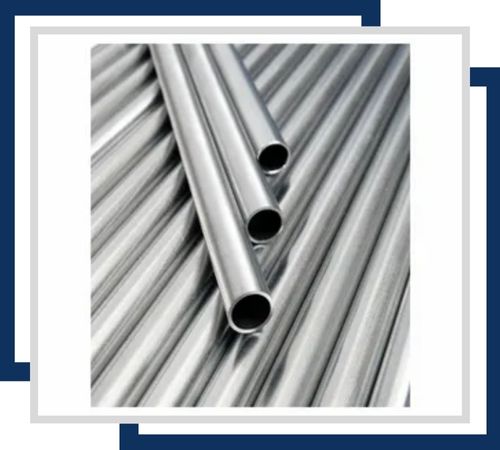

This tubing is available in a variety of sizes and diameters, typically ranging from 1/8″ to 12″ OD. It offers excellent corrosion resistance, particularly against oxidative and corrosive environments. Ideal for high-pressure applications due to its uniform strength and integrity.
Commonly found in sizes from 1/4″ to 8″ OD, this tubing is produced by welding a seam along its length. It provides good corrosion resistance and is often used in structural and decorative applications. Less uniform in strength compared to seamless tubing but cost-effective.

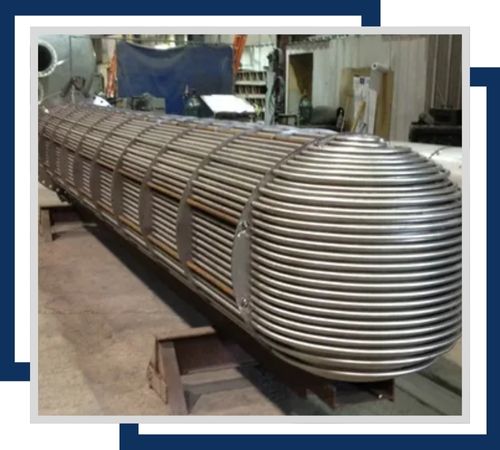

These tubes are designed for thermal exchange processes and come in sizes ranging from 1/2″ to 4″ OD. They offer superior resistance to heat and corrosion, making them ideal for use in various heating and cooling systems.

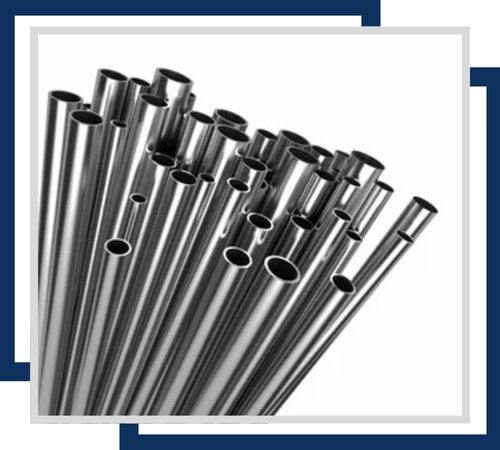

Typically available in sizes from 1/8″ to 2″ OD, this tubing is used for precision instrumentation. It features excellent resistance to corrosion and ensures accurate readings in a variety of monitoring and control applications.

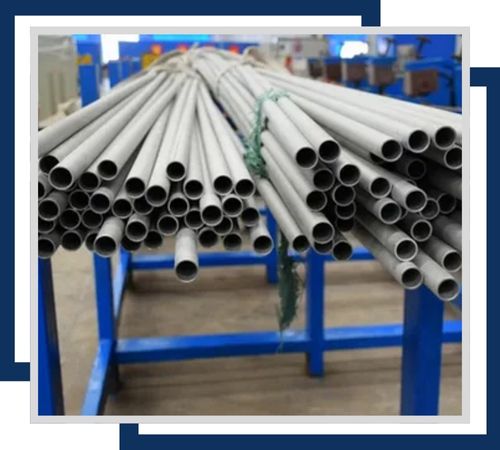

Sized from 1″ to 6″ OD, these tubes are specifically designed for boiler systems. They provide high resistance to heat and corrosion, ensuring durability and reliability under high-pressure and high-temperature conditions.

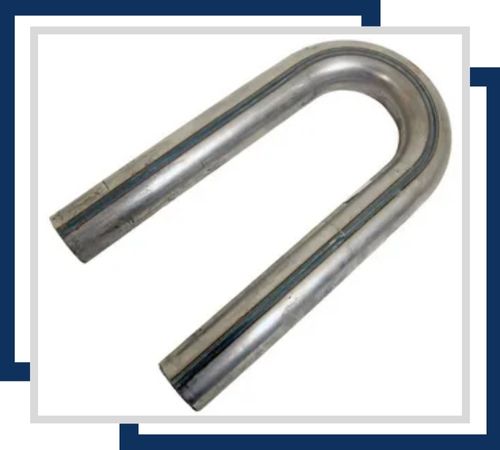

These U-shaped tubes are often used in heat exchangers and come in sizes from 1/2″ to 3″ OD. They are highly resistant to corrosion and thermal stress, making them ideal for applications requiring efficient heat transfer.

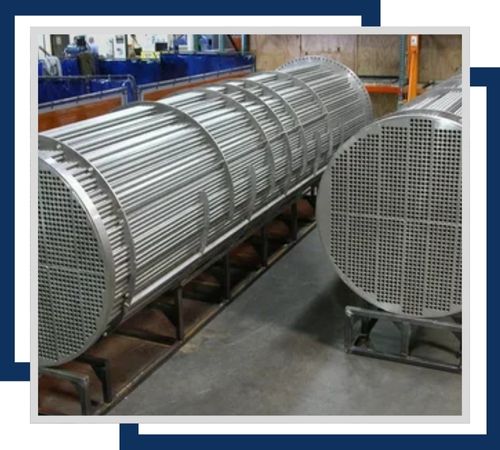

Available in sizes from 1/2″ to 3″ OD, these tubes are used in condenser systems. They provide excellent corrosion resistance and durability against the harsh conditions of cooling and condensation processes.

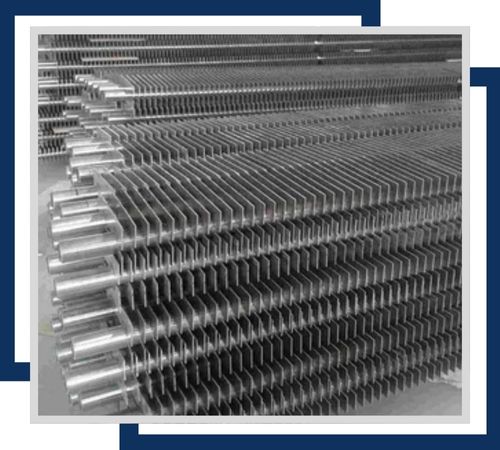

Typically found in sizes from 1″ to 4″ OD, fin tubes are used in heat exchangers and radiators. They offer strong corrosion resistance and enhanced heat transfer efficiency due to their finned surface design.
Stainless Steel 304 Tubing is shipped with Mill Test Certificates (MTC) EN 10204 3.1/3.2, third-party inspection certificates, and conformity certificates for quality and industrial standards. It is packaged securely in wooden crates, strapped bundles, or protective plastic wrapping against transit damage. Delivery is efficiently coordinated through air, sea, or land transportation to ensure safe and on-time shipment in accordance with customer specification and project requirement.
