Weston Stainless, with offices in Midland, UK, is a world-class supplier of high-quality premium stainless steel materials, with emphasis on high corrosion-resistant materials to be used industrially. With its best selling products, 904L Forged Fittings are most acknowledged for their unparalleled resistance to hard environments. It comes in the form of Grade 904L and is being produced in elbow, tee, coupling, as well as in union shapes in high-alloy austenitic stainless steel. Their low-carbon content increases weldability, while the presence of high nickel and molybdenum content gives exceptional acid attack resistance, making them perfectly suitable for chemical processing, marine, and pharmaceutical applications.
Stainless Steel 904L Forged Fittings contain a high nickel (23-28%) and chromium (19-23%) content and 4-5% molybdenum, which increases corrosion resistance. The copper addition enhances sulfuric acid resistance, and the low carbon content avoids carbide precipitation. The fittings possess a tensile strength of around 490 MPa, yield strength of about 220 MPa, and elongation of 35%. They have a density of 8 g/cm³ and possess high thermal conductivity and oxidation resistance, retaining their mechanical strength even at elevated temperatures.
| Standards | ASTM B649 / ASME SB649 |
| Specifications | ASME B16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size Range | NPS 1/8″- 4″ (DN 6~100) |
| Rating Pressure | Threaded End – 2000/3000/6000 LBS. Socket weld End – 3000/6000/9000 LBS. |
| Type | Socket Weld, Screwed, BSP Threaded & NPT Threaded |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 904L | min. | – | – | – | – | – | 19.0 | 4.00 – 5.00 | 23.00 | – |
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 28.00 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 904L | 490 | 220 | 35 | 75 | – |
Contact us to get a quick quote for your requirement.
Stainless Steel 904L Forged Fittings are employed in highly corrosive conditions like chemical and pharmaceutical processes, where contact with strong acids is frequent. They are used extensively in marine and offshore equipment, desalination plants, and heat exchangers owing to their high resistance to seawater corrosion. These fittings are also used in refineries for oil and gas, paper and pulp mills, and power plants where high-temperature strength and durability are needed. Their excellent mechanical and corrosion-resistant properties qualify them for use in critical piping systems in many industrial applications.

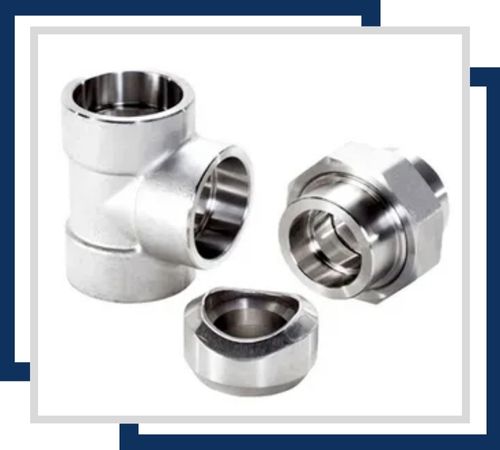

These fittings are available in sizes from 1/8″ to 4″ and offer reliable, leak-free connections in high-pressure systems. They are commonly used in petrochemical, power generation, and oil and gas industries.

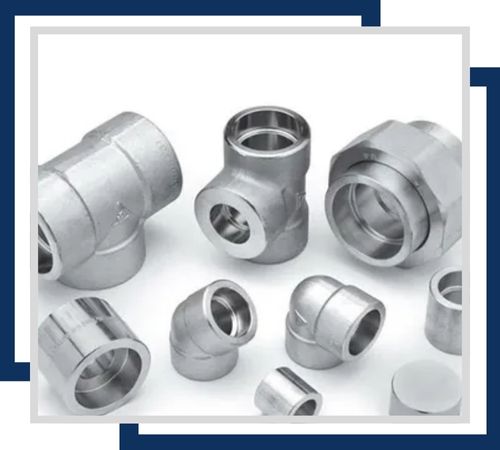

Threaded fittings, ranging from 1/8″ to 4″, provide ease of installation and maintenance. Suitable for low-pressure applications, they are widely used in plumbing, heating, and cooling systems.

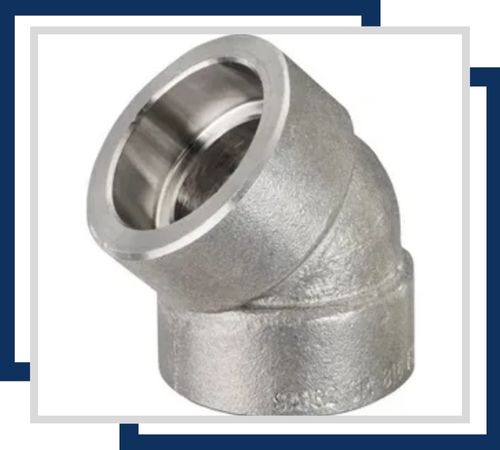

These elbows, available in sizes from 1/8″ to 4″, allow for smooth directional flow changes. They are ideal for piping systems requiring high-strength connections and reduced flow resistance.

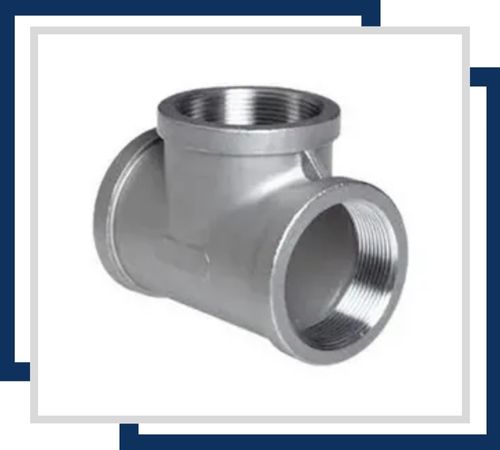

Threaded tees, in sizes ranging from 1/8″ to 4″, branch off the main line in a piping system. They provide reliable performance in various industrial and commercial applications.

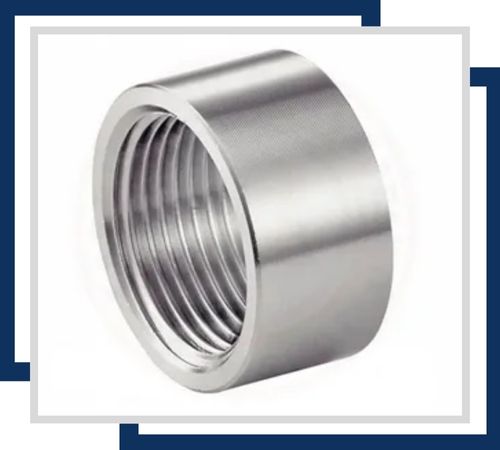

These couplings, available in sizes from 1/8″ to 4″, join two pipes or fittings. They offer easy assembly and disassembly, making them suitable for maintenance and repair work.

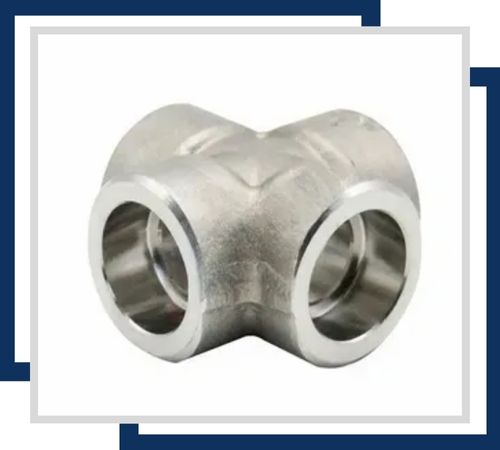

Socket weld crosses, ranging from 1/8″ to 4″, are designed to connect four pipes at a single junction. They are used in high-pressure applications where a strong, leak-proof connection is essential.
Stainless Steel 904L Forged Fittings are supplied with mill test certificates, such as EN 10204 3.1 and 3.2, for conformity to global quality standards. They are packed safely in wooden crates, bubble wrap, and plastic covers to avoid damage during shipping. Custom packaging can be arranged on request to suit special storage and handling requirements. Efficient logistics ensure timely delivery, fulfilling global industrial needs while ensuring product integrity during transit.
