Stainless Steel 310/310S Forged Fittings are composed of 24-26% Chromium, 19-22% Nickel, 0.25% Carbon (310) and 0.08% Carbon (310S), 2% Manganese, 1.50% Silicon, 0.045% Phosphorus, and 0.03% Sulfur, ensuring excellent high-temperature strength and oxidation resistance. Their mechanical properties include a tensile strength of 515 MPa, yield strength of 205 MPa, and elongation of 40%, providing durability in extreme environments. With a density of 7.9 g/cm³, a melting point of 1400-1450°C, and thermal conductivity of 14.2 W/m·K, these fittings are ideal for high-temperature applications in petrochemical, power, and thermal processing industries.
Specifications : ASTM A182 & ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
| SS 310S | 0.08 max | 2.0 max | 1.00 ma | 0.045 max | 0.030 max | 24.00 – 26.00 | 0.75 max | 19.00 – 21.00 | 53.095 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.
Stainless Steel 310/310S Forged Fittings are widely used in high-temperature and corrosion-resistant applications across various industries. They are essential in petrochemical plants, power generation facilities, and refineries, where they ensure secure and leak-proof connections in piping systems. These fittings are commonly used in industrial boilers, heat exchangers, and furnace components due to their excellent oxidation resistance. Additionally, they are employed in offshore oil and gas operations, chemical processing plants, and thermal processing units. Their ability to withstand extreme temperatures makes them ideal for high-pressure and high-heat environments, ensuring long-lasting performance and structural integrity.

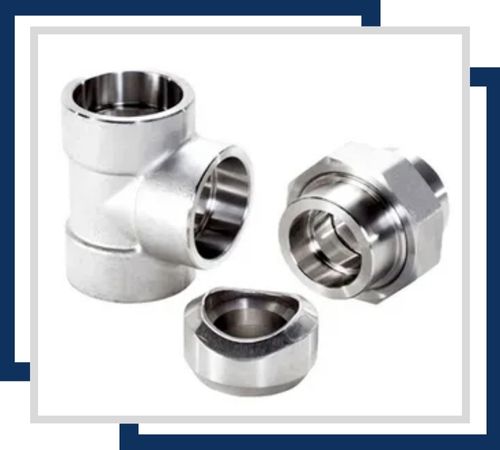

Highly resistant to oxidation and corrosion at elevated temperatures. They are designed for high-pressure applications and come in various sizes typically ranging from 1/2 inch to 4 inches. Socket weld fittings are ideal for applications requiring a strong, leak-proof connection.

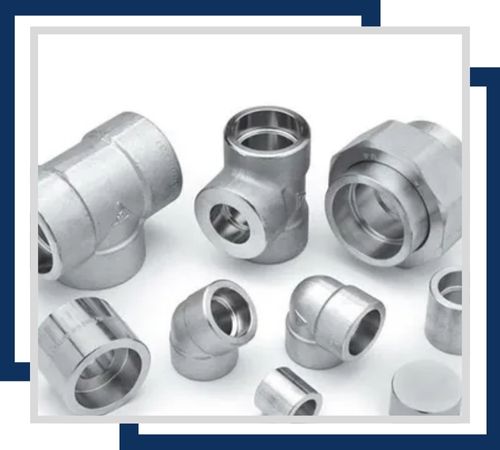

Excellent resistance to oxidation and corrosion, especially in high-temperature environments. Sizes generally vary from 1/8 inch to 4 inches. They are used for connecting pipes with threads, making them suitable for pressure-tight joints.

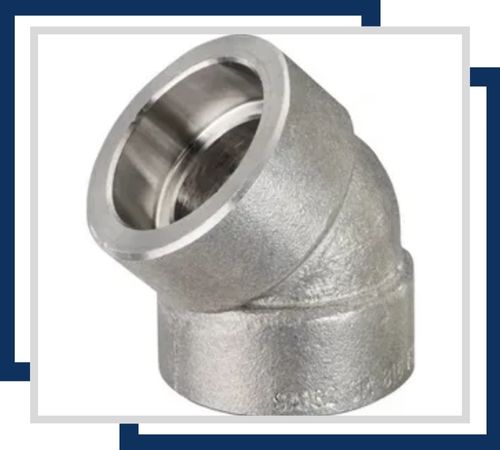

Excellent corrosion resistance and are ideal for applications involving high temperatures. They are available in sizes from 1/2 inch to 4 inches and are used to change the direction of flow in piping systems by 45 degrees.

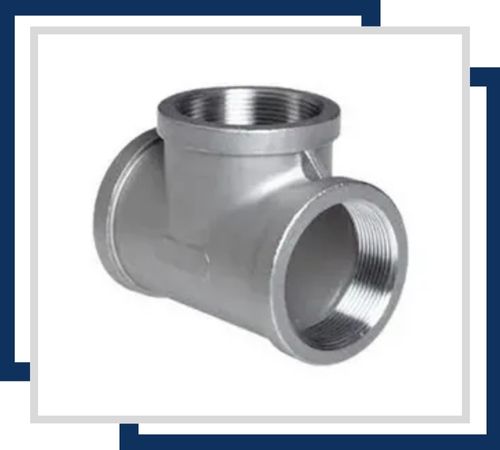

Superior resistance to high-temperature oxidation and corrosion. Common sizes range from 1/4 inch to 4 inches. These tees are used to branch out pipelines and provide a secure connection in high-pressure systems.

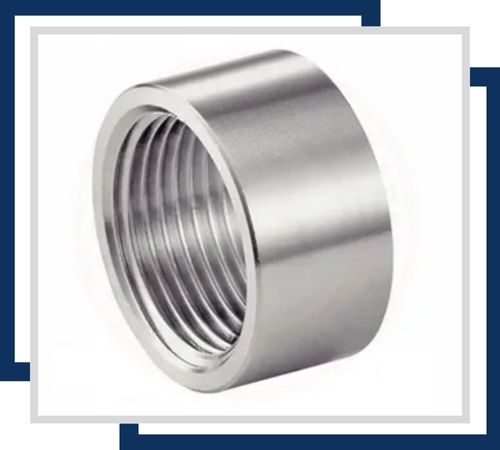

Excellent corrosion resistance, threaded half couplings are used to connect two pipes in high-temperature applications. Sizes typically range from 1/8 inch to 4 inches. They are ideal for creating a connection in the middle of a pipe.

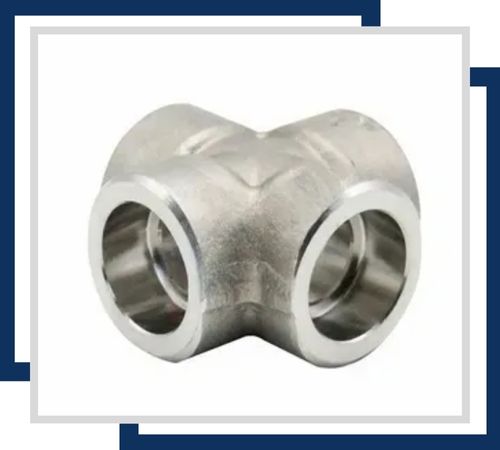

High resistance to oxidation and are used in high-pressure systems. They are available in sizes from 1/2 inch to 4 inches and allow for the intersection of four pipes, ensuring a robust connection.
Stainless Steel 310/310S Forged Fittings come with test certificates such as Mill Test Certificates (MTC), third-party inspection reports, and material traceability documents, ensuring compliance with international standards. They are securely packed in wooden crates, bubble wrap, or plastic covers to prevent damage during transit. With efficient and reliable delivery services, these fittings are shipped safely to domestic and international markets, ensuring they reach customers in top-quality condition without any compromise on performance.
