Home > Forged Fittings > Stainless Steel 304H Forged Fittings
Weston Stainless, which is located in Midland, UK, is a trusted high-quality stainless steel products supplier with durable and precision-fabricated fittings for industries. Their Stainless Steel 304H Forged Fittings are made of high-quality AISI 304H stainless steel, a high-carbon grade of 304, offering superior strength and high-temperature resistance. The fittings are available in a range of shapes such as elbows, tees, couplings, unions, and bushings, offering safe and leak-free connections. They are constructed using higher-quality forged stainless steel and are best suited for applications in chemical processing, petrochemical, power generation, and high-temperature piping systems with superior durability and corrosion protection.
Stainless Steel 304H Forged Fittings consist of 18-20% chromium, 8-10.5% nickel, 0.04-0.10% carbon, 2% manganese, 1% silicon, 0.045% phosphorus, and 0.03% sulfur, with higher strength and resistance to corrosion. Their mechanical characteristics are tensile strength of 515 MPa, yield strength of 205 MPa, elongation of 40%, and hardness of 90 HRB, with durability in hot conditions. Their physical properties include 8.0 g/cm³ density, melting point of 1400-1450°C, and a thermal conductivity of 16.2 W/m·K and are well-suited for the high-stress and high-temperature applications that are present within many industries.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Stainless Steel 304H Forged Fittings find extensive application in high-temperature and high-pressure resistant industries. They are suited for petrochemical, power generation, chemical processing, and oil and gas industries to ensure safe performance in harsh conditions. Stainless Steel 304H Forged Fittings are also utilized in boilers, heat exchangers, pressure vessels, and superheater parts because of their high strength and thermal resistance. They are also used in industrial furnaces, refinery equipment, and steam piping, providing good corrosion resistance and durability. They have a very strong forged design that provides leak-proof and s

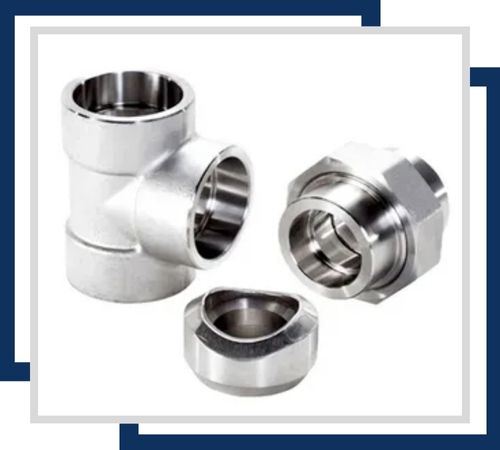

These fittings are available in sizes from 1/8″ to 4″ and offer reliable, leak-free connections in high-pressure systems. They are commonly used in petrochemical, power generation, and oil and gas industries.

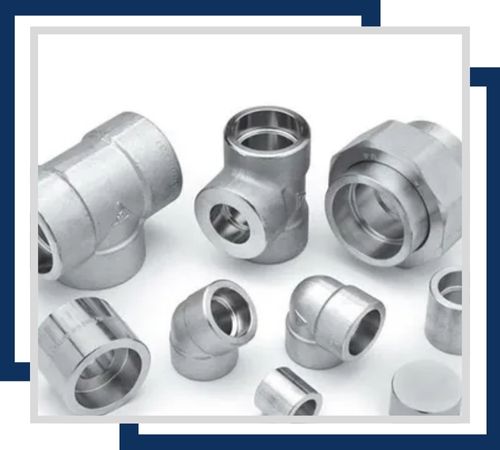

Threaded fittings, ranging from 1/8″ to 4″, provide ease of installation and maintenance. Suitable for low-pressure applications, they are widely used in plumbing, heating, and cooling systems.

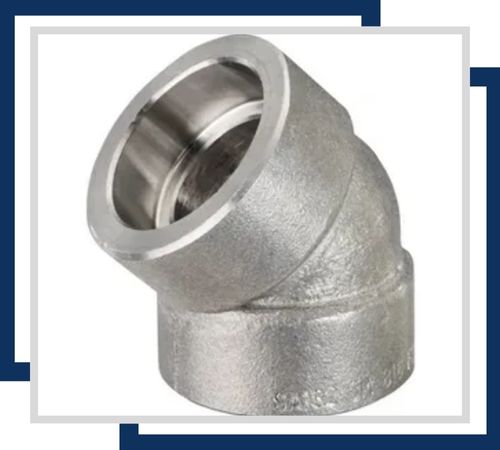

These elbows, available in sizes from 1/8″ to 4″, allow for smooth directional flow changes. They are ideal for piping systems requiring high-strength connections and reduced flow resistance.

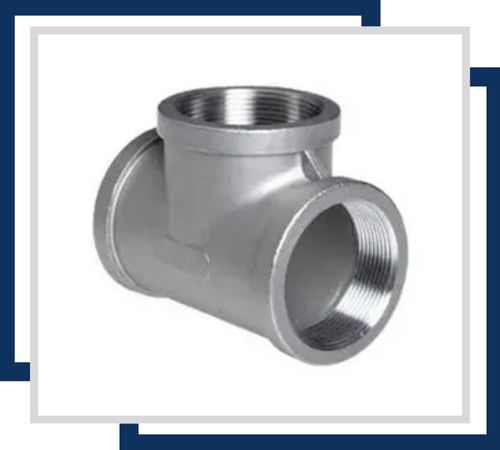

Threaded tees, in sizes ranging from 1/8″ to 4″, branch off the main line in a piping system. They provide reliable performance in various industrial and commercial applications.

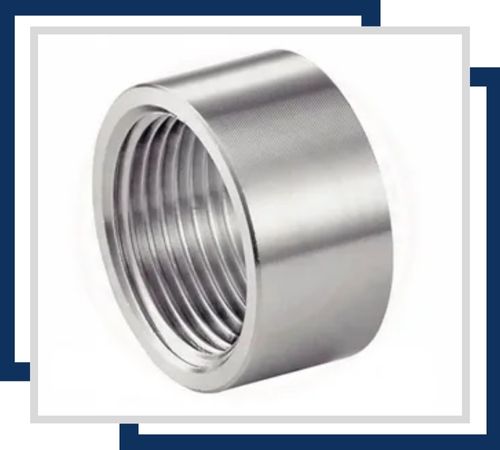

These couplings, available in sizes from 1/8″ to 4″, join two pipes or fittings. They offer easy assembly and disassembly, making them suitable for maintenance and repair work.

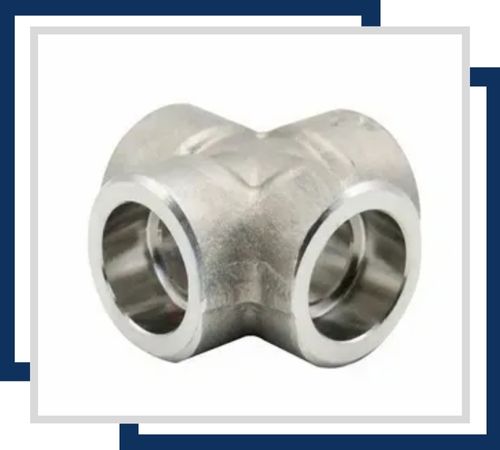

Socket weld crosses, ranging from 1/8″ to 4″, are designed to connect four pipes at a single junction. They are used in high-pressure applications where a strong, leak-proof connection is essential.
Stainless Steel 304H Forged Fittings are accompanied by Mill Test Certificates (MTC) EN 10204 3.1/3.2, third-party inspection reports, and conformity certifications to guarantee quality and industry specifications. They are properly packaged in wooden crates, cardboard boxes, or bubble-wrapped bundles for protection during shipment. Delivery is carried out with effective logistics through air, sea, or land, guaranteeing timely and secure shipment according to customer requirements and project specifications.
