Weston Stainless, Midland, UK is a leading provider of stainless steel products of the highest quality, providing long-lasting and economical solutions for commercial and industrial use. One of its major products, Stainless Steel 410 Pipes, is produced with grade 410 stainless steel, a martensitic alloy with superior mechanical properties, high strength, and moderate corrosion resistance. They come in seamless, welded, and ERW (Electric Resistance Welded) types and can be used in different industrial applications. With a major composition of iron, chromium, and carbon, Stainless Steel 410 Pipes offer great wear resistance, toughness, and thermal stability and are used in automotive, aerospace, power generation, and construction fields.
Stainless Steel 410 Pipes have 11.5-13.5% chromium, 0.08-0.15% carbon, and trace amounts of manganese, silicon, and phosphorus, which improve their corrosion resistance and mechanical strength. Their mechanical properties are tensile strength of 450-650 MPa, yield strength of 205 MPa, and hardness up to 96 HRB, providing structural stability in adverse conditions. Their density is 7.75 g/cm³ and they have a melting point of about 1480°C. They have good oxidation resistance, thermal conductivity, and wear resistance, which makes them more applicable in challenging uses where durability and strength are high demands.
| Dimensions | : | ASTM, ASME and API |
|---|---|---|
| Standard | : | ASTM A312 / ASTM SA312 |
| Size | : | 1/8” NB to 36” NB, 1/4” OD to 36” OD |
| Specialized in | : | Large Diameter Size |
| Outer Diameter | : | 6.35 mm O.D to 114.3 mm O.D |
| Thickness | : | 0.8 mm to 12.7 mm |
| Form | : | Round, Square, Rectangular, Hydraulic Etc |
| Type | : | Welded |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End |
| Grade | Ni | Mn | P | C | S | Si | Cr | Mo | N | |
| 410 | min. | – | – | – | – | – | – | 11.5 | – | – |
| max. | 0.75 | 1.00 | 0.040 | 0.15 | 0.030 | 1.00 | 13.5 | |||
| Tempering Temperature (0C) | Tensile Strength (MPa) | Impact Charpy V (J) | Elongation (% in 50mm) | Yield Strength 0.2% Proof (MPa) | Hardness Brinell (HB) |
| Annealed * | 480 min | – | 16 min | 275 min | – |
| 204 | 1310 | 30 | 16 | 1000 | 388 |
| 316 | 1240 | 36 | 14 | 960 | 325 |
| 427 | 1405 | # | 16 | 950 | 401 |
| 538 | 985 | # | 16 | 730 | 321 |
| 593 | 870 | 39 | 20 | 675 | 255 |
| 650 | 755 | 80 | 23 | 575 | 225 |
Contact us to get a quick quote for your requirement.
Stainless Steel 410 Pipes find extensive applications in steam turbines, petrochemical industries, power plants, and exhaust systems in automobiles, where there is a great demand for high corrosion resistance and high strength. These pipes are also utilized in heat exchangers, pressure vessels, and industrial processing equipment, providing reliability and long lifespan in extreme conditions. They are also utilized in boiler systems, pump shafts, and furnace parts, where their resistance to thermal expansion, oxidation, and mechanical stress provides optimal performance. Their superior machinability and toughness make them the best for heavy-duty and structural applications that demand higher strength.

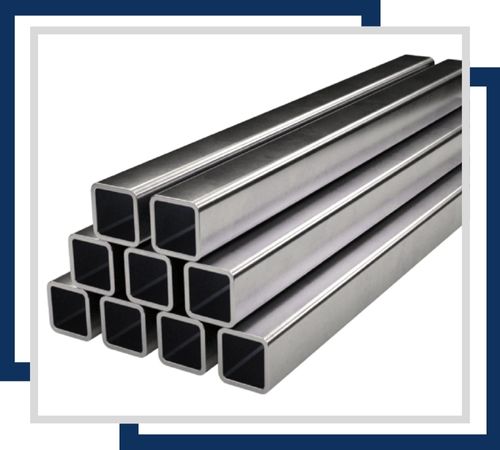

Moderate corrosion resistance and are commonly used in structural applications. They come in various sizes, typically from 20 mm to 100 mm in width and height. They are known for their good machinability and resistance to oxidation.

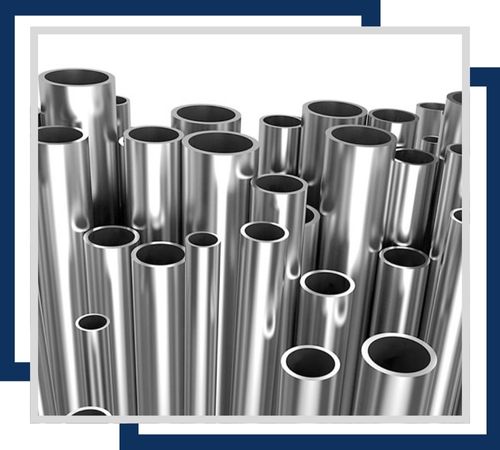

Moderate corrosion resistance and are ideal for high-stress applications. They are available in sizes ranging from 1/8 inch to 12 inches in diameter. The absence of welded seams provides better strength and reliability in critical environments.
Moderate corrosion resistance and are used in various applications, including construction and industrial. They typically range from 1/2 inch to 24 inches in diameter and offer good weldability and strength.
Moderate corrosion resistance and are used for high-pressure applications. They are available in sizes ranging from 8 to 60 inches in diameter, offering enhanced strength and durability due to the welding process.
Moderate corrosion resistance and are widely used in structural and industrial applications. They are available in diameters ranging from 1/8 inch to 12 inches, providing versatility and strength for various uses.
Moderate corrosion resistance and are used in various industries. They are available in sizes from 1/2 inch to 24 inches in diameter. The welding process provides good strength and durability, making them suitable for various applications.
Weston Stainless offers mill test certificates (MTC) according to EN 10204 3.1/3.2, guaranteeing international material and mechanical standards compliance. The pipes are carefully packed in wooden crates, waterproof wrapping, or special packaging to avoid damage during shipping. With a wide global supply chain and effective logistics system, Weston Stainless guarantees timely delivery, upholding strict quality control to satisfy industry standards and customer requirements.
