Weston Stainless, a Midland, UK-based company, is a reliable provider of stainless steel products of high quality, providing robust and precision-crafted solutions to diverse industries. Their Stainless Steel 304 Pipes are constructed from AISI 304 stainless steel, a common austenitic grade with high corrosion resistance, strength, and weldability. Their pipes are supplied in various shapes, such as seamless, welded, ERW, and fabricated forms, which can be used for diverse applications. Made of high-grade stainless steel, they are commonly applied in chemical processing, food and beverage, pharmaceuticals, marine, and construction industries, providing durability, flexibility, and resistance to oxidation and extreme temperatures.
Stainless Steel 304 Pipes contain 18-20% chromium, 8-10.5% nickel, 2% manganese, 1% silicon, 0.08% carbon, 0.045% phosphorus, and 0.03% sulfur, which gives them superior corrosion resistance and longevity. Their mechanical properties are a tensile strength of 515 MPa, yield strength of 205 MPa, elongation of 40%, and hardness of 90 HRB, which provides them with superior strength and flexibility. The physical properties have a density of 8.0 g/cm³, a melting point of 1400-1450°C, and a thermal conductivity of 16.2 W/m·K, and they are suited for structural, industrial, and high-temperature applications.
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
|
Grade |
Ni |
Mn |
P |
C |
S |
Si |
Cr |
Mo |
N |
|
|
304 |
min. |
8.0 |
– |
– |
– |
– |
– |
18.0 |
– |
– |
|
max. |
10.5 |
2.0 |
0.045 |
0.08 |
0.030 |
0.75 |
20.0 |
|||
|
Grade |
Tensile Strength (MPa) min |
Elongation (% in 50mm) min |
Yield Strength 0.2% Proof (MPa) min |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
|
304 |
515 |
40 |
205 |
92 |
201 |
Contact us to get a quick quote for your requirement.
Stainless Steel 304 Pipes are extensively used in high corrosion-resistant, long-lasting, and strong industries. They are typically used in chemical processing, food and beverage, pharmaceutical, marine, and construction industries for producing fluid transport systems, heat exchangers, water pipes, and structural elements. Their good weldability and formability properties make them suitable for architectural work, automotive exhaust systems, and oil and gas industries. These pipes find application in power plants, sewage treatment, and petrochemical industries as well, providing lasting performance in harsh conditions, surviving extreme temperatures, and sustaining structural integrity at high pressure.
Robust, corrosion-resistant pipes with a square cross-section, commonly used in structural applications, architectural projects, and industrial settings for their durability and aesthetic appeal.

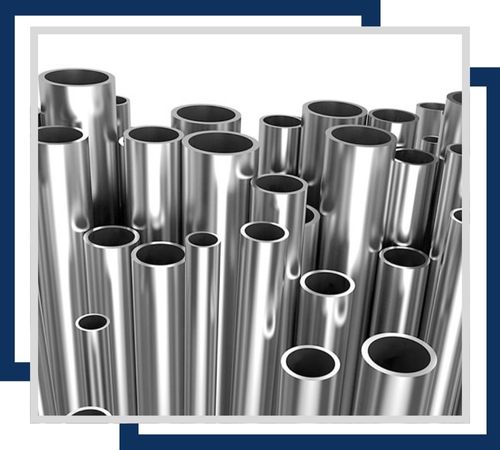

Corrosion-resistant pipes made from stainless steel without welds or seams, ideal for high-pressure applications and offering superior strength and longevity in various industries.

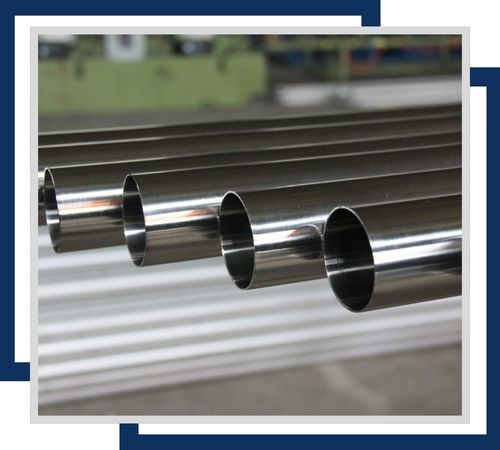

Electric resistance welded pipes made from 304 stainless steel, offering high corrosion resistance, durability, and strength for various industrial and commercial applications.

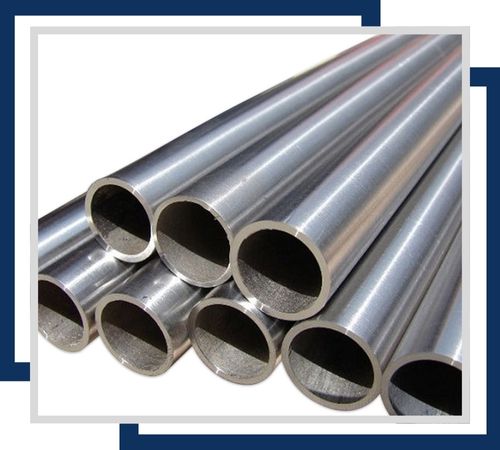

Longitudinally submerged arc welded pipes made from 304 stainless steel, providing excellent corrosion resistance and strength for high-pressure and high-temperature applications in various industries.

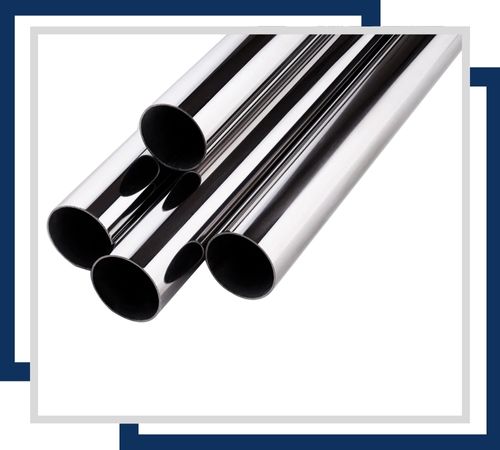

Versatile, corrosion-resistant pipes made from 304 stainless steel, known for their durability and strength, suitable for structural, industrial, and architectural applications.

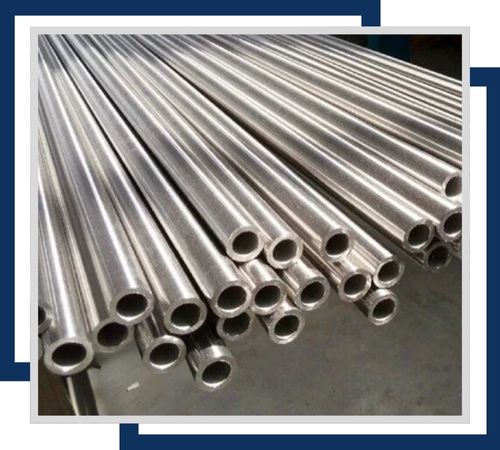

Manufactured through welding processes. They offer excellent corrosion resistance, strength, and are used in various industrial and commercial applications.
Stainless Steel 304 Pipes are supplied with Mill Test Certificates (MTC) EN 10204 3.1/3.2, third-party inspection certificates, and compliance certificates, ensuring quality and meeting industry standards. They are properly packaged in wooden crates, plastic wrapping, or protective metal straps to avoid damage during shipping. Delivery is handled efficiently through air, sea, or land transport, ensuring safe and timely delivery according to customer needs and project requirements.
