Midland, UK-headquartered Westeon Stainless is a reputed provider of top-quality stainless steel products offering precision-engineered parts for industrial sectors. Some of their offerings are the extensively utilized Stainless Steel 304H Pipes that owe their popularity due to excellent high-temperature properties, corrosion, and toughness. The pipes are produced using Grade 304H stainless steel having more carbon, thereby making mechanical properties superior. Seamless, welded, ERW, and fabricated forms are available for them, catering to a variety of industrial requirements. 304H material content makes them deliver great performance, thus they find extensive application in heat exchangers, boilers, power generation plants, chemical processing, and structural uses at elevated temperatures.
Stainless Steel 304H Pipes consist of carbon (0.04-0.10%), chromium (18-20%), nickel (8-11%), manganese (≤2%), silicon (≤1%), phosphorus (≤0.045%), and sulfur (≤0.03%), offering superior high-temperature strength and corrosion resistance. Their mechanical properties are tensile strength of ≥515 MPa, yield strength of ≥205 MPa, elongation of ≥40%, and hardness of ≤201 Brinell (HB). The physical characteristics encompass a density of 8.0 g/cm³, a melting point in the range 1400-1450°C, thermal conductance of 16.2 W/m·K, and electrical resistivity of 720 nΩ·m, for applications under high pressure and temperatures.
|
Dimensions |
: |
ASTM, ASME and API |
|
Standard |
: |
ASTM A312 / ASME SA312 |
|
Size |
: |
1/8″NB TO 30″NB IN |
|
Specialized in |
: |
Large Diameter Size |
|
Schedule |
: |
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
|
Form |
: |
Round, Square, Rectangular, Hydraulic Etc |
|
Type |
: |
Seamless / ERW / Welded / Fabricated / LSAW Pipes |
|
Length |
: |
Single Random, Double Random & Cut Length. |
|
End |
: |
Plain End, Beveled End, Threaded |
| Grade | 304H | |
|---|---|---|
| min | max | |
| C | – | 0.08 |
| Mn | – | 2.0 |
| Si | – | 0.75 |
| P | – | 0.045 |
| S | – | 0.03 |
| Cr | 16.0 | 18.0 |
| Mo | 2.0 | 3.0 |
| Ni | 10.0 | 14.0 |
| N | – | 0.10 |
| Grade | 304H | |
|---|---|---|
| Tensile Strength (MPa) min | 515 | |
| Yield Strength 0.2% Proof (MPa) min | 205 | |
| Elongation (% in 50mm) min | 40 | |
| Hardness | Rockwell B (HR B) max | 95 |
| Rockwell B (HR B) max | 217 | |
Contact us to get a quick quote for your requirement.
Stainless Steel 304H Pipes are used extensively in high-pressure and high-temperature environments because of their superior strength, toughness, and corrosion resistance. They are used in boilers, heat exchangers, pressure vessels, and power generation units to provide consistent performance even in harsh environments. They are highly required in chemical processing, petrochemical, and oil & gas industries to withstand oxidation and thermal stress. They are also employed in sea environments, refineries, and industrial piping systems to deliver long-term structural strength. Due to their better mechanical properties, they are the most suitable for steam piping and high-temperature structural members.
High-strength, corrosion-resistant tubes with a square cross-section. They are used in structural and architectural applications, offering durability and reliability in various industrial and commercial environments.

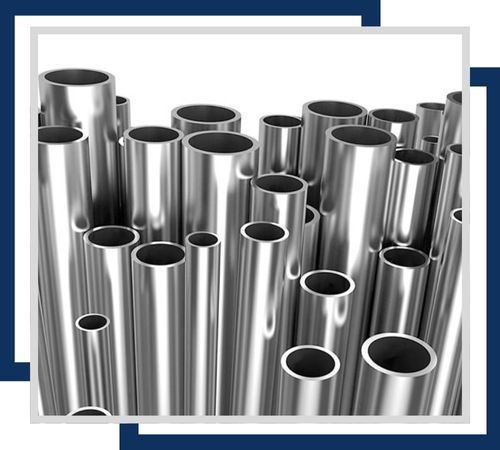

High-strength, corrosion-resistant tubes with no welded seams. Ideal for high-temperature and high-pressure applications, they offer durability and reliability in industries such as petrochemical and power generation.

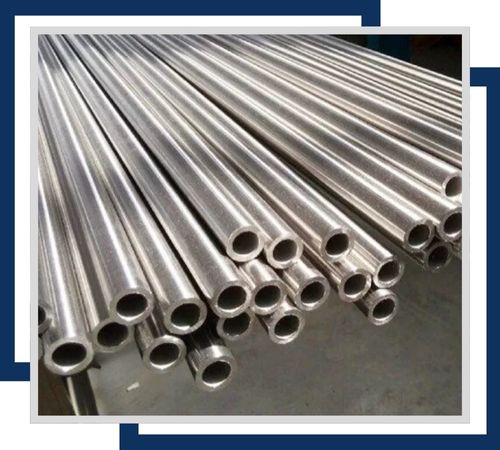

High-strength tubes produced by welding, offering excellent corrosion resistance and durability. They are used in various industrial applications requiring reliable performance.

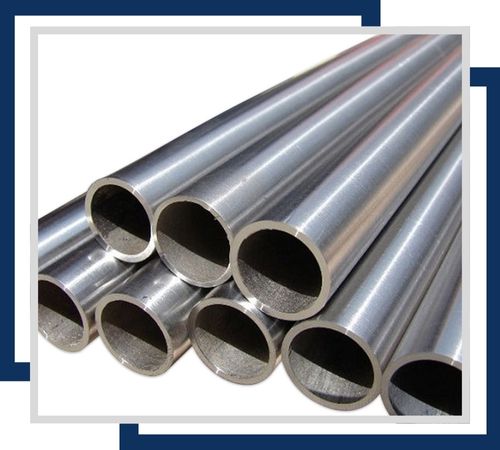

High-strength tubes with excellent corrosion resistance, used in heavy-duty applications like oil and gas pipelines and infrastructure projects.

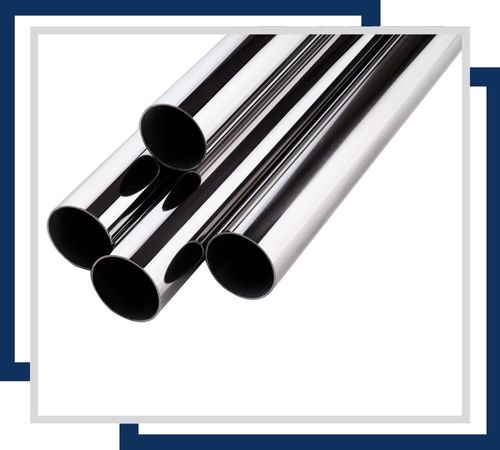

High-strength tubes with a circular cross-section. They offer excellent corrosion resistance and are used in various applications, including construction, industrial processes, and infrastructure projects.

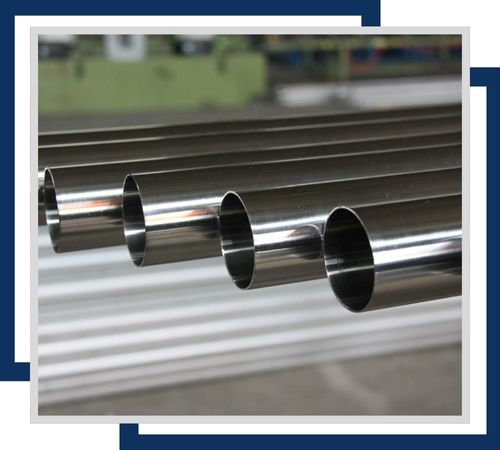

High-strength, corrosion-resistant tubes created by welding stainless steel strips. They are used in high-temperature and high-pressure applications, offering durability and reliability across various industries.
Stainless Steel 304H Pipes come with test certificates, including Mill Test Certificate (MTC) as per EN 10204 3.1/3.2, third-party inspection reports, and raw material test certificates, ensuring adherence to international quality standards. They are securely packaged in wooden crates, bundles, or plastic-capped ends to prevent damage during handling and transportation. Delivery is efficient, with customized shipping options to meet global industrial and commercial project requirements.
