Weston Stainless, based in Midland, UK, is a leading supplier of high-quality stainless steel products, catering to various industrial and commercial sectors. They offer a wide range of stainless steel pipes, sheets, coils, fittings, and fasteners that comply with international quality standards. The Stainless Steel 317 Pipes, made from Grade 317 austenitic stainless steel, provide excellent corrosion resistance, high strength, and durability. Available in round, square, rectangular, and custom lengths, these pipes are ideal for chemical processing, marine, pharmaceutical, and construction industries, ensuring long service life and superior performance.
Stainless Steel 317 Pipes are made from Grade 317 austenitic stainless steel, composed of 18-20% Chromium, 11-15% Nickel, 3-4% Molybdenum, 2% Manganese, 1% Silicon, 0.03% Carbon, 0.045% Phosphorus, 0.03% Sulfur, and balance Iron, offering superior corrosion resistance and high strength. The mechanical properties include a tensile strength of 515 MPa, yield strength of 205 MPa, elongation of 35%, and hardness of 85 HRB, ensuring excellent durability and flexibility. The physical properties feature a density of 7.9 g/cm³, thermal conductivity of 16.2 W/m·K, and a melting point of 1400°C, making them ideal for harsh industrial environments.
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
Grade | Ni | Mn | P | C | S | Si | Cr | Mo | N | |
317 | min. | 8.0 | – | – | – | – | – | 18.0 | – | – |
max. | 10.5 | 2.0 | 0.045 | 0.08 | 0.030 | 0.75 | 20.0 | |||
Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
317 | 515 | 40 | 205 | 92 | 201 |
Contact us to get a quick quote for your requirement.
Stainless Steel 317 Pipes are made from Grade 317 austenitic stainless steel, composed of 18-20% Chromium, 11-15% Nickel, 3-4% Molybdenum, 2% Manganese, 1% Silicon, 0.03% Carbon, 0.045% Phosphorus, 0.03% Sulfur, and balance Iron, offering superior corrosion resistance and high strength. The mechanical properties include a tensile strength of 515 MPa, yield strength of 205 MPa, elongation of 35%, and hardness of 85 HRB, ensuring excellent durability and flexibility. The physical properties feature a density of 7.9 g/cm³, thermal conductivity of 16.2 W/m·K, and a melting point of 1400°C, making them ideal for harsh industrial environments.
Stainless Steel 317 Square Pipes offer excellent corrosion resistance, high strength, and durability, making them ideal for structural, chemical, marine, and industrial applications in harsh environments.

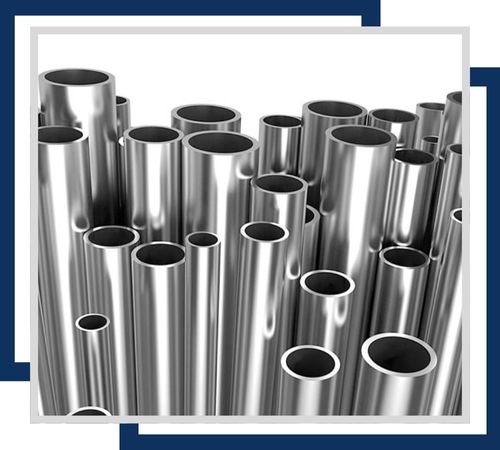

Cylindrical pipes made from 317 stainless steel, offering excellent corrosion resistance, durability, and strength, ideal for use in industrial applications and harsh environments.

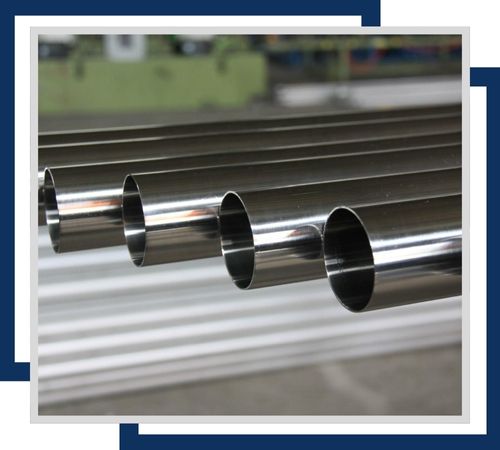

Joined by welding, providing excellent corrosion resistance, strength, and durability for various industrial and high-heat applications.
Stainless Steel 317 Pipes supplied by Weston Stainless come with essential test certificates such as Mill Test Certificate (MTC) as per EN 10204/3.1B, Third-Party Inspection Report, Raw Material Test Report, and 100% Radiography Test Report, ensuring top-quality standards. The pipes are securely packed in wooden crates, plastic end caps, bubble wrapping, or customized packaging to prevent damage during transit. Timely and safe delivery is ensured through a reliable supply chain, meeting domestic and international client requirements.
