Weston Stainless, based in Midland, UK, is a leading supplier of high-quality stainless steel products, offering durable and precision-engineered solutions for various industries. The company is known for its commitment to excellence, providing materials that meet stringent industrial requirements. Stainless Steel 310S Pipes, made from Grade 310S stainless steel, are designed for high-temperature applications and superior corrosion resistance. Available in round, square, and rectangular shapes, these pipes contain high chromium and nickel content, enhancing their oxidation and heat resistance. They are widely used in furnace equipment, heat exchangers, petrochemical processing, and power generation industries.
Stainless Steel 310S Pipes are composed of approximately 24-26% Chromium, 19-22% Nickel, 2% Manganese, 0.08% Carbon, 1.50% Silicon, 0.045% Phosphorus, and 0.03% Sulfur, providing excellent oxidation and heat resistance. Their mechanical properties include a tensile strength of 515 MPa, yield strength of 205 MPa, and elongation of 40%, ensuring durability and flexibility. With a density of 7.9 g/cm³, a melting point of 1400-1450°C, and thermal conductivity of 14.2 W/m·K, these pipes are ideal for high-temperature applications in furnace components, petrochemical processing, and power generation industries.
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
Grade | Ni | Mn | P | C | S | Si | Cr | Mo | N | |
310S | min. | 8.0 | – | – | – | – | – | 18.0 | – | – |
max. | 10.5 | 2.0 | 0.045 | 0.08 | 0.030 | 0.75 | 20.0 | |||
Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
310S | 515 | 40 | 205 | 92 | 201 |
Contact us to get a quick quote for your requirement.
Stainless Steel 310S Pipes are widely used in high-temperature and corrosion-resistant applications. They are essential in furnace components, heat exchangers, and kilns due to their superior oxidation resistance. In the petrochemical and chemical industries, they are used for processing equipment, piping systems, and reactors exposed to extreme heat and corrosive environments. Power plants utilize them in superheater and reheater tubes, while the aerospace and automotive industries benefit from their heat-resistant properties in exhaust systems and engine components. Their durability makes them ideal for thermal processing, refineries, and high-temperature structural applications.
Square-shaped pipes made from 310S stainless steel, offering high-temperature resistance, durability, and corrosion resistance, ideal for structural and industrial applications in harsh environments.

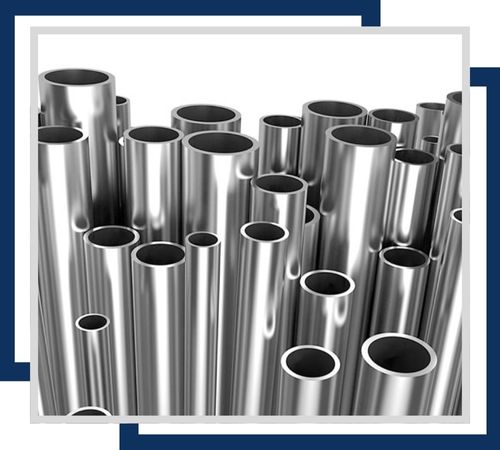

Pipes made from 310S stainless steel without welded seams, providing excellent high-temperature resistance, strength, and durability for demanding industrial and high-heat applications.

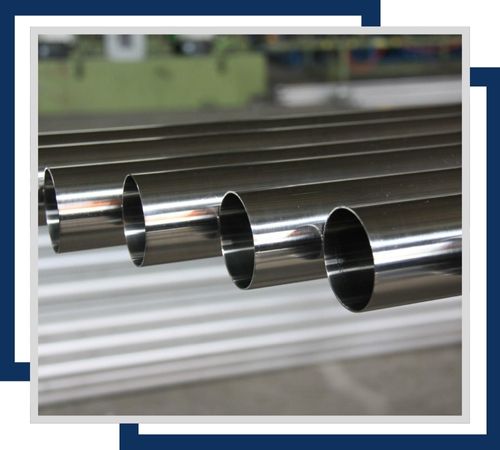

Electric resistance welded pipes made from 310S stainless steel, offering high-temperature resistance and durability, ideal for industrial applications and environments with elevated temperatures.

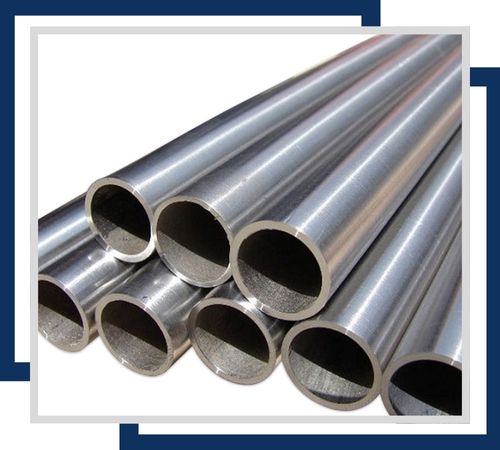

Longitudinally submerged arc welded pipes made from 310S stainless steel, providing high-temperature resistance, strength, and durability for use in high-pressure and industrial applications.

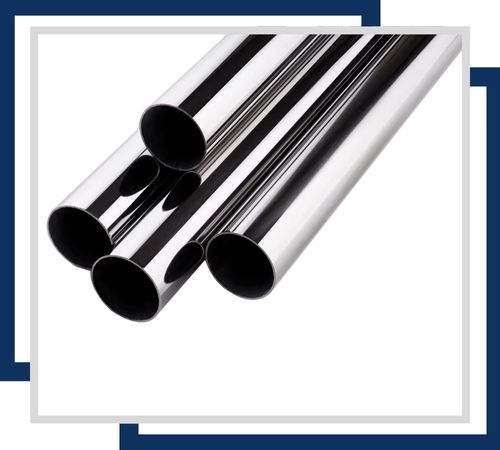

Cylindrical pipes made from 310S stainless steel, known for high-temperature resistance, corrosion resistance, and durability, making them suitable for industrial and high-heat applications.

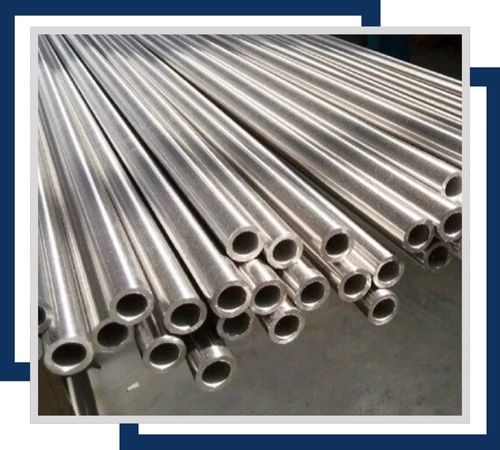

Made from 310S stainless steel and joined by welding, offering excellent high-temperature resistance, strength, and durability for various demanding industrial and high-heat applications.
Stainless Steel 310S Pipes come with test certificates such as Mill Test Certificates (MTC), third-party inspection reports, and material traceability documents, ensuring compliance with international quality standards. They are securely packaged using wooden crates, pallets, or customized wrapping to prevent damage during transit. Delivery is efficient and reliable, serving both domestic and global markets with safe shipping options, ensuring the pipes reach customers in excellent condition.
