Weston Stainless, based in Midland, UK, is a leading supplier of premium stainless steel products, catering to industries such as oil & gas, petrochemicals, marine, and construction. Committed to quality and precision, Weston Stainless provides durable and corrosion-resistant solutions that meet global standards. Among its offerings, Stainless Steel 317L Bars are highly valued for their superior strength and resistance to acidic environments. Made from low-carbon, molybdenum-bearing austenitic stainless steel, these bars provide excellent corrosion resistance and durability. Available in various shapes, including round, square, and hex bars, they ensure reliable performance in demanding industrial applications.
Stainless Steel 317L Bars are composed of iron, chromium (18-20%), nickel (11-15%), molybdenum (3-4%), and low carbon content, enhancing corrosion resistance and weldability. These bars have excellent mechanical properties, including a tensile strength of approximately 620 MPa, yield strength of 260 MPa, and elongation of 35%. Their physical properties include a density of 7.9 g/cm³ and a melting point of 1370-1400°C. With superior resistance to pitting, crevice corrosion, and oxidation, these bars ensure durability and reliability, making them ideal for high-temperature and high-pressure applications in harsh industrial environments.
| Specification | ASTM A276, A479 / ASME SA276, SA479 |
|---|---|
| Standard | EN, DIN, JIS, ASTM, BS, ASME, AISI |

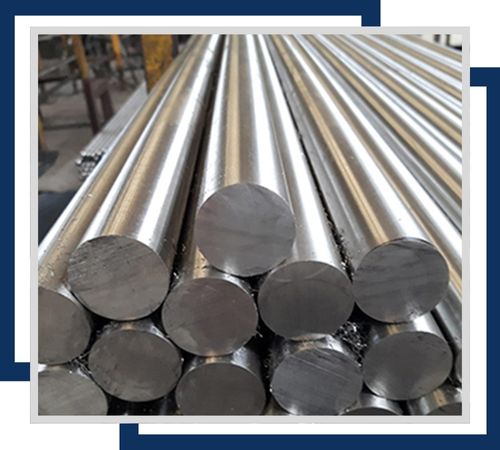

| Round Bars | Outside Diameter in the range of 4mm to 500mm |
| Bright Bars | Outside Diameter in the range of 4mm to 100mm |
| Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) |
| Square Bars | 8mm – 47mm (11/16″ to 1-3/4″) |
| Length | 1 to 6 meters, Custom Cut Length |

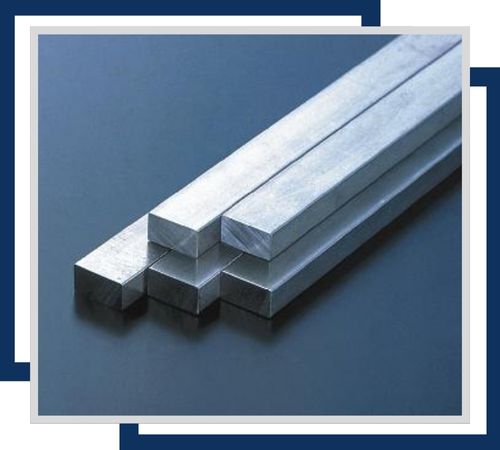

| Form | Round, Square, Hexagonal, Rectangular |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N |
| SS 317L | 0.03 max. | 2.00 max. | 0.75 max. | 0.045 max. | 0.03 max. | 18.0 – 20.0 | 11.0 – 15.0 | 3.0 – 4.0 | 0.1 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | ||
| Rockwell B (HR B) max | Brinell (HB) max | |||||
| 317L | 595 MPa | 260 MPa | 55% | 85 | 200 | – |
Contact us to get a quick quote for your requirement.
We ensures exceptional quality through rigorous testing and certification of stainless steel 317L frames. Each bar undergoes ultrasonic, hardness and tensile strength testing to ensure it meets industry standards. Certified to ISO 9001, EN10204 3.1/3.2, and NABL-accredited laboratory reports, our products guarantee durability, corrosion resistance and reliability for critical applications

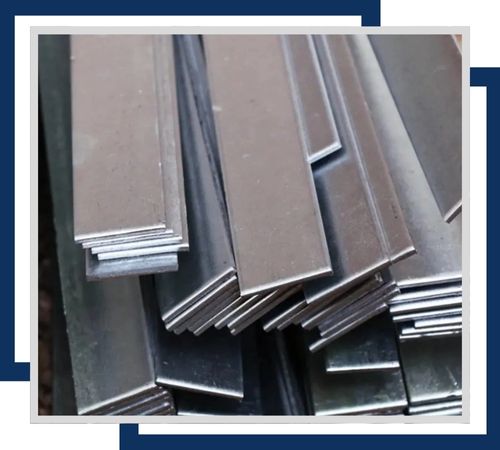

Corrosion-resistant, high-strength bars with a flat profile, offering excellent durability, weldability, and reliability for industrial, structural, and high-temperature applications.

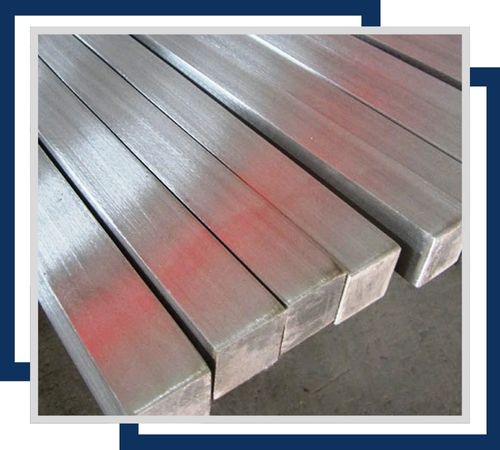

High-strength, corrosion-resistant bars with a square cross-section, offering excellent durability and reliability for structural, marine, and high-temperature industrial applications

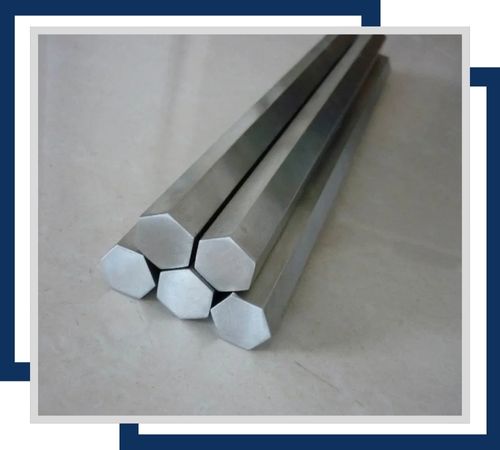

Corrosion-resistant, high-strength bars with a hexagonal shape, offering excellent durability, weldability, and reliability for industrial, marine, and high-temperature applications.

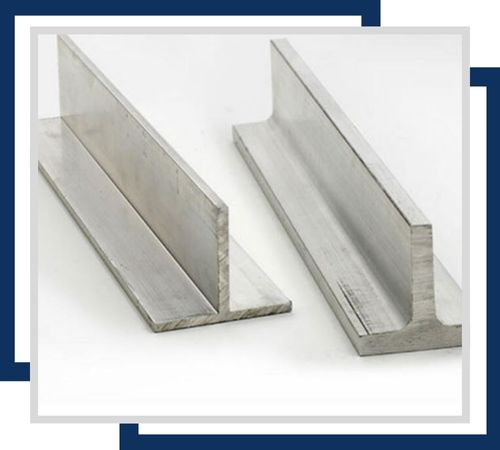

Corrosion-resistant structural bars with a T-shaped profile, offering excellent strength, durability, and oxidation resistance for industrial, marine, and high-temperature applications.
Stainless Steel 317L Bars come with essential test certificates, including Mill Test Certificates (MTC), third-party inspection reports, and compliance certificates like EN 10204 3.1/3.2, ensuring quality and reliability. These bars are securely packaged in wooden crates, bundles, or bubble-wrapped coverings to prevent damage during transit. Proper labeling ensures traceability. Delivery is prompt via air, sea, or road transport, ensuring safe and efficient shipment to industries worldwide.
