Weston Stainless, having a presence in Midland, UK, is a well-known supplier and producer of excellent stainless steel products, serving many industries with precision-made material. The company specializes in Stainless Steel 15-5 PH Bars, prized for their excellent strength, toughness, and corrosion resistance. These bars are produced in Grade 15-5 PH, a precipitation-hardening stainless steel with enhanced mechanical properties. Comes in round, square, and hexagonal sizes, the material is mostly chromium, nickel, and copper, thus very durable and highly performing. The bars find extensive use in aerospace, marine, and industrial applications involving high strength and reliability.
Stainless Steel 15-5 PH Bar consists of about 14-15.5% Chromium, 3.5-5.5% Nickel, 2.5-4.5% Copper, and traces of Manganese, Silicon, and Carbon, with the rest being Iron. Mechanically, it provides tensile strength of up to 1310 MPa, yield strength of about 1180 MPa, and hardness of up to 45 HRC, varying with heat treatment. Its physical characteristics are 7.8 g/cm³ density, 18 W/m·K thermal conductivity, and 90 µΩ·cm electrical resistivity. These characteristics allow it to be used in highly strength– and corrosion-resistant applications in aerospace, marine, and industrial environments.
| Specification : | ASTM A564 / ASME SA564 AMS 5643 |
| Standard : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round Bars : | Outside Diameter in the range of 4mm to 500mm |
| Bright Bars : | Outside Diameter in the range of 4mm to 100mm |
| Hex Bars : | 18mm – 57mm (11/16″ to 2-3/4″) |
| Square Bars : | 18mm – 47mm (11/16″ to 1-3/4″) |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length : | 1 to 6 Meters, Custom Cut Lengths |
| Form : | Round, Square, Hex (A/F), Rectangle Etc. |
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 15-5 PH | 0.07 max | 0.15-0.45 max | 14.0-15.0 max | 2.5-4.5 max | Bal | 1.0 | 3.5-5.5 | 0.04 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 15-5 PH | 161,000 | 140,000 | 7.6% | C35 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat capacity | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.282 | 1.72 | 97 | 0.11 | 0.00000589 | 2560 |
Contact us to get a quick quote for your requirement.
Stainless Steel 15-5 PH Bar has extensive applications in aerospace, marine, defense, and industrial sectors because of its high toughness, strength, and superior corrosion resistance. It finds widespread application in aircraft structural parts, landing gear, and high-performance fasteners. Marine applications include shafts, fittings, and pump parts exposed to aggressive environments. In the defense industry, it is used in weapon systems and ballistic-resistant structures. Secondly, it is used in chemical processing, nuclear reactors, and medical devices. Its better mechanical properties provide it with the best quality for challenging applications where durability and reliability are mandatory.

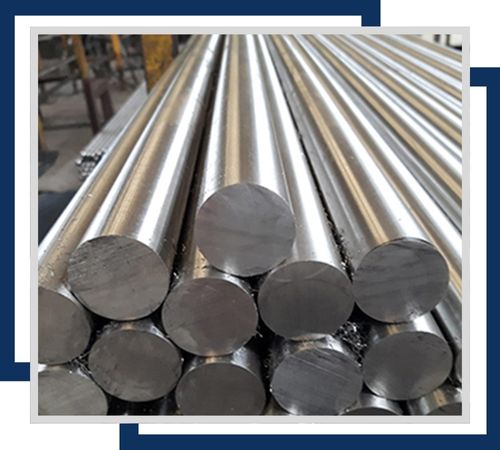

High strength, corrosion resistance, and excellent fatigue properties. It is commonly used in aerospace, chemical, and petrochemical industries. The bar round form is versatile for manufacturing components requiring strength and durability.

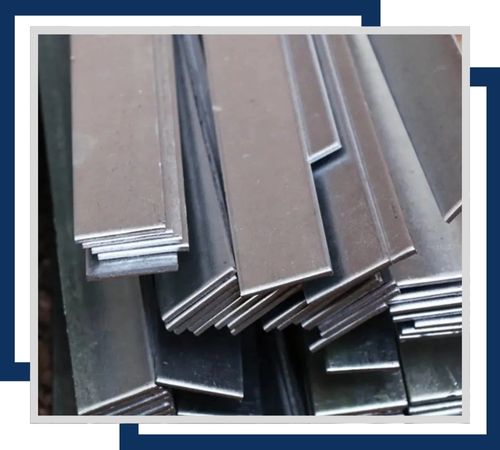

High strength, excellent corrosion resistance, and good fatigue properties. It is widely used in aerospace, chemical, and petrochemical industries for applications requiring superior mechanical performance. Its flat bar form is ideal for structural and precision components.

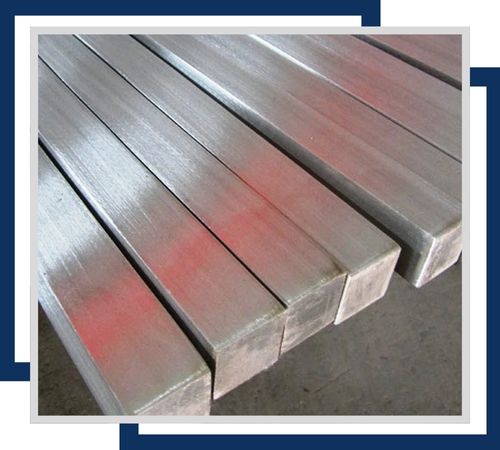

High strength, corrosion resistance, and excellent fatigue properties. It is commonly used in aerospace, chemical, and petrochemical industries. The square bar shape is ideal for applications requiring precise dimensions and enhanced mechanical performance in various structural components.

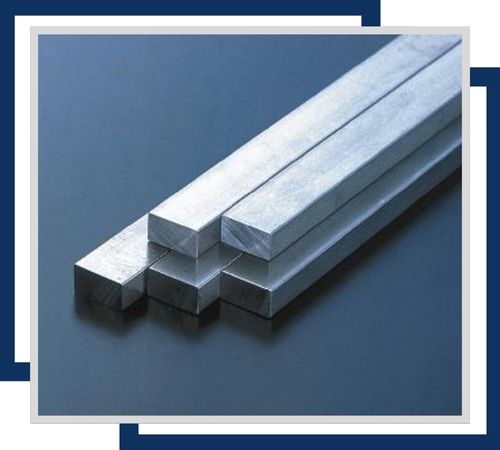

High-strength, corrosion-resistant alloy offering excellent fatigue and mechanical properties. Commonly used in aerospace, chemical, and petrochemical industries, it provides superior performance in harsh environments. The rectangular bar shape is ideal for precise structural applications and components requiring durability and resistance to corrosion.

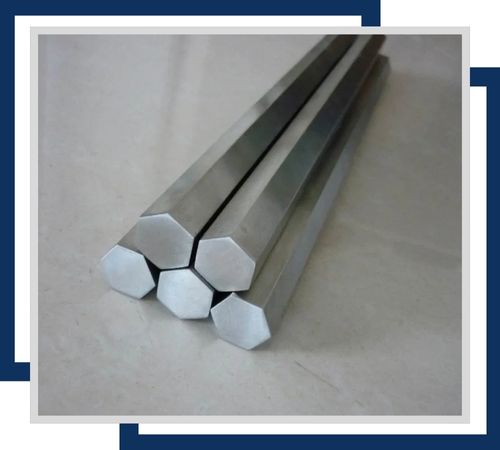

High-strength, corrosion-resistant stainless steel alloy, offering excellent mechanical properties and fatigue resistance. Widely used in aerospace, chemical, and petrochemical industries, the hexagonal bar shape is ideal for applications requiring precise, durable components with enhanced performance and resistance to harsh environments and corrosion.

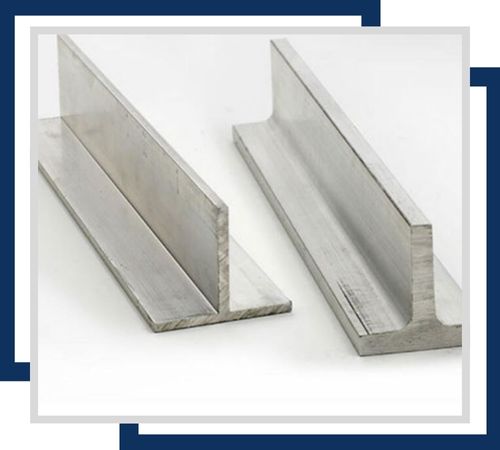

High-strength, corrosion-resistant stainless steel alloy known for its excellent fatigue resistance and mechanical properties. Commonly used in aerospace, chemical, and petrochemical industries, the T-bar shape offers structural integrity and versatility for applications requiring precision, durability, and superior performance in challenging environments.
Stainless Steel 15-5 PH Bars are supplied with test certificates like Mill Test Certificates (MTC) to EN 10204 3.1 or 3.2, third-party inspection reports, and quality assurance documents to ascertain conformity to industry standards. They are packaged safely with wooden crates, pallets, or protective wrapping to avoid damage while shipping. Delivery is prompt, with safe shipping options available for both local and overseas markets to facilitate timely supply.
