Weston Stainless, Midland, UK is a well-known manufacturer and supplier of high-quality stainless steel products, delivering durable and corrosion-resistant solutions for various industrial applications. Their Stainless Steel 316Ti Bars, made from Grade 316Ti (Titanium Stabilized Stainless Steel), offer excellent strength, heat resistance, and corrosion protection. These bars are available in various shapes such as round bars, square bars, hex bars, flat bars, and threaded bars, ensuring reliable structural support. The 316Ti material enhances high-temperature strength and resistance to intergranular corrosion, making them ideal for marine, chemical, and industrial applications.
Stainless Steel 316Ti Bars are composed of 16-18% Chromium, 10-14% Nickel, 2-3% Molybdenum, 0.5% Titanium, ≤0.08% Carbon, 2% Manganese, 1% Silicon, 0.045% Phosphorus, and 0.03% Sulfur, providing high strength, corrosion resistance, and heat resistance. Their mechanical properties include a tensile strength of 515 MPa, yield strength of 205 MPa, and elongation of 40%, ensuring excellent durability. The physical properties feature a density of 7.98 g/cm³, melting point of 1370°C, and thermal conductivity of 16.3 W/m·K, making these bars ideal for high-temperature and corrosive environments.
| Standard | ASTM A276, A479 / ASME SA276, SA479 |
|---|---|
| Range | 3.17 MM TO 350 MM DIA |
| Diameter | 25mm to 152mm |
| Size Tolerance | h8, h9(DIN 671), h10, h11, ASTM A484, DIN 1013 |
| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc. |
| Condition | Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Stainless Steel 316Ti Bars are widely used in high-temperature, corrosive, and heavy-load environments due to their exceptional strength, heat resistance, and corrosion protection. These bars are ideal for marine, chemical, and petrochemical industries for manufacturing heat exchangers, pressure vessels, condensers, and boiler parts. They are also commonly used in oil & gas, power generation, and offshore industries for structural support and machinery components. Additionally, food processing, pharmaceutical, and desalination plants prefer these bars for their hygienic properties and high corrosion resistance, ensuring long-lasting performance and structural reliability.

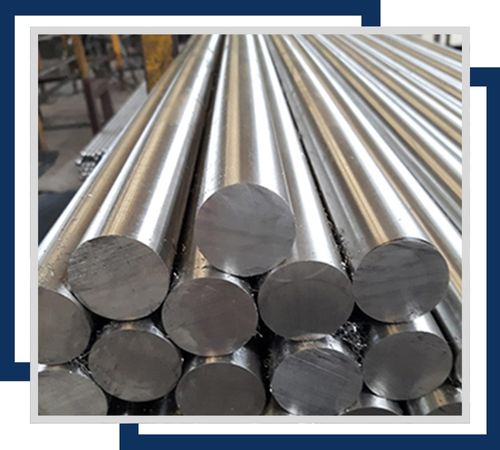

Stainless Steel 316Ti Round Bars offer excellent corrosion resistance, high strength, and heat resistance, making them ideal for marine, chemical, and high-temperature industrial applications.

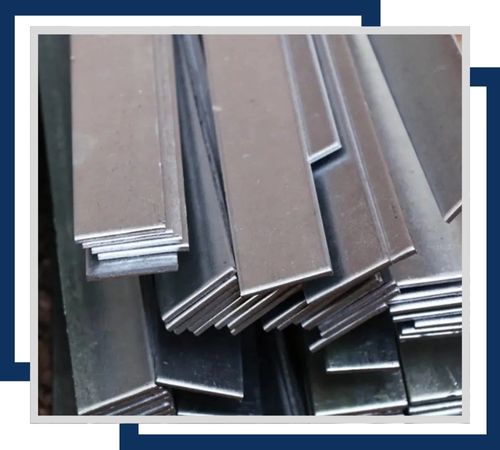

Stainless Steel 316Ti Flat Bars offer excellent corrosion resistance, high strength, and heat resistance, ideal for structural support, fabrication, and industrial applications in harsh environments.

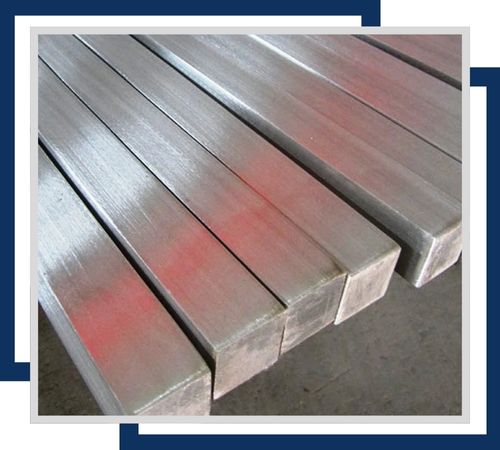

Stainless Steel 316Ti Square Bars offer excellent corrosion resistance, high strength, and heat resistance, making them ideal for structural, industrial, and high-temperature applications in demanding environments.
Stainless Steel 316Ti Hexagonal Bars offer high strength, corrosion resistance, and heat durability, making them ideal for marine, chemical, and industrial structural applications in harsh environments.
Stainless Steel 316Ti Hexagonal Bars offer high strength, corrosion resistance, and heat durability, making them ideal for marine, chemical, and industrial structural applications in harsh environments.
Stainless Steel 316Ti Bars are supplied with Mill Test Certificates (MTC) as per EN 10204/3.1B, Raw Material Test Certificates, Third-Party Inspection Reports, and Radiography Test Reports, ensuring high-quality standards and material traceability. These bars are securely packed in wooden crates, bundles, or bubble wraps to prevent any damage during transit. Timely delivery is ensured worldwide with proper labeling, export documentation, and standard packaging, meeting customer requirements and international shipping standards.
