Weston Stainless, based in Midland, UK, is a reputable supplier of high-quality stainless steel products, offering durable and precision-engineered solutions for various industries. The company is committed to providing materials that meet international standards, ensuring superior performance and reliability. Stainless Steel 310H Bars, made from Grade 310H stainless steel, are designed for high-temperature and corrosion-resistant applications. Available in different shapes such as round, square, flat, and hex bars, they contain high chromium and nickel content, providing excellent oxidation resistance. These bars are widely used in petrochemical plants, power generation, heat exchangers, and furnace applications.
| Specifications | ASTMA276 / A479, ASME SA276 / A479 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM. BS, ASME, AISI |
| SS 310H Round Bar | Outside Diameter in the range of 4mm to 500mm |
| SS 310H Bright Bar | Outside Diameter in the range of 4mm to 100mm |
| SS 310H Hex Bar | 18mm – 57mm (11/16″ to 2-3/4″) |
| SS 310H Square Bars | 18mm – 47mm (11/16″ to 1-3/4″) |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1 to 6 Meters, Custom Cut Length |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 310H | 0.10 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 24.0 – 26.0 | – | 19.0 – 21.0 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness Rockwell B (HR B) max | Hardness Brinell (HB) max |
| 310H | 515 | 205 | 40 | 217 | 92 |
Contact us to get a quick quote for your requirement.
Stainless Steel 310H Bars are composed of approximately 24-26% Chromium, 19-22% Nickel, 2% Manganese, 0.04-0.10% Carbon, 1.50% Silicon, 0.045% Phosphorus, and 0.03% Sulfur, ensuring excellent high-temperature and oxidation resistance. Their mechanical properties include a tensile strength of 515 MPa, yield strength of 205 MPa, and elongation of 40%, providing durability and structural stability. With a density of 7.9 g/cm³, a melting point of 1400-1450°C, and thermal conductivity of 14.2 W/m·K, these bars are ideal for applications in power plants, petrochemical industries, heat exchangers, furnace components, and thermal processing units.

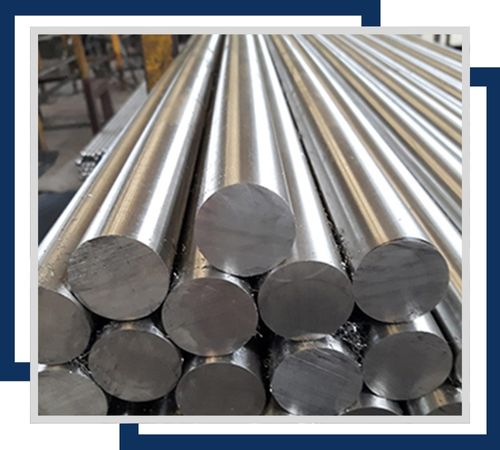

Exceptional heat resistance, with diameters ranging from 10mm to 500mm. Ideal for high-temperature applications, such as furnace components and heat exchangers, they provide superior durability and performance.

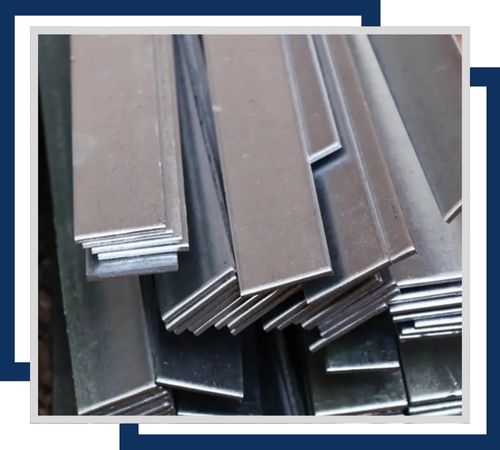

Available in thicknesses from 5mm to 100mm and widths from 20mm to 300mm. Suitable for structural and industrial applications, they deliver high strength and resistance to elevated temperatures.

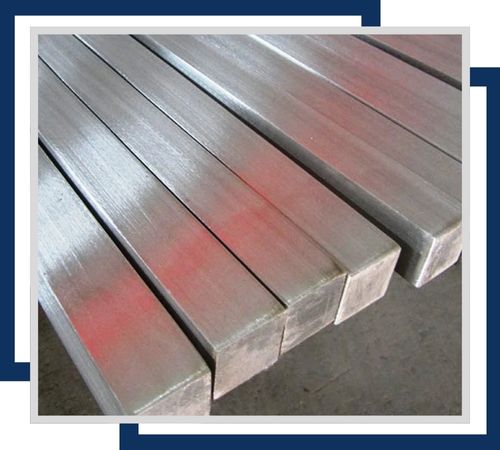

Ranging from 10mm to 150mm, are designed for extreme heat environments. These bars are commonly used in furnace parts and high-temperature equipment, providing excellent thermal stability and strength.

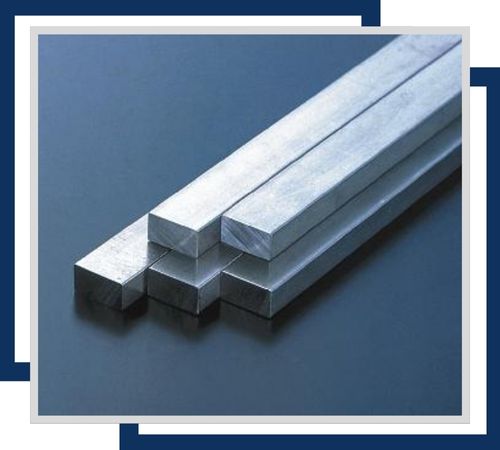

Thicknesses from 5mm to 75mm and widths from 20mm to 200mm. Ideal for structural supports and high-temperature applications, they offer durability and reliable performance.

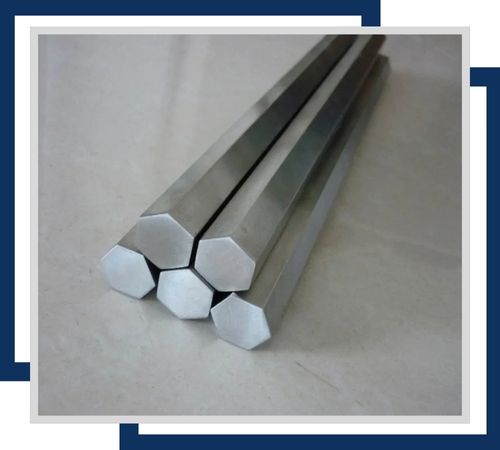

Dimensions from 10mm to 100mm across flats, are perfect for high-heat applications. These bars provide excellent heat resistance and are used in various industrial settings.
Available in various forms and sizes, including round, flat, square, and hexagonal. They offer superior heat resistance and are ideal for use in high-temperature environments, ensuring long-term durability and performance.
Stainless Steel 310H Bars are widely used in high-temperature and corrosion-resistant applications. They are essential in petrochemical plants, power generation facilities, and refineries, where they provide structural strength and durability in extreme environments. In the aerospace and automotive industries, they are used in exhaust systems, engine components, and heat exchangers due to their excellent heat resistance. These bars are also crucial in furnace construction, industrial boilers, and thermal processing units. Their superior oxidation resistance makes them ideal for chemical processing, offshore oil and gas applications, and high-temperature fabrication in various industries.
