Weston Stainless, Midland, UK, is a prominent distributor of high-grade stainless steel products with a specialization in precision-manufactured components for a variety of industries. Stainless Steel 304H Pipe Fittings are one of the popular products widely adopted due to their superior high-temperature strength and resistance to corrosion. These fittings are produced from Grade 304H stainless steel, which contains higher carbon content, to provide greater durability and mechanical properties. They come in a range of shapes like elbows, tees, reducers, couplings, and caps to suit different industry applications. The chemical makeup of 304H stainless steel gives them an even better performance, and hence these fittings are best suited for chemical, petrochemical, power generation, and marine applications.
Stainless Steel 304H Pipe Fittings consist of carbon (0.04-0.10%), chromium (18-20%), nickel (8-11%), manganese (≤2%), silicon (≤1%), phosphorus (≤0.045%), and sulfur (≤0.03%), offering improved high-temperature strength and corrosion resistance. Their mechanical properties are tensile strength of ≥515 MPa, yield strength of ≥205 MPa, elongation of ≥40%, and hardness of ≤201 Brinell (HB). The physical characteristics include a density of 8.0 g/cm³, melting point of 1400-1450°C, thermal conductivity of 16.2 W/m·K, and electrical resistivity of 720 nΩ·m, which suit them for high–pressure and heat–intensive applications.
| Grades | 201, 202, 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Size | ½”NB to 48″NB in |
| Schedule | Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.
Stainless Steel 304H Pipe Fittings consist of carbon (0.04-0.10%), chromium (18-20%), nickel (8-11%), manganese (≤2%), silicon (≤1%), phosphorus (≤0.045%), and sulfur (≤0.03%), offering improved high-temperature strength and corrosion resistance. Their mechanical properties are tensile strength of ≥515 MPa, yield strength of ≥205 MPa, elongation of ≥40%, and hardness of ≤201 Brinell (HB). The physical characteristics include a density of 8.0 g/cm³, melting point of 1400-1450°C, thermal conductivity of 16.2 W/m·K, and electrical resistivity of 720 nΩ·m, which suit them for high–pressure and heat–intensive applications.

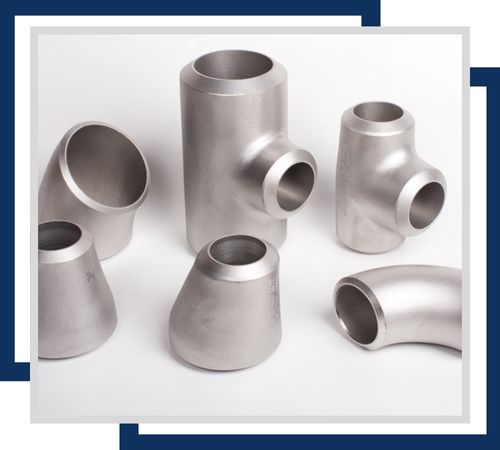

high-strength components designed for high-temperature and high-pressure applications. They offer excellent corrosion resistance and durability, making them suitable for demanding industrial and chemical environments.

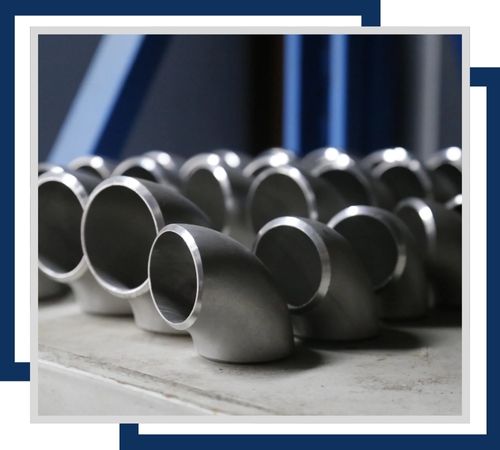

Designed to connect pipes by welding their ends together. They provide strong, durable joints with excellent corrosion resistance for high-temperature applications.

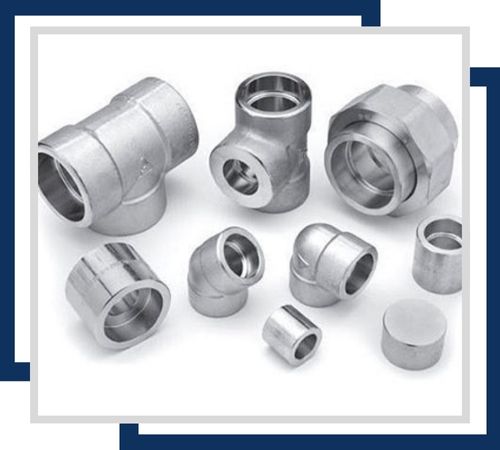

Stainless steel components that connect pipes by fitting them into a socket and welding around the joint. They ensure strong, leak-proof connections in high-temperature applications.

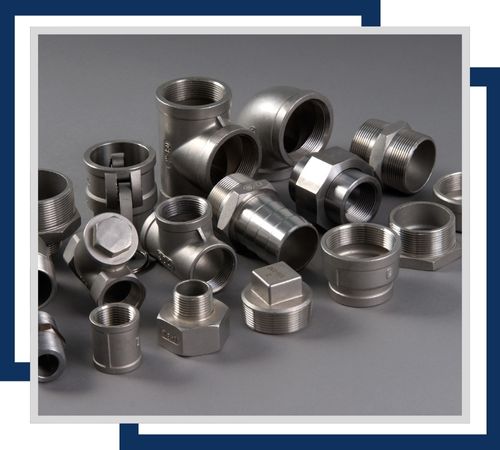

High-strength, corrosion-resistant components manufactured without welds. They provide uniformity and reliability, making them ideal for high-pressure and high-temperature applications in industrial systems.

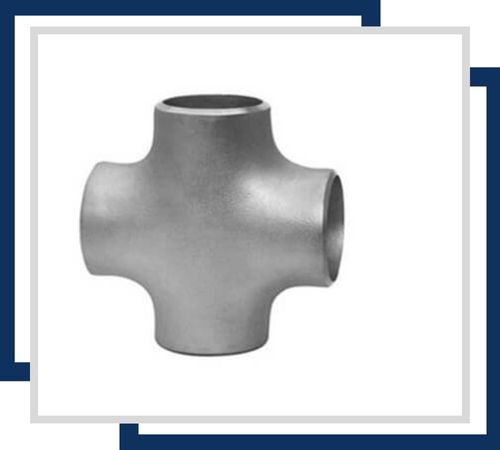

Designed to connect four pipes at a cross-shaped junction. It offers durability, strength, and excellent corrosion resistance, suitable for high-pressure and high-temperature applications.

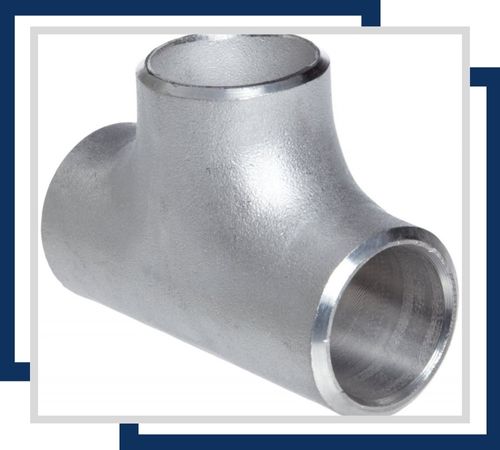

Designed to join three pipes at a T-shaped junction. They offer high strength, durability, and excellent corrosion resistance, making them ideal for high-pressure and high-temperature applications.
Stainless Steel 304H Pipe Fittings are shipped with test certificates, such as Mill Test Certificate (MTC) according to EN 10204 3.1/3.2, inspection reports by a third party, and raw material test certificates to ensure adherence to industry standards. They are properly packaged in wooden crates, cartons, or pallets, with protective coverings and labeling to avoid damage during shipping. Delivery is prompt and reliable, with customized shipping arrangements to suit international industrial and commercial projects.
