Home > Pipe Fittings > Stainless Steel 17-7 Ph Pipe Fittings

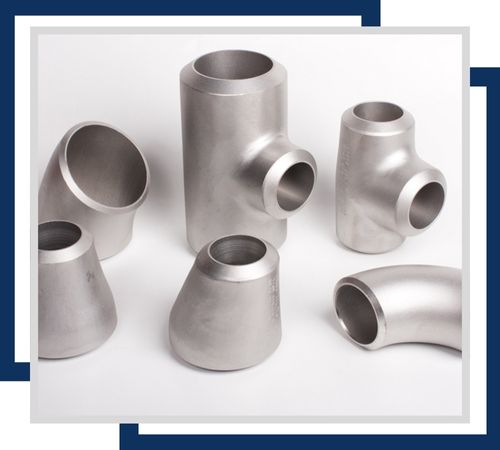

Weston Stainless, Midland, UK, is a premier distributor of stainless steel products of high quality, providing long-lasting and precision-fabricated solutions for numerous industries. Stainless Steel 17-7 PH Pipe Fittings are produced from a precipitation-hardening chromium-nickel-aluminum alloy, offering high strength, corrosion resistance, and excellent fatigue properties. These fittings are available in different shapes, such as elbows, tees, reducers, couplings, and caps, and are suitable for aerospace, chemical, marine, and industrial applications. 17-7 PH grade guarantees high hardness, superior wear resistance, and good formability, thus making these pipe fittings extremely reliable for challenging environments calling for strength and durability.
Stainless Steel 17-7 PH Pipe Fittings are made of 16-18% Chromium, 6.5-7.75% Nickel, 0.75-1.5% Aluminum, 1% Manganese, 1% Silicon, 0.09% Carbon, 0.04% Phosphorus, and 0.03% Sulfur. They possess tensile strength up to 1034 MPa, a yield strength of 724 MPa, and an elongation of 6-10%, making their mechanical properties quite excellent. Physically, they possess a density of 7.8 g/cm³, a melting point of 1400-1450°C, and a thermal conductivity of 16.3 W/m·K. They are thus well-suited for high-strength applications that demand excellent corrosion and fatigue resistance.
| Grade | Properties | Imperial |
|---|---|---|
| 17-7 PH | Density | 7.80 g/cm3 |
| Tensile strength | 170000 psi | |
| Yield strength | 140000 psi | |
| Modulus of elasticity | 29600 ksi |
| TYPE | Cr | Ni | Al | C | Mn | P | S | Si |
|---|---|---|---|---|---|---|---|---|
| 17-7 | min: 16.0 max: 18.0 | min: 6.75 max: 7.75 | min: 0.75 max: 1.50 | 0.09 max | 1.00 max | 0.05 max | 0.03 max | 1.00 max |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
|---|---|---|---|---|
| 17-7 | 130 | 40 | 35 | B85 |
Contact us to get a quick quote for your requirement.
Stainless Steel 17-7 PH Pipe Fittings are extensively applied in applications that demand high strength, corrosion resistance, and superior fatigue properties. In aircraft structural components, hydraulic systems, and engine assemblies in the aerospace industry, Stainless Steel 17-7 PH Pipe Fittings are utilized. They are also used by the chemical and petrochemical industries in piping systems for corrosive fluid and gas transportation. They also find application in marine applications, defense hardware, and power generation because of their hardness and resistance to aggressive environments. They are also incorporated in industrial equipment, food processing, and medical equipment to provide long-lasting performance in harsh and high-stress environments.
High-strength, corrosion-resistant components designed for high-stress and high-temperature applications. They offer durability and reliability in aerospace, automotive, and industrial environments.

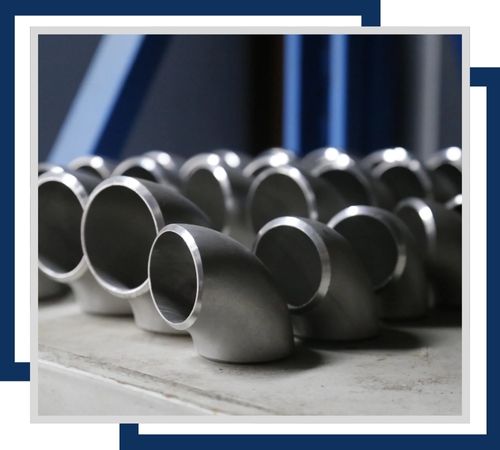

High-strength, corrosion-resistant components used for seamless, strong pipe connections. They ensure durability and performance in high-stress and high-temperature applications.

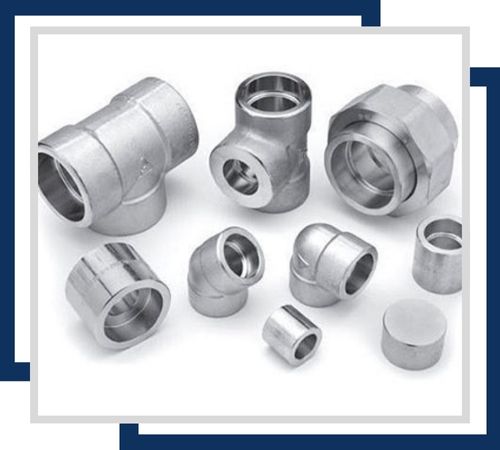

High-strength, corrosion-resistant components providing secure, leak-proof connections. They are ideal for high-pressure and high-temperature applications, ensuring durability and reliability.

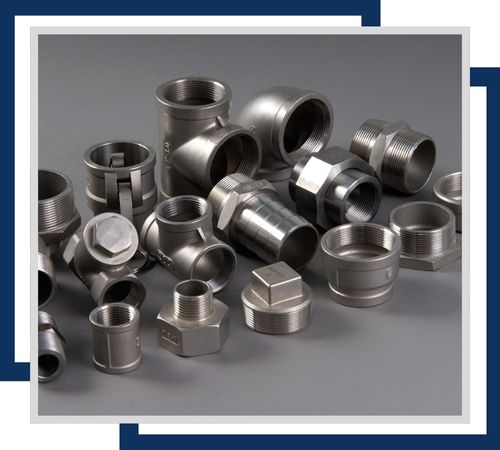

High-strength, corrosion-resistant components crafted without joints. They provide robust, leak-proof connections, ideal for high-stress and high-temperature applications, ensuring long-term durability.

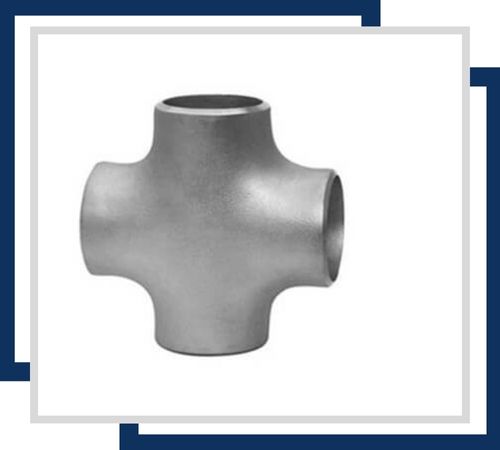

High-strength, corrosion-resistant components designed to connect four pipes at a central junction. They ensure strong, reliable connections in high-temperature and high-stress environments.

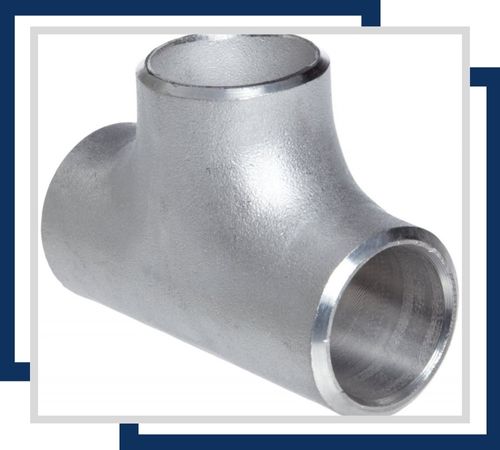

Connect three pipes at a right angle, offering high strength and corrosion resistance. They are ideal for high-stress, high-temperature applications, ensuring durability and reliability.
Test certificates like Mill Test Certificates (MTC) in accordance with EN 10204/3.1, third-party inspection reports, and traceability documents for the material are provided with Stainless Steel 17-7 PH Pipe Fittings to comply with standards in the industry. They are packaged safely in wooden crates, bubble wrap, or corrosion-resistant coatings to avoid damage during shipping. Air, sea, and road transport facilities are available for delivery to ensure timely and safe delivery to domestic as well as international customers.
