Weston Stainless, Midland, UK, is a reliable supplier of high-quality stainless steel products to various industries with corrosion-resistant and durable materials. Among their products, Stainless Steel 304L Stud Bolts are famous for their high strength, weldability, and oxidation resistance. The 304L grade is a low-carbon austenitic stainless steel made of iron, 18-20% chromium, 8-12% nickel, and a limiting 0.03% carbon, which provides excellent corrosion resistance. These fasteners are available in various forms, including threaded and double-ended stud bolts, and are widely used in construction, marine, chemical processing, and high-temperature applications for their reliability and durability.
Stainless Steel 304L stud bolts consist of iron with 18-20% chromium, 8-12% nickel, up to 0.03% carbon, and trace amounts of manganese, silicon, phosphorus, and sulfur, with enhanced corrosion and longevity. The mechanical properties are a tensile strength of 485 MPa, yield strength of 170 MPa, and elongation of 40%, which provides firm structural strength. The physical properties consist of a density of 7.9 g/cm³, melting point of 1400-1450°C, and thermal conductivity of 16.2 W/m·K. These provide 304L stud bolts as the perfect fit for marine, chemical, and structural use for long-term strength.
| Specification | ASTM A 193/ASME SA 193 |
| Standard | all International Standards and ASTM, DIN, BS |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 550 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

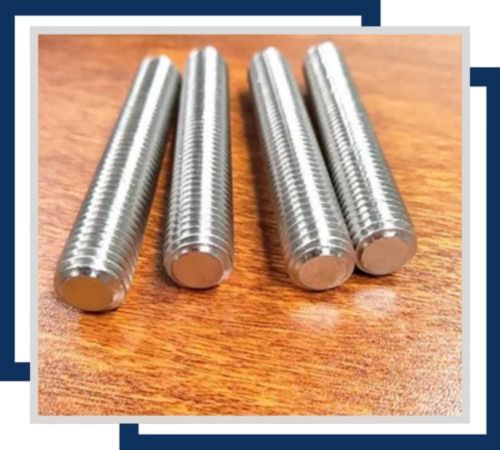

Exceptional strength and corrosion resistance. Designed for high-performance applications, they ensure durable and secure connections with precise threading and high-quality stainless steel.

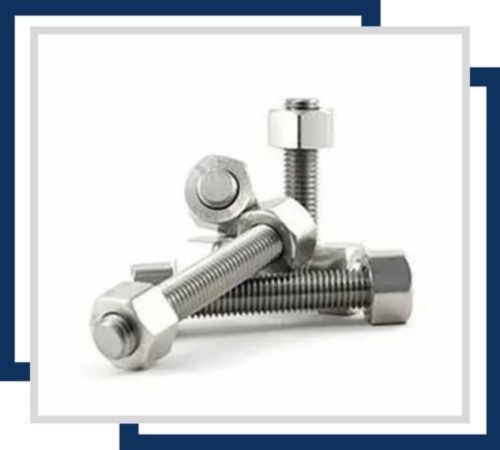

Outstanding durability and resistance to corrosion. Perfect for demanding applications, they offer secure, reliable connections with high-strength performance and precision threading.

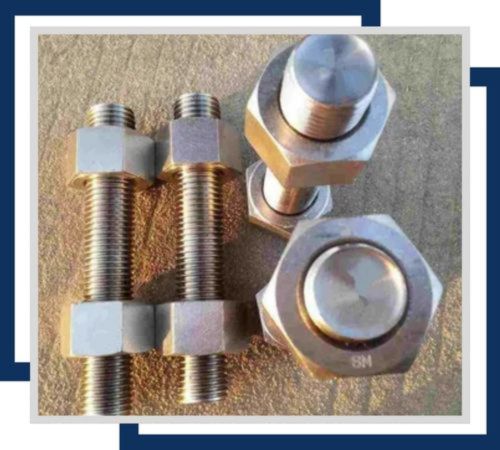

Durability and sleek design, offering excellent corrosion resistance and strength. Their flush head allows for a clean, streamlined installation in tight spaces.
Stainless Steel 304L Stud Bolts have widespread uses in industries due to high corrosion resistance, strength, and durability. They are employed in marine, chemical processing, and food processing industries due to their high oxidation and chemical resistance. They are employed on a large scale in construction, bridges, and structural applications where reliability is the most important factor. They are employed in heat exchangers, boilers, and piping systems in power plants and refineries. They are weldable due to their low-carbon content, making them ideal for use in pressure vessels, water treatment plants, and high-temperature applications without compromising the structural integrity.
Stainless Steel 304L Stud Bolts are delivered with test certificates such as Mill Test Certificates (MTC) as per EN 10204 3.1/3.2, third-party inspection reports, and material traceability documents for quality compliance. Safe packaging is in wooden boxes, cartons, and plastic wraps to prevent damage during transit. Delivery is timely, providing domestic and overseas markets with labeling, handling, and safe transportation for safe and timely delivery.
