SMO 254 Stud Bolts Manufacturer in Midland, UK

Home > Stud Bolts > SMO 254 Stud Bolts

SMO 254 Stud Bolts Supplier in West Midland, 254 SMO Stud Bolts Manufacturer in London, SMO 254 Bolts Exporter in Birmingham, SMO 254 Stud Bolts Liversedge, SMO 254 Stud Bolts Dealer In Manchester, F44 254 SMO Stud Bolts Nottingham, SMO 254 Bolts Supplier in Midland, UK.

Weston Stainless, Midland, UK, is a prominent supplier and manufacturer of stainless steel products of high quality, catering to diverse industries with precision-engineered materials. Its specialty lies in SMO 254 Stud Bolts, which are renowned for their extraordinary strength, corrosion resistance, and long life. These stud bolts are made of Grade SMO 254, a high-alloyed austenitic stainless steel with excellent resistance to pitting and crevice corrosion. In fully threaded, double-end, and tap-end forms, the material is mostly made up of chromium, nickel, molybdenum, and nitrogen. SMO 254 Stud Bolts are used extensively in marine, chemical, and offshore sectors demanding high-performance fasteners.

ASTM A320 SS SUS SMO 254 Half Threaded Studs Bolts Price In West Midland, Get the best price from SMO 254 Stud Bolts manufacturers & stockist in Birmingham, F44 254 SMO Stud Bolts Dealer In Manchester, SMO 254 Stud Bolts Nottingham, SMO 254 Stud Bolts Liversedge, ASTM A320 SS SUS SMO 254 Half Threaded Studs Bolts Price In West Midland, Stainless Steel SMO 254 Double End Stud Bolts Manufacturer In Midland, UK.

SMO 254 Stud Bolts contain around 19.5-20.5% Chromium, 17.5-18.5% Nickel, 6-6.5% Molybdenum, 0.18-0.22% Nitrogen, trace amounts of Manganese, Silicon, Phosphorus, Sulfur, and Carbon, and the balance Iron. Their mechanical properties are tensile up to 650 MPa, yield strength of about 300 MPa, hardness up to 100 HB, and elongation of 35%. Their physical characteristics are a density of 8 g/cm³, thermal conductivity of 14.5 W/m·K, and an electrical resistivity of 85 µΩ·cm. These make them well-suited for applications in high-corrosion, high-strength environments in harsh conditions.

SMO 254 Stud Bolts Specifications

SMO 254 Stud Bolt Specifications	ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472
SMO 254 Stud Bolt Dimensions	ASTM,DIN, BS,GB, IS and all International Standards
SMO 254 Stud Bolt Length	3 mm to 200 mm
SMO 254 Stud Bolts Size	M02 to M33 \| Custom Sizes
SMO 254 Stud Bolt Type	Stud Bolts, Heavy Stud bolt, Tie Bar, Tie Rod, Continuous Threaded Stud Bolts (Fully Threaded Studs without Chamfered Ends), Tap End Stud Bolts, Double End Stud Bolts, Double End Stud Bolts with Reduced Shank, Flange Stud Bolts (Fully Threaded Studs with Chamfered Ends), MS Stud Bolts, Metric Thread Stud Bolt, Rough Forged Stud Bolts, Stud Half Thread Bolts etc.
SMO 254 Stud Bolts Coating	PTFE Coating : Flouropolymer, FlouroCarbon, Xylan 1000 / 1014 / 1070 / 1400 / 1424 / 1427 / 1052 / 5230 / 5250 / 5611 Ceramic PTFE coating : FlouroCarbon Polymer, Xylar 1 / 101 / 2 / 201, TakeCoat 1000 / TakeCoat Ceramic 1, Sermagard 1105 / Sermagard 1280, ASTM F1428 Silver Coating : 99.9% Pure Silver, RoHS Compliant, Matte, Semi Bright and Bright finish, QQ-S-365, ASTM B700, AMS 2410 / 2411 Dacromet Coating : Dacromet 320 / 500 / ID / T, DacroBlack 107 / 127 / 135, DacroLub 15 /10, Zinc Flake Coating, Aluminium Flake Coating, ASTM F1136M, EN 13858, EN ISO 10683 Cadmium Plating : ElectroPlating, Metallic Coating, ASTM A165 / B766, ISO 4521, SAE AMS 2400/ 2401, QQ-P-416, PN 13.8, M-032-P Zinc Phosphate Coating : AntiGalling, Basecoat for PTFE Fluorocarbon Coating, ASTM F1137 / D6280, Strong Adhesion and Corrosion Protection

SMO 254 Stud Bolts Chemical Composition

SMO 254	Ni	C	Mo	Mn	Si	Fe	Cu	S	P	Cr
SMO 254	17.5 – 18.5	0.02 max	6 – 6.5	1 max	0.8 max	–	0.5 – 1	0.01 max	0.03 max	19.5 – 20.5

SMO 254 Stud Bolts Mechanical Properties

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.0 g/cm3	1320-1390 ℃	300	650	35 %

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Why Choose SMO 254 Bolts From Weston Stainless?

Largest Inventory

Customer Support

On Time Deliveries

ISO Certified

Types of SMO 254 Stud Bolts

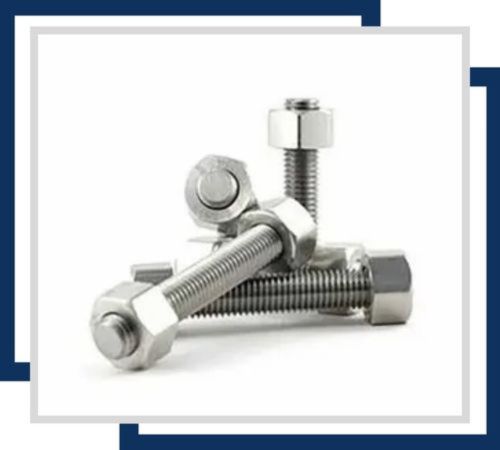

254 SMO Eye Stud Bolts

Superior corrosion resistance and strength, ideal for extreme environments. Their robust performance and durability make them suitable for demanding marine and industrial applications.

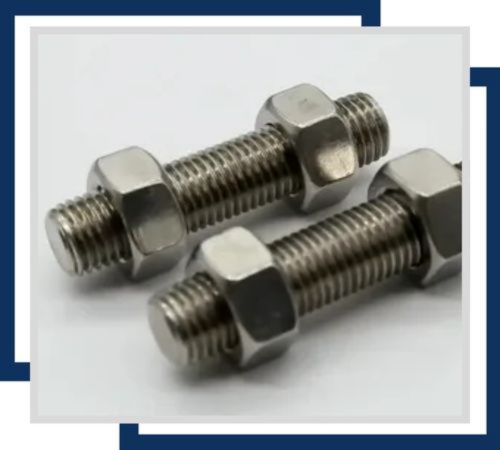

UNS S31254 F44 Hex Stud Bolts

High-performance 254 SMO alloy, offer exceptional resistance to corrosion and high strength. They are ideal for challenging industrial and marine environments.

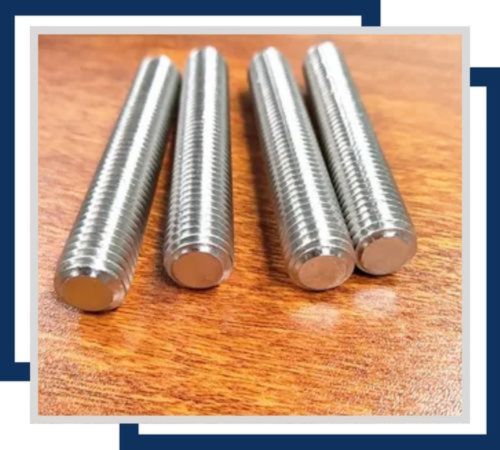

254 SMO Stainless Steel Lock Stud Bolts.

Exceptional strength and resistance to severe corrosion. Their reliable performance in extreme environments makes them perfect for critical applications in marine and industrial settings.

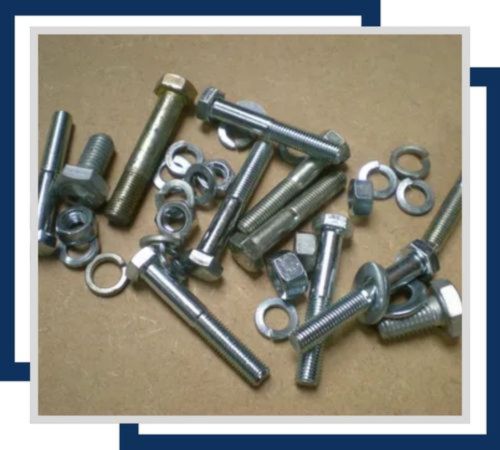

Stainless Steel S31254 1.4547 Square Stud Bolts

Outstanding corrosion resistance and strength, making them ideal for harsh environments. Their robust design ensures reliable performance in demanding industrial and marine applications.

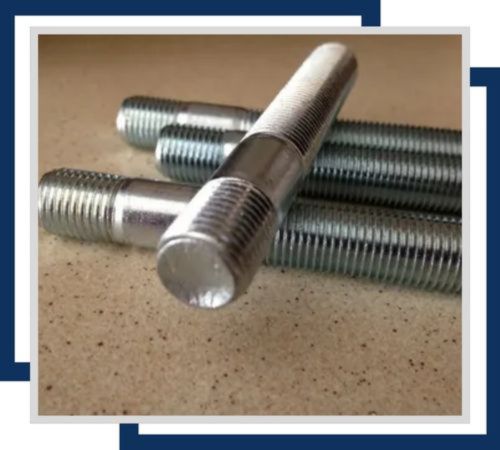

ASTM B479 SMO 254 Panel Stud Bolts

Exceptional strength and corrosion resistance, ideal for high-demand environments. Their durability and reliability make them perfect for industrial and marine panel installations.

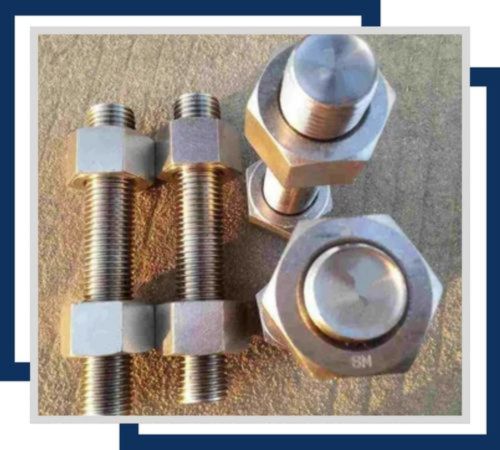

Uns S31254 Stud Bolts

High-performance 254 SMO stainless steel, offer superior corrosion resistance and strength. They are ideal for demanding industrial and marine applications where durability is crucial.

SMO 254 Stud Bolts are used extensively in applications where higher corrosion resistance, strength, and durability are needed. They find applications in marine conditions, offshore oil and gas platforms, and seawater desalination plants because of their good resistance to chloride-induced corrosion. In chemical and petrochemical industries, they are applied in heat exchangers, pressure vessels, and reactors for processing aggressive chemicals. These stud bolts are also used in power generation, pulp and paper manufacturing, and food processing facilities where high performance fasteners are necessary to endure high temperatures, high pressures, and corrosive elements.

ASTM A320 SS SUS SMO 254 Half Threaded Studs Bolts Birmingham, ASTM A320 SS SUS SMO 254 Half Threaded Studs Bolts Price In West Midland, UNS S31254 SS Single End Stud Bolts Price In London, SMO 254 Stud Bolts Dealer In Manchester, SMO 254 Stud Bolts Liversedge, SMO 254 Stud Bolts Nottingham, UNS S31254 SS Single End Stud Bolts London, Stainless Steel SMO 254 Fasteners Suppliers in Midland, UK.

SMO 254 Stud Bolts Uses

SMO 254 Stud Bolts include test certificates like Mill Test Certificates (MTC) to EN 10204 3.1 or 3.2, third-party inspection certificates, and quality assurance certificates ensuring adherence to industrial standards. The SMO 254 Stud Bolts are tightly packaged in wood crates, cartons, or protective cover to avoid damage while shipping. They are delivered promptly with dependable shipment facilities available in the domestic market as well as the international market to provide an uninterrupted supply of SMO 254 Stud Bolts.
