Home > Stud Bolts > Stainless Steel 304H Stud Bolts

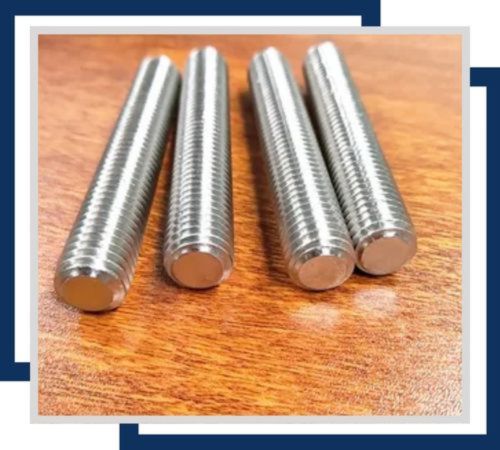

Weston Stainless, Midland, UK, is a reliable distributor of stainless steel products of highest quality, with specialization in precision-made fasteners for the different industries. Of their products, Stainless Steel 304H Stud Bolts are extensively utilized in high-temperature services because of their good strength and corrosion resistance. They are made of Grade 304H stainless steel with high carbon content for a more durable product. They are available in different shapes such as fully threaded, double-ended, and tap-end to meet different industrial applications. The material makeup of 304H stainless steel guarantees higher mechanical properties to make these stud bolts suitable for pressure vessels, heat exchangers, and power plants.
Stainless Steel 304H Stud Bolts consist of carbon (0.04-0.10%), chromium (18-20%), nickel (8-11%), manganese (≤2%), silicon (≤1%), phosphorus (≤0.045%), and sulfur (≤0.03%), which adds to the strength and resistance against corrosion. Their physical properties are tensile strength of ≥515 MPa, yield strength of ≥205 MPa, elongation of ≥40%, and hardness of ≤217 Brinell (HB). The physical characteristics have a density of 8.0 g/cm³, melting point of 1400-1450°C, thermal conductivity of 16.2 W/m·K, and electrical resistivity of 720 nΩ·m, making them suitable for high-temperature applications.
| Grade | Stainless Steel 304, 304H, 304L |
| Specifications | ASTM A193 / ASME SA193 |
| Standard | DIN, ASTM, BS and all International Standards |
| Length | 3mm to 200mm |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Types | Threaded Rod, Class A double ended stud, Tie Rod, Double Ended Stud, Stud Bolts, Bronze Hex Studs, Threaded Studs |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | – | 10.5 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
Contact us to get a quick quote for your requirement.
Superior strength and corrosion resistance, adhering to DIN standards. Ideal for general-purpose applications, they ensure reliable performance in various industrial settings.
High strength and excellent resistance to corrosion and high temperatures. Suitable for demanding industrial applications, they ensure durability and reliability in challenging environments.

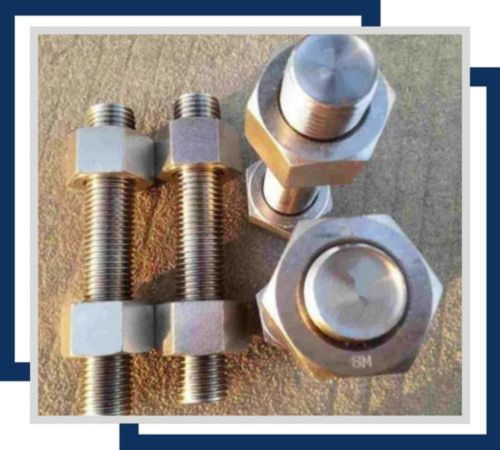

High strength with a sleek, flush design, ideal for applications requiring minimal protrusion. They offer excellent corrosion resistance and durability in harsh environments.
Stainless Steel 304H Stud Bolts consist of carbon (0.04-0.10%), chromium (18-20%), nickel (8-11%), manganese (≤2%), silicon (≤1%), phosphorus (≤0.045%), and sulfur (≤0.03%), which adds to the strength and resistance against corrosion. Their physical properties are tensile strength of ≥515 MPa, yield strength of ≥205 MPa, elongation of ≥40%, and hardness of ≤217 Brinell (HB). The physical characteristics have a density of 8.0 g/cm³, melting point of 1400-1450°C, thermal conductivity of 16.2 W/m·K, and electrical resistivity of 720 nΩ·m, making them suitable for high-temperature applications.
Stainless Steel 304H Stud Bolts are supplied with test certificates, such as Mill Test Certificate (MTC) according to EN 10204 3.1/3.2, third-party inspection reports, and raw material test certificates, to ensure quality compliance. They are safely packed in wooden boxes, cartons, or pallets with appropriate labeling to avoid damage. Delivery is timely and reliable, serving global industries with customized shipping options to suit project needs efficiently.
