Home > Stainless Steel Diaphragm Valves
Weston Stainless, Midland, UK-based is a reliable manufacturer and supplier of high-quality stainless steel flow control solutions to the industry with precision and reliability. Our SS Diaphragm Valves are precision-engineered using high-quality stainless steel materials. Which are renowned for their unparalleled corrosion resistance and lifespan in hygienic and aggressive conditions. Made with a weir-type or straight-through body configuration, these valves offer leak-proof flow control and are best suited for use in pharmaceuticals, food processing, water treatment, and chemical industries where cleanliness, reliability, and durable performance are paramount.
Stainless Steel Diaphragm Valves are constructed using high-grade materials such as SS 304, 316, and 316L, made up mainly of Chromium (18–20%), Nickel (8–14%), and Molybdenum (2–3%) in 316/316L for improved corrosion resistance. These valves have good mechanical properties, such as tensile strength of 485–620 MPa and good ductility. Physically, they have a density of 7.9 g/cm³, melting point of approximately 1400°C, and very good thermal and chemical resistance. Their hygienic, non-toxic material and strong construction make them suitable for use in sterile, corrosive, and high-purity applications in various industries.
| Body Material | Stainless Steel |
| Connection | Clamp / Weld |
| Operated | Plastic Handwheel |
| Seal | PTFE + EPDM (Double Layer) |
| Standard | 3A / BPE / DIN |
| Available Size | DN25 ~ DN65 / 1″ ~ 2 1/2″ |
| Structure | T Type |
| Max.Working Pressure | 10 Bar |
| Max. Working Temp. | 120 ℃ |
| Material | C | Si | Mn | P | S | Cr | Ni | N |
|---|---|---|---|---|---|---|---|---|
| Stainless Steel | 0.080 max | 0.75 max | 2.00 max | 0.045 max | 0.030 max | 18.00-20.00 | 8.00-10.50 | 0.100 max |
| Material | Yield Strength | Tensile Strength | Elongation (%) | Reduction of Area (%) | Hardness Max | |
|---|---|---|---|---|---|---|
| Min (Mpa) | Min (Mpa) | Min | Min (50mm) | HB | HR B | |
| Stainless Steel | 170 | 458 | 30 | 50 | 201* | 92* |
Contact us to get a quick quote for your requirement.

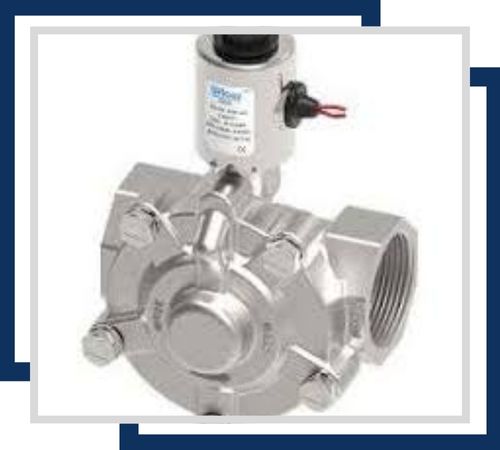

Stainless Steel Air to Open Actuated Diaphragm Valve provides automated, reliable flow control with corrosion resistance, ideal for cleanroom, pharmaceutical, and chemical processing applications.

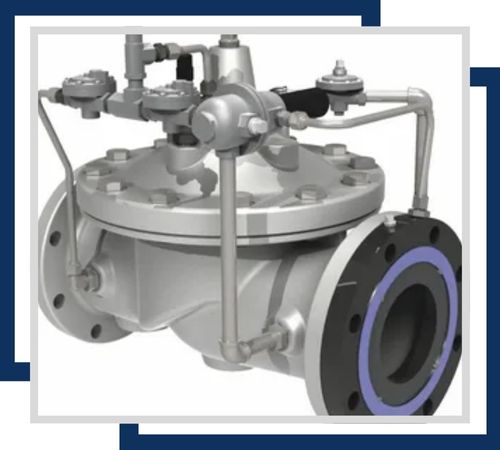

Stainless Steel Globe Control Valve Diaphragm Operated offers precise flow regulation, corrosion resistance, and reliable performance, ideal for chemical, pharmaceutical, and high-purity fluid applications.

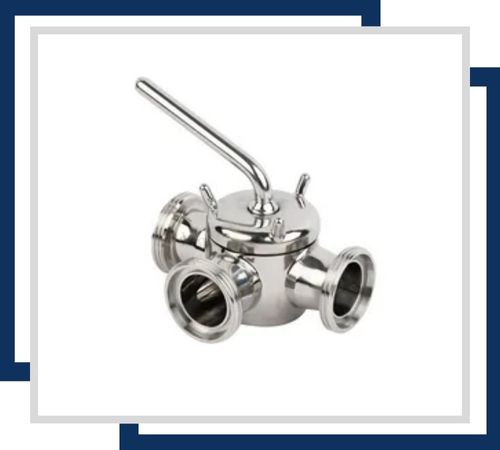

Stainless Steel Weir Diaphragm Valves provide leak-proof, hygienic flow control with excellent corrosion resistance, ideal for pharmaceutical, food, beverage, and chemical processing applications.

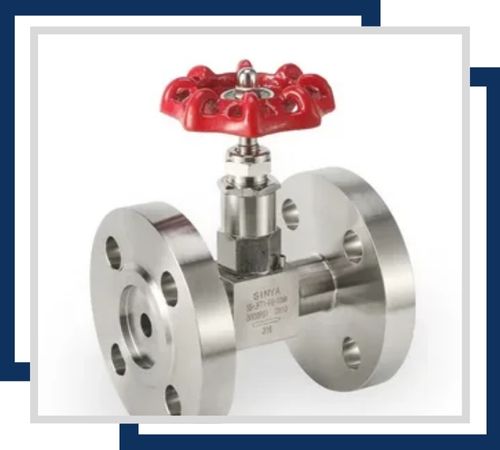

Stainless Steel Diaphragm Flow Control Valves ensure accurate flow regulation, chemical resistance, and hygienic operation, ideal for pharmaceutical, biotech, food, and water treatment applications.

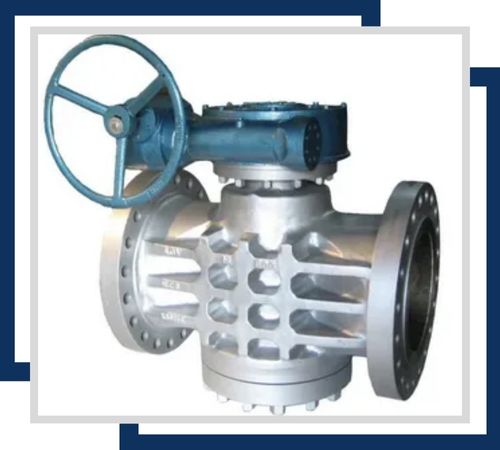

Stainless Steel Flanged Diaphragm Valves offer secure, leak-proof connections with excellent corrosion resistance, ideal for hygienic, chemical, and industrial fluid control applications.

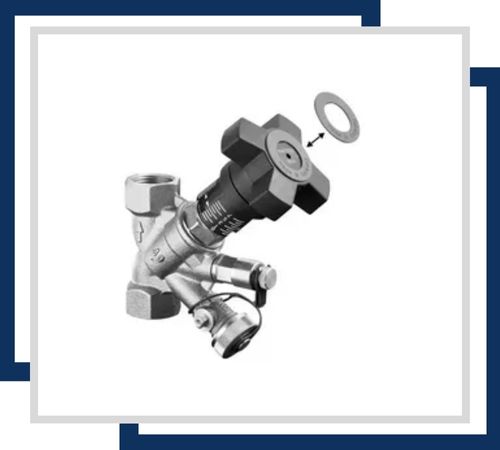

Stainless Steel Straightway Diaphragm Valve ensures smooth, unobstructed flow with excellent corrosion resistance, ideal for slurry, viscous fluids, and hygienic industrial applications.
We ensure to deliver our customers the best Stainless Steel Diaphragm Valves with top class performance and dependability. Every valve is tested through a series of exhaustive and stringent quality checks before dispatch, such as hardness testing, chemical analysis (spectro analysis), positive material identification (PMI), flattening tests, micro and macro test, pitting resistance test, flaring test and intergranular corrosion (IGC) test. As an additional assurance of quality and conformity, we also issue third-party inspection certificates so that our customers are assured to the full of the reliability, safety, and applicability of our valves to a variety of uses.
SS Diaphragm Valves are used extensively in industries that demand precise, hygienic, and leak-free flow control. They offer a sleek, crevice-free construction suitable for pharmaceutical, biotechnology, and food and beverages applications in which sterility must be guaranteed. They find much application as well in chemical process, water purification, and chip manufacturing owing to their corrosiveness and aggressivity resistance. These valves excel in both throttling and on/off operations and are thus a first choice for slurries, viscous liquids, or high-purity gas systems in challenging industrial processes.
