Midland, UK-based Weston Stainless is a reputable exporter of premium quality stainless steel items, including Stainless Steel Valves. These are offered in types like 304, 316, 321, and 904L to provide high resistance to corrosion as well as hardness. They can be provided in different forms such as ball, gate, globe, check, and butterfly valves for smooth flow control. Made of austenitic, ferritic, and duplex stainless steel, they possess superior mechanical strength and heat resistance. They meet international standards and are extensively used in precision, reliability, and long-lasting flow regulation systems in industries.
Stainless Steel Valves consist of components such as chromium (16-25%), nickel (8-20%), molybdenum (0-4%), and traces of carbon, manganese, silicon, and phosphorus, which make them more resistant to corrosion and wear. Mechanically, these valves have tensile strength of 515-750 MPa, yield strength of 205-550 MPa, and elongation of 30-40%. Their physical properties are a density of about 7.9 g/cm³, thermal conductivity of 14-16 W/m·K, and oxidation resistance up to 870°C, which provides efficient operation in high-pressure and extreme temperature conditions.
| Size | 40 MM TO 300 MM |
|---|---|
| Temperature | -29°C — +180°C |
| Available Connection | BSP/ BSPT/ NPT/ Flanged/ Welded |
| Nominal Pressure | P10/PN16 |
| Suitable Medium | Water,Sewage,Seawater,Gas,Food,Oils,etc |
| Applications | Water, Oil, Gas, |
| Operation Temperature | -10°C~150°C |
| Material | C | Si | Mn | P | S | Cr | Ni | N |
|---|---|---|---|---|---|---|---|---|
| Stainless Steel | 0.080 max | 0.75 max | 2.00 max | 0.045 max | 0.030 max | 18.00-20.00 | 8.00-10.50 | 0.100 max |
| Material | Yield Strength | Tensile Strength | Elongation (%) | Reduction of Area (%) | Hardness Max | |
|---|---|---|---|---|---|---|
| Min (Mpa) | Min (Mpa) | Min | Min (50mm) | HB | HR B | |
| Stainless Steel | 170 | 458 | 30 | 50 | 201* | 92* |
Contact us to get a quick quote for your requirement.
Stainless Steel Valves consist of components such as chromium (16-25%), nickel (8-20%), molybdenum (0-4%), and traces of carbon, manganese, silicon, and phosphorus, which make them more resistant to corrosion and wear. Mechanically, these valves have tensile strength of 515-750 MPa, yield strength of 205-550 MPa, and elongation of 30-40%. Their physical properties are a density of about 7.9 g/cm³, thermal conductivity of 14-16 W/m·K, and oxidation resistance up to 870°C, which provides efficient operation in high-pressure and extreme temperature conditions.
Design with flanged ends, available in sizes from 1/2″ to 12″. It offers exceptional corrosion resistance, making it ideal for various industrial applications requiring robust and reliable flow control.

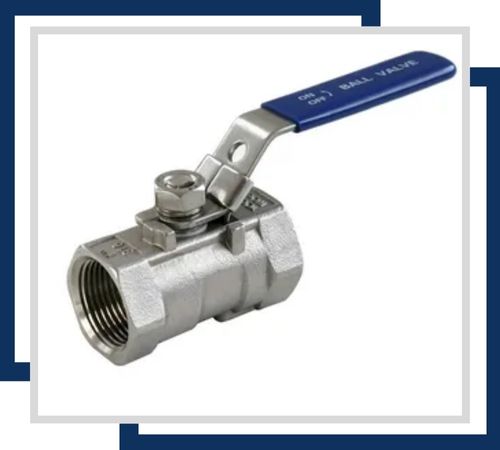

Featuring a one-piece design with screwed ends, this ball valve is available in sizes from 1/4″ to 4″. Its corrosion-resistant stainless steel construction ensures durability and reliability in a wide range of applications.
This ball valve comes with pneumatic actuation, providing automated flow control. Available in sizes from 1/2″ to 12″, it offers superior corrosion resistance and is perfect for automated systems in demanding environments.

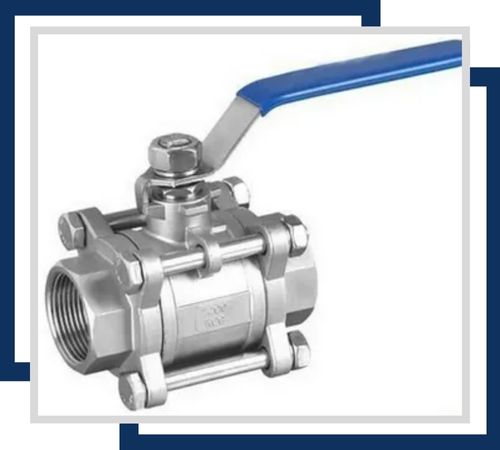

Designed with three-piece construction, this forged stainless steel ball valve is available in sizes from 1/2″ to 4″. Its high corrosion resistance and easy maintenance make it ideal for high-performance industrial applications.
Three-piece design with an OD base, available in sizes from 1/2″ to 4″. Made from corrosion-resistant stainless steel, it provides reliable performance and easy maintenance in various industrial settings.
Featuring a three-piece design with flanged ends, this three-way ball valve is available in sizes from 1/2″ to 12″. Its corrosion-resistant construction allows for versatile flow control in complex piping systems, suitable for industrial applications.
Stainless Steel Valves find extensive applications in oil and gas, chemical, and petrochemical industries for accurate fluid and gas regulation. They are critical in water treatment plants, food and beverage processing, and pharmaceutical manufacturing, providing hygienic and contamination-free operations. They are also critical in power plants, HVAC systems, and marine applications, where high-pressure and temperature resistance is crucial. Their durability in harsh environments makes them ideal for industrial pipelines, manufacturing facilities, and refineries, providing smooth and reliable fluid control with low maintenance.
