Midland, UK-based Weston Stainless is a prominent supplier of high-quality stainless steel products offering long-lasting and corrosion-resistant solutions to various industries. Its flagship products among others include Stainless Steel 904L Tube Fittings, which are well known for their exceptional corrosion resistance, strength, and excellent formability. Graded under Grade 904L, the fittings are available in a number of shapes, such as elbow, tee, reducer, union, and couplings, suitable for different piping system applications. Made of austenitic stainless steel, they exhibit excellent resistance against acidic conditions, corrosion caused by chlorides, and pitting, and therefore are best used in applications involving long-term longevity in extreme environments.
| Specifications | : | ASTM S182 / A276 ASME SA 479 |
| Tube Size | : | 6mm to 38mm to 1/4″ to 1 1/2″ |
| Thread | : | NPT, BSP, BSPT, UNF, ISO, SAE, etc. |
| Brass | : | ASTM B16 ASTM B 453 |
| Pressure Rating | : | 6000PSI for Stainless Steel, 300/1000/3000PSI for Brass |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | Cu |
| SS 904L | 0.02 max | 2.0 max | 1.0 max | 0.045 max | 0.035 max | 19 – 23 | 23 – 28 | 4 – 5 | 1 – 2 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 904L | 8.05 g/cm3 | 1350 °C (2460 °F) | Psi – 71000, MPa – 490 | Psi – 32000, MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.
Stainless Steel 904L Tube Fittings consist of mostly iron with high nickel (23-28%) and chromium (19-23%) levels, providing superb corrosion resistance. They also contain molybdenum (4-5%), copper (1-2%), and a low carbon content, which boosts their longevity in acidic and chlorinated environments. These fittings have a tensile strength of about 490 MPa, a yield strength of about 220 MPa, and an elongation of 35%. They have a physical property of about 8 g/cm³ density, high thermal conductivity, and good thermal expansion, making them very well-suited for extreme temperature use.

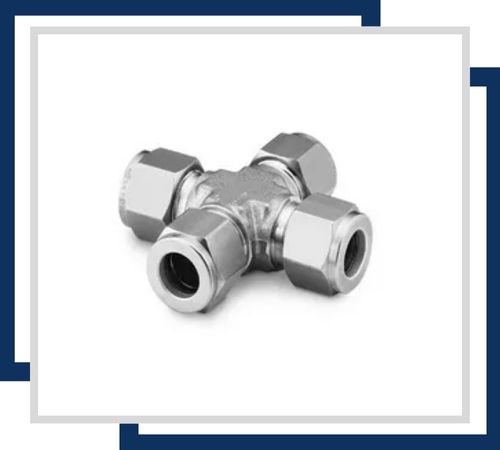

Connects four tubes at a right angle. It typically comes in sizes ranging from 1/4″ to 2″. Known for its exceptional corrosion resistance, it is ideal for highly corrosive environments.
Smoothly transitions two different tube sizes. Available in sizes from 1/4″ to 2″ and designed for high corrosion resistance, it’s perfect for managing flow changes in corrosive settings.

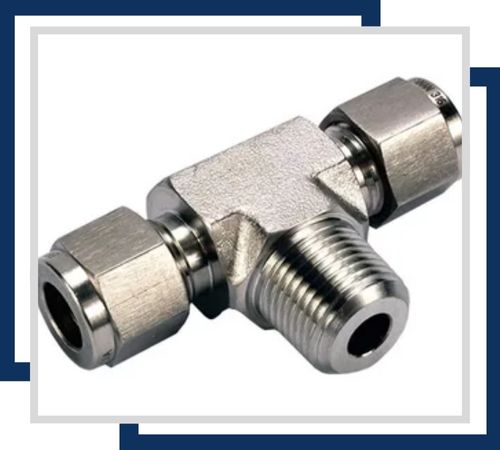

Features a male thread on the branch and is used to create a branch connection. It is available in sizes from 1/4″ to 2″ and offers excellent resistance to corrosion, making it suitable for harsh environments.

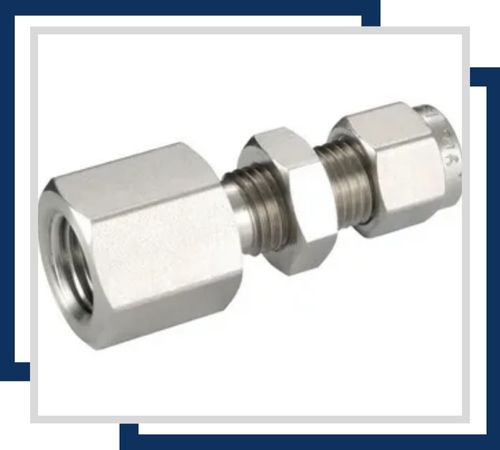

Designed to join two tubes with female threads. It comes in sizes from 1/4″ to 2″ and is highly corrosion resistant, ideal for chemical processing and marine applications.

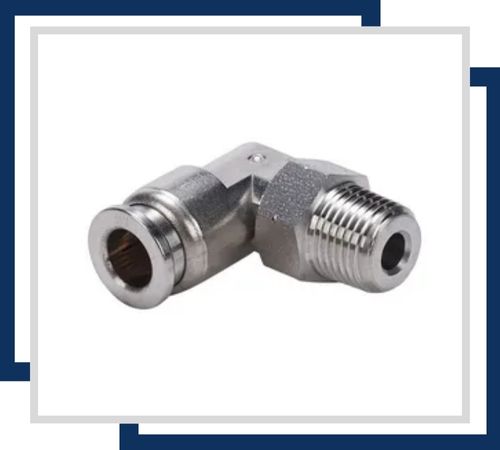

Allows for a 90-degree change in the direction of the tubing. Available in sizes from 1/4″ to 2″, it provides superior corrosion resistance and is suitable for complex piping systems in corrosive environments.

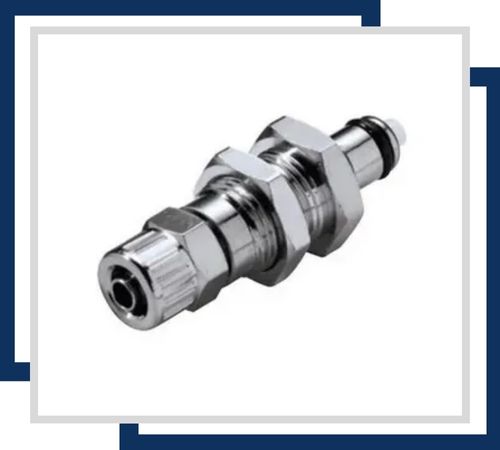

Connects two tubes with male threads. It is available in sizes from 1/4″ to 2″ and offers high resistance to corrosion, making it ideal for use in aggressive chemical environments.
Stainless Steel 904L Tube Fittings find extensive use in industries needing high corrosion resistance, like chemical processing, marine, and offshore. They are critical in heat exchangers, drug processing, and food processing where non-reactivity and strength are of prime importance. They are also used in seawater desalination facilities, paper and pulp industries, and power plants because they can resist sulfuric, phosphoric, and acetic acids. Their high mechanical properties, resistance to chloride stress corrosion cracking, and long service life make them the best for demanding industrial conditions.
Stainless Steel 904L Tube Fittings are supplied with mill test certificates like EN 10204 3.1 or 3.2 to meet quality standards of the world. They are properly packed in wooden crates, bubble wrap, or plastic wrapping to avoid any damage during transit. Schedules of delivery depend on order quantity and destination, with well-coordinated logistics ensuring timely shipment. Special packaging arrangements can be arranged upon request to suit particular customer needs to deliver the fittings in perfect condition.
