Weston Stainless, based in Midland, UK, is a trusted supplier of high-quality stainless steel products, serving various industrial and commercial sectors. They specialize in offering a wide range of stainless steel fasteners, bolts, nuts, washers, sheets, pipes, and fittings that meet international quality standards. The Stainless Steel 316Ti Fasteners, made from Grade 316Ti austenitic stainless steel, offer excellent corrosion resistance, high-temperature strength, and durability. Available in various shapes such as hex bolts, studs, screws, washers, and nuts, these fasteners are ideal for chemical processing, marine, pharmaceutical, and high-temperature industrial applications, ensuring long-lasting performance.
Stainless Steel 316Ti Fasteners are made from Grade 316Ti austenitic stainless steel, primarily composed of 16-18% Chromium, 10-14% Nickel, 2-3% Molybdenum, 0.04-0.10% Titanium, 2% Manganese, 1% Silicon, 0.045% Phosphorus, 0.03% Sulfur, and balance Iron, ensuring excellent corrosion resistance and high-temperature strength. The mechanical properties include a tensile strength of 515 MPa, yield strength of 205 MPa, elongation of 40%, and hardness of 95 HRB, offering superior durability. The physical properties feature a density of 8.0 g/cm³, thermal conductivity of 16.3 W/m·K, and a melting point of 1400°C, making them ideal for high-temperature environments.
| Standard | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Bolt / Screw Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Nuts Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Washers Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Machine Screws Size | M1.6 – M12 |
| Self Tapping Screw Size | No.2 – No. 14 |
| Length | 3 mm to 200 mm |
| Studs, Bolts, Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Bolting | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

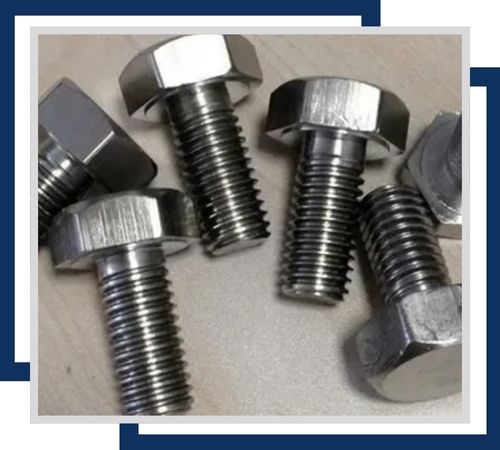

Corrosion-resistant and highly durable, Stainless Steel 316Ti Bolts are ideal for high-temperature and marine applications. Available in sizes ranging from M6 to M30, with lengths up to 300 mm. They offer excellent resistance to pitting and crevice corrosion.

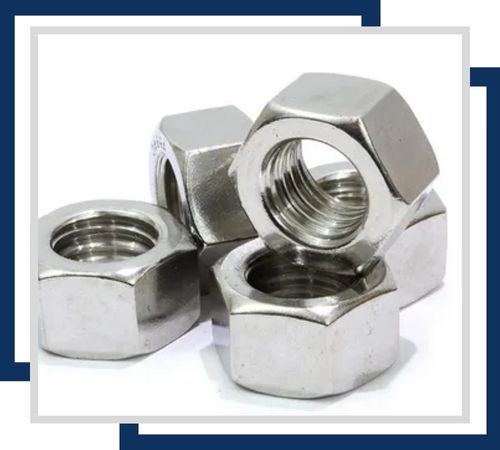

Designed for exceptional corrosion resistance, especially in chloride environments. Typically available in sizes from M6 to M30, with various thread pitches. They complement 316Ti bolts and are used in high-temperature and aggressive environments.

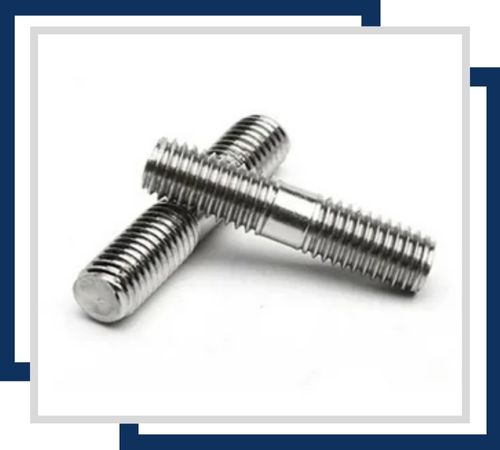

Offering superior resistance to corrosion and high strength, these Stud Bolts come in sizes from M6 to M30, with lengths ranging from 50 mm to 300 mm. Ideal for use in severe service conditions where high tensile strength is needed.

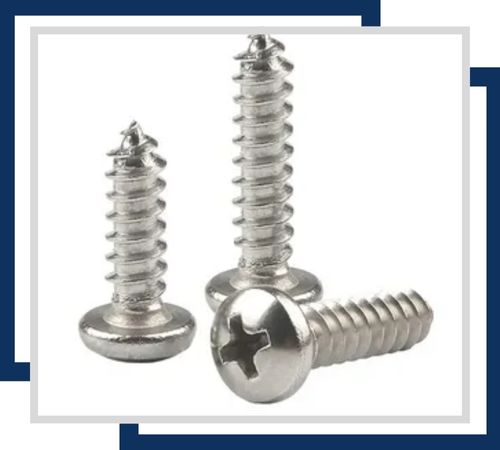

Corrosion resistance, these screws are used in marine and industrial applications. Available in sizes from M2 to M20, with lengths up to 200 mm. They provide reliable performance in environments exposed to chemicals and saltwater.

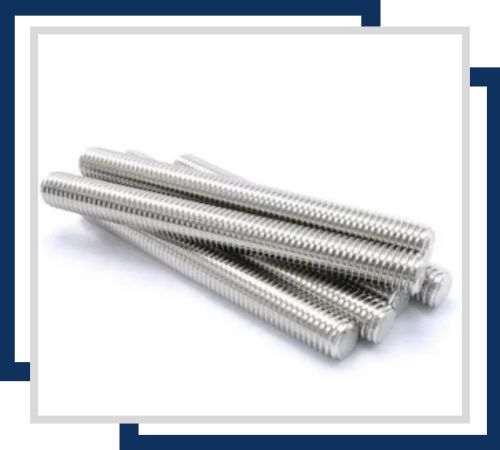

Corrosion-resistant and high-strength, these rods are available in diameters from M6 to M30 and lengths up to 3 meters. They are used in construction and industrial applications where resistance to harsh environments is critical.

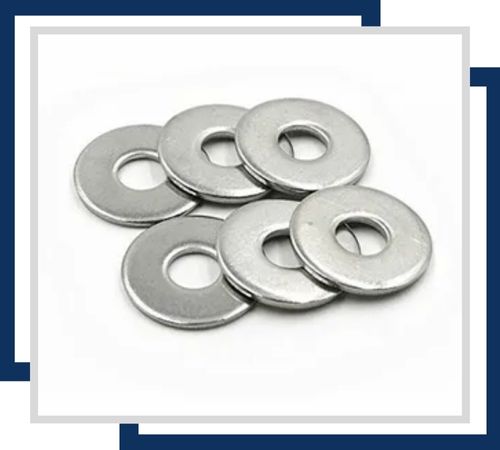

Offering excellent resistance to corrosion, these washers are available in sizes from M6 to M30. They ensure even load distribution and prevent damage to surfaces. It is ideal for use with 316Ti bolts and nuts in aggressive environments.
Stainless Steel 316Ti Fasteners are widely used in high-temperature and corrosive environments due to their excellent strength, oxidation resistance, and durability. They are ideal for chemical processing, petrochemical, and oil and gas industries where they are used in heat exchangers, pressure vessels, boilers, and piping systems. In the marine and offshore industries, these fasteners are suitable for shipbuilding, coastal structures, and marine equipment due to their resistance to seawater corrosion. Additionally, they are commonly used in pharmaceutical, food processing, power plants, and heat treatment units, ensuring long-lasting performance in extreme conditions.
Stainless Steel 316Ti Fasteners supplied by Weston Stainless come with essential test certificates such as Mill Test Certificate (MTC) as per EN 10204/3.1B, Third-Party Inspection Report, Raw Material Test Report, and 100% Radiography Test Report, ensuring top-quality standards and material authenticity. The fasteners are securely packed in wooden boxes, plastic containers, bubble wrapping, or customized packaging to prevent damage during transit. Safe and timely delivery is ensured to domestic and international clients through a reliable supply network.
