Weston Stainless is a Midland, UK company, which is one of the foremost distributors of quality stainless steel products for the industrial sectors in need of tough, corrosion-resistant, and high-strength material. Amongst its products, Stainless Steel 304L Fasteners are greatly applied for good mechanical properties and oxidation resistance. 304L grade is an austenitic low-carbon stainless steel alloy composed of iron, 18-20% chromium, 8-12% nickel, and up to 0.03% carbon to provide high weldability and resistance to corrosion. Supplied as bolts, nuts, washers, screws, and studs, these fasteners are specifically ideal for applications in marine, construction, chemicals, and at high temperatures requiring long-term durability.
Stainless Steel 304L Fasteners are composed of iron with 18-20% chromium, 8-12% nickel, a maximum of 0.03% carbon, and small amounts of manganese, silicon, phosphorus, and sulfur, offering excellent corrosion resistance and durability. Their mechanical properties include a tensile strength of 485 MPa, yield strength of 170 MPa, and elongation of 40%, ensuring strong and reliable performance. The physical properties feature a density of 7.9 g/cm³, a melting point of 1400-1450°C, and thermal conductivity of 16.2 W/m·K. These properties make 304L fasteners ideal for marine, chemical, and structural applications requiring high strength and longevity.
| Material Specification | ASME SA193, ASTM A194, UNS S30403 Bolts |
|---|---|
| Standard | BS, IS, JIS, ISO, GB, ANSI, UNI, ASTM, DIN, ASME, |
| Bolts, Studs Threads: | BSW, UNF, BSF, METRIC, UNC, or as required |
| Bolts Size | M2, M14, M30, M5, M6, M16, M20, M3, M8, M36, M4, M10, M24, M2.5, M12, to M160 |
| Length | 3 to 200 mm |
| In Form of: | Square, Hex, Threading, Round as per Gauge Etc. |
| Fasteners Standard: | ANSI
DIN: DIN 933, DIN 934, DIN 931, DIN 970, UTS : UNF, UNC, NPT, NPTF, UNEF, UNS, ISO: ISO 4033, JIS standards, ISO 4032 |
| Head drive: | Slotted, Phillips, Six-Lobe, Phillips/Slot etc |
| bolting materials Surface Coating: |
|
| bolting Test Certificate: | EN 10204 / 3.1 |
| Production process | M24 to M100 : hot forging, M2 to M24: machining and CNC, Cold Froging |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 550 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

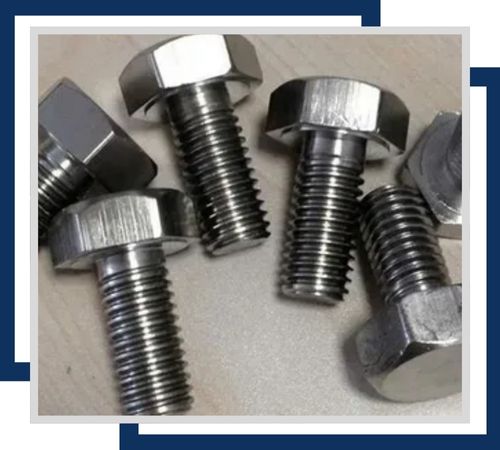

High resistance to oxidation and corrosion. They are available in sizes ranging from M6 to M64, with various lengths depending on application requirements. It is ideal for general-purpose fastening in diverse environments.

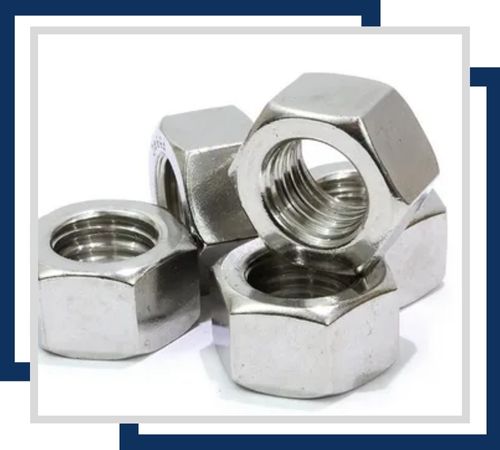

Excellent durability and strength, suited for various applications. Sizes typically range from M6 to M64, matching the corresponding bolts. They are used to secure bolts in corrosive and high-temperature environments.

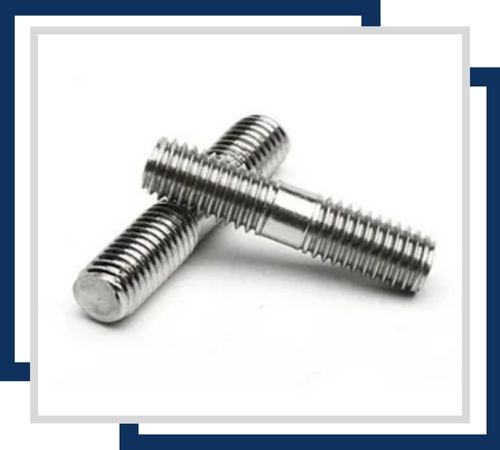

Exceptional strength and resistance to corrosion. Commonly available in sizes from M6 to M64, they are used for applications requiring threaded fasteners with precise length and strength, including heavy-duty industrial use.

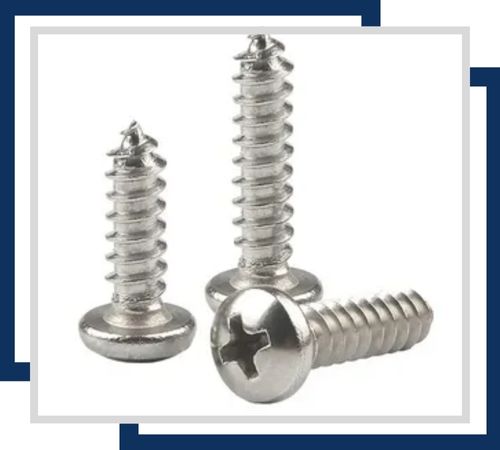

Strong resistance to rust and corrosion, making them ideal for various applications. They come in sizes from M3 to M30 and lengths suited to specific needs, offering reliable performance in harsh environments.

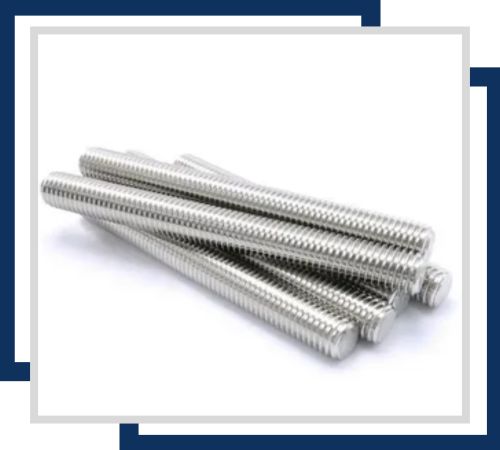

Versatile and durable, available in diameters from M6 to M64. They are used to make custom-length fasteners or supports and provide high resistance to corrosion and wear in industrial settings.

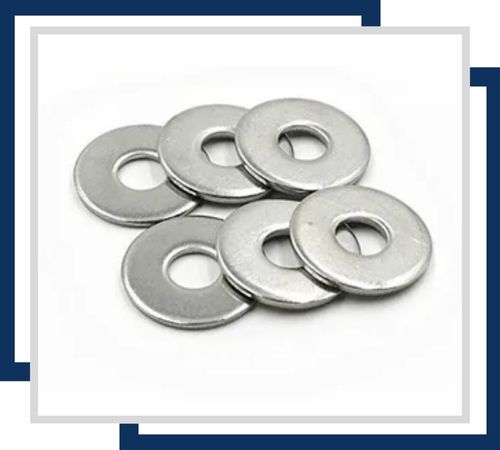

Designed to distribute loads and prevent surface damage. They come in sizes that match standard bolts and nuts, typically from M6 to M64, ensuring effective load distribution and corrosion resistance.
Stainless Steel 304L Fasteners are supplied with test certificates such as Mill Test Certificates (MTC) in accordance with EN 10204 3.1/3.2, third-party inspection reports, and material traceability documents to ensure quality conformity. Stainless Steel 304L Fasteners are wrapped in plastic, cartons, or wooden boxes to prevent damage during shipment. Delivery is fast, with services to domestic as well as international markets with suitable labeling, packaging, and secure transportation to provide safe and timely delivery to the destination.
