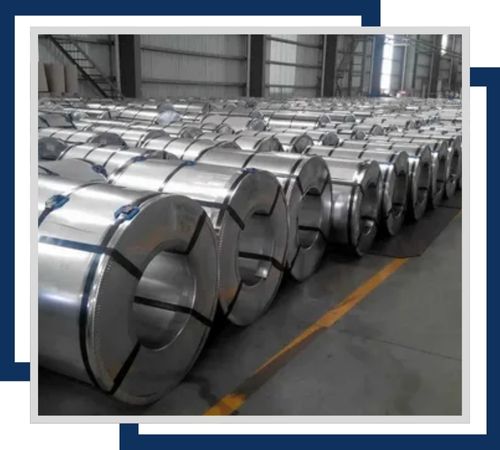

Weston Stainless, Midland, UK, is a well-known supplier of superior quality stainless steel products serving various industrial requirements with precision-engineered solutions. Stainless Steel 17-7 PH Coils are fabricated with a precipitation-hardening chromium-nickel-aluminum alloy that provides outstanding strength, corrosion resistance, and fatigue characteristics. The coils come in various shapes such as strips and rolls and find extensive applications in aerospace, chemical, marine, and industrial sectors. The 17-7 PH grade provides great hardness, outstanding wear resistance, and good formability, rendering such coils highly suitable for demanding conditions of high-performance applications demanding toughness, flexibility, and lasting dependability.
Stainless Steel 17-7 PH Coils contain 16-18% Chromium, 6.5-7.75% Nickel, 0.75-1.5% Aluminum, 1% Manganese, 1% Silicon, 0.09% Carbon, 0.04% Phosphorus, and 0.03% Sulfur. They have a tensile strength of up to 1034 MPa, a yield strength of 724 MPa, and an elongation of 6-10%, providing superior mechanical performance. They have a physical density of 7.8 g/cm³, a melting point of around 1400-1450°C, and a thermal conductivity of 16.3 W/m·K. They are therefore well suited to high-stress applications that need excellent corrosion resistance, strength, and durability.
| Product Name | 17-7 ph stainless steel coil |
| Grades | 301/EN 1.4310/SUS301 |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard as customer’s requirements |
| Thickness | 0.02mm-6.0mm |
| Width | 1.0mm-1500mm |
| Edge | Slit/Mill |
| Quantity Tolerance | ±10% |
| Paper Core Internal Diameter | Ø500mm paper core, special internal diameter core and without paper core on customer request |
| Surface Finish | NO.1/2B/2D/BA/HL/Brushed/6K/8K Mirror,etc |
| Packaging | Wooden Pallet/Wooden Case |
| Payment Terms | 30% TT deposit and 70% balance before shipment, 100% LC at sight |
| Delivery Time | 5-7 working days |
| MOQ | 200Kgs |
| Sample | The sample of 301 stainless steel coil is available |
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo |
| 17-7 ph Coils | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 16.00-18.00 | 6.00-8.00 | – |
| Grade | EN Grade | Yield Strength Rp0.2(N/mm²) | Tensile Strength Rm(N/mm²) | Hardness | Vickers Hardness(HV) | Elongation A50% |
| 17-7 ph Coils | 1.4310 | ≥205 | ≥520 | Annealed | ≥160 | ≥40 |
Contact us to get a quick quote for your requirement.

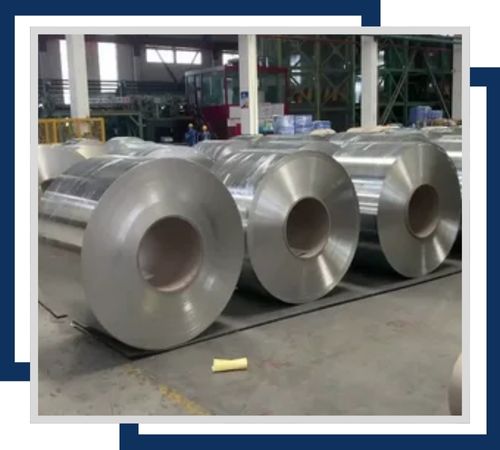

Enhanced corrosion resistance, these Stainless Steel 17-7 PH Plated Coils are coated. They posses high strength and have excellent mechanical properties, which enable their application for demanding aerospace, automotive, and industrial purposes.
They are highly strong and have a lot of durability. These are very useful for applications that require toughness, resistance to stress, and corrosion.
Precise finish and enhanced mechanical properties. They provide high strength, excellent dimensional accuracy, and corrosion resistance.
Stainless Steel 17-7 PH Coils find broad applications in industries demanding high strength, corrosion resistance, and good fatigue properties. They are utilized in aerospace in structural parts, springs, and fasteners owing to their long lifespan and low weight. In the automotive sector, they find application in exhaust systems and heat shields. They also play a vital role in chemical processing, marine, and industrial machinery applications where wear and high-temperature resistance are a must. Moreover, the coils are applied in medical devices, food processing, and power stations, providing long-term operation in harsh conditions involving exposure to moisture, chemicals, and mechanical stress.
Stainless Steel 17-7 PH Coils are accompanied by test certificates like Mill Test Certificates (MTC) according to EN 10204/3.1, third-party inspection reports, and material traceability documents for guaranteed quality and conformance. The coils are packaged safely in wooden crates, wrapped with waterproof covers, and provided with anti-rust coatings for protection against transportation damage. Supply is organized through air, sea, or land transport, allowing for safe and timely delivery to worldwide destinations.
