Weston Stainless, with its head office in Midland, UK, is a well-known provider of high-grade stainless steel products to industries globally. Among its high-end products, Stainless Steel XM19 Nuts are highly regarded for their excellent corrosion resistance, high strength, and longevity. These nuts are produced using XM19 grade austenitic stainless steel and come in a range of shapes and sizes to suit industrial fastening requirements. With superior pitting, crevice corrosion, and stress corrosion cracking resistance, they provide excellent performance in harsh environments. Their proprietary blend of nitrogen and molybdenum improves their mechanical properties, and they are perfectly suited for demanding marine, aerospace, and chemical applications.
Stainless Steel XM19 Nuts consist of 20-23% chromium, 11-13% nickel, 4-6% manganese, 1.5-3% molybdenum, and nitrogen for improved strength and corrosion resistance. These have a tensile strength of about 895 MPa, a yield strength of 379 MPa, and an elongation of 30%. XM19 has a density of 7.9 g/cm³, offering superior thermal conductivity and oxidation resistance. This grade maintains its mechanical properties even under harsh conditions of temperature, making it particularly appropriate for hostile environments that need high-performance fastening solutions.
Material | Specification | Standards | Size | Length |
Stainless Steel XM19 Nuts | ANSI ,DIN,ASME,ASTM | ASTM / ASME – A/ SA 320 | M4-M100(1/4-4 inch) | M02 to M33 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| XM19 | min. max. | – 0.06 | 4.0 6.0 | – 1.00 | – – | – – | 20.5 23.5 | 1.5-3 | 11.5 13.5 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| XM19 | 100 KSi | 55 KSi | 35% | 55% | 293 |
Contact us to get a quick quote for your requirement.
Superior strength, corrosion resistance, and durability, ideal for harsh environments and high-stress applications. Their precision and reliability make them essential for demanding engineering and construction projects.

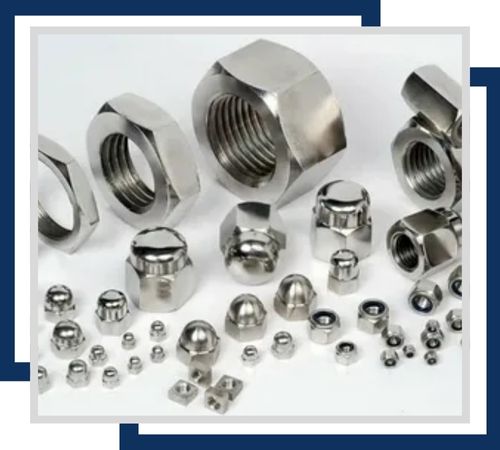

Unique design that prevents loosening under vibration. They offer exceptional strength, corrosion resistance, and durability, making them perfect for high-stress applications.

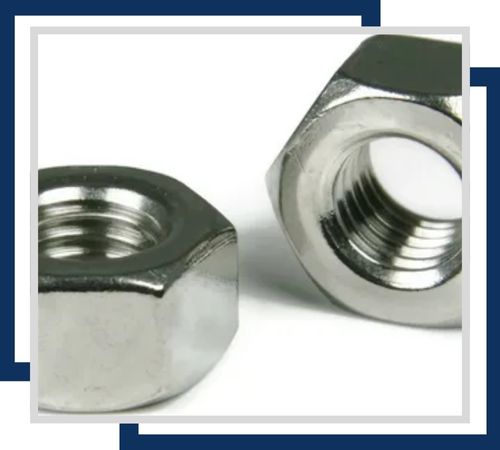

Excellent resistance to loosening due to vibrations and dynamic loads. They combine high strength, corrosion resistance, and durability, ideal for demanding and critical applications.

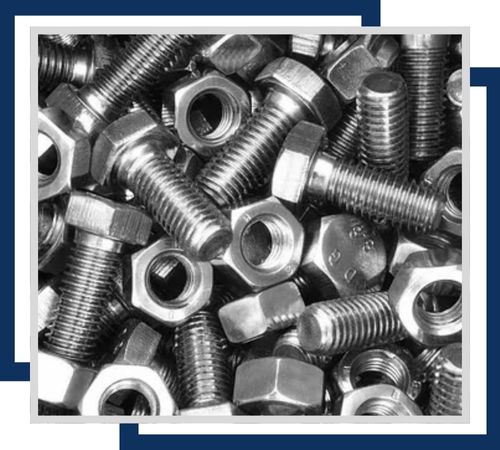

Robust performance with superior corrosion resistance and strength. Their extended height enhances grip and stability in critical applications, making them ideal for demanding and high-stress environments.

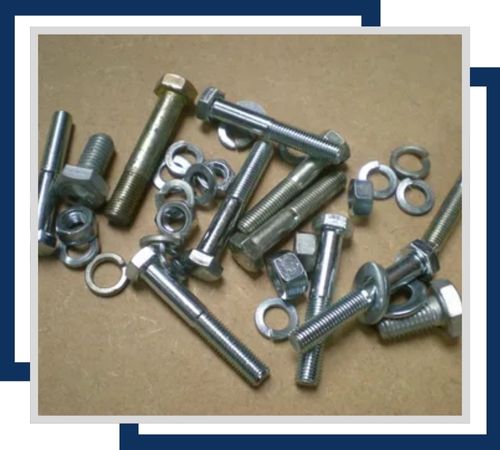

Feature a serrated flange that grips surfaces firmly, preventing loosening under vibration. They provide exceptional strength, corrosion resistance, and stability, ideal for high-stress and dynamic applications
Stainless Steel XM19 Nuts are extensively utilized in industries requiring high strength and corrosion resistance. They are also used in marine and offshore processes, where they are exposed to saltwater, necessitating hard-wearing fastening solutions. They are also used in chemical processing plants, aerospace engineering, nuclear reactors, and petroleum refineries because of their resistance to aggressive chemicals and high temperatures. These nuts are also utilized in heat exchangers, pumps, and valves to provide long-lasting performance in high-pressure and corrosive conditions, making them essential in critical fastening applications.
Stainless Steel XM19 Nuts are accompanied by mill test certificates like EN 10204 3.1 and 3.2 to provide guarantees of conformity with international quality standards. The nuts are packed very carefully in wood crates, plastic covers, and bubble wrap to avoid any form of damage while in transit. Special packaging options are also available according to customers’ needs. With an efficiently organized supply chain, these nuts are supplied efficiently to customers around the world in perfect condition ready for immediate application.
