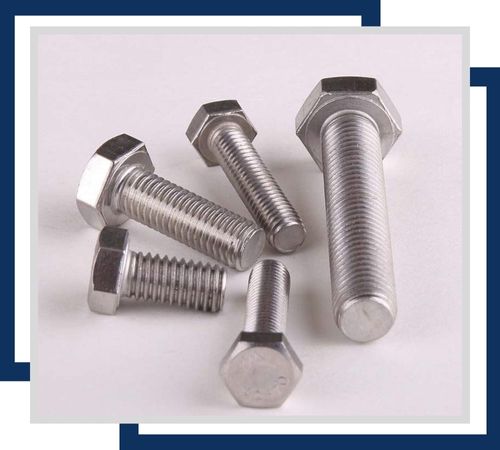

Weston Stainless is a Midland, UK-based reliable manufacturer and supplier of excellent stainless steel products to construction, automotive, marine, and chemical processing industries. It offers long-lasting, resistant solutions to be used in numerous industrial processes. Among its notable products is Stainless Steel 304H Bolts, which is crafted with high-carbon 304H stainless steel for exceptional strength and heat resistance. They come in hex, square, U-bolts, eye bolts, anchor bolts, and carriage bolt configurations, which make them suitable for heavy–duty, structural, and high–temperature fastening applications in harsh industrial settings.
Stainless Steel 304H Bolts are made up of 18-20% chromium, 8-10.5% nickel, 0.04-0.10% carbon, ≤2% manganese, ≤1% silicon, ≤0.045% phosphorus, and ≤0.03% sulfur, providing high corrosion resistance and high-temperature strength. Their mechanical properties have a tensile strength of 515 MPa, yield strength of 205 MPa, and elongation of 40%, providing durability in stressful applications. The physical characteristics have a density of 8.0 g/cm³, a melting interval of 1399-1454°C, and thermal conductivity of 16.2 W/m·K, and hence are ideal for use in heat exchangers, boilers, pressure vessels, and structural frames that need enhanced mechanical and thermal stability.
|
Material |
Specification |
Standards |
Size |
Length |
|
Stainless Steel 304H Bolts |
ASTM, ASME and API |
ASTM B 193 / ASME SB 193 |
M02 to M30 |
3 mm To 200 mm |
| Element | SS 304H |
| Tensile Strength (MPa) min | 480 |
| Yield Strength 0.2% Proof (MPa) min | 275 |
| Elongation (% in 50mm) min | 16 |
| Rockwell B (HR B) max Hardness | 95 |
| Brinell (HB) max Hardness | 201 |
| Element | SS 304H |
| Ni | 0.75 |
| C | 0.15 |
| Mn | 1.00 max |
| P | 0.04 max |
| S | 0.03 max |
| Si | 1.00 max |
| Cr | 11.5 – 13.5 |
| Mo | – |
| N | – |
Contact us to get a quick quote for your requirement.
Heat-resistant fasteners known for their excellent strength and corrosion resistance. They are ideal for high-temperature applications in industries like power generation and petrochemicals.

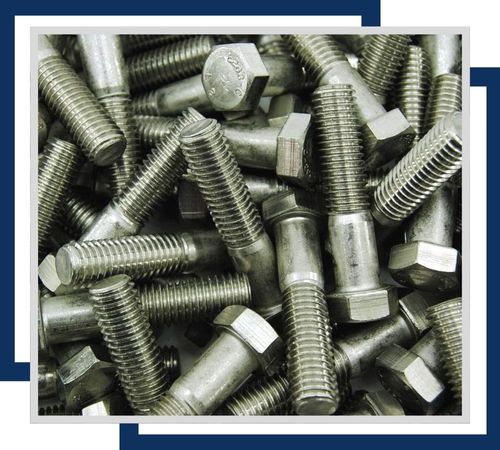

Custom Stainless Steel 304H Hex Bolts are tailored fasteners with hexagonal heads, providing excellent heat resistance and strength. Ideal for hot and complex industrial applications.

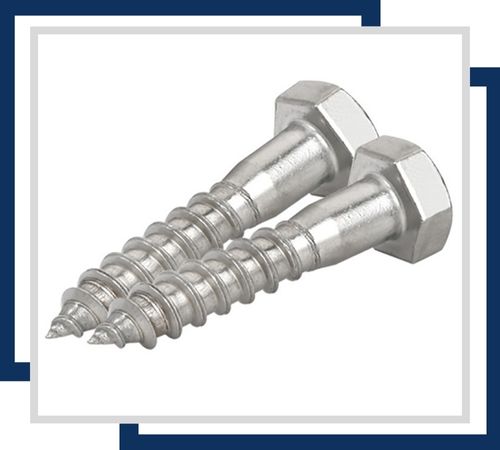

High-strength, heat-resistant fastener with a threaded shaft and flat, leg-like design. It provides durability and performance in high-temperature and demanding applications.

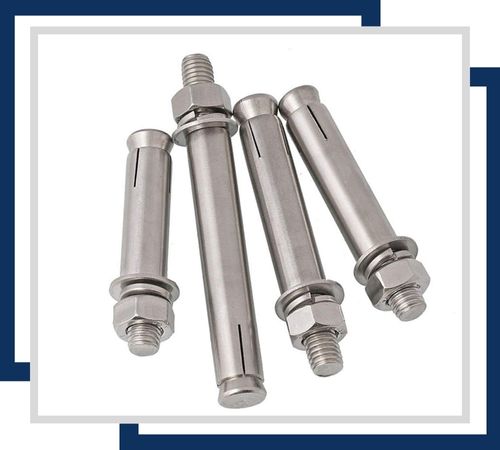

Secures fixtures in concrete or masonry, offering excellent heat resistance and strength. Ideal for high-temperature environments and demanding industrial applications requiring durability.

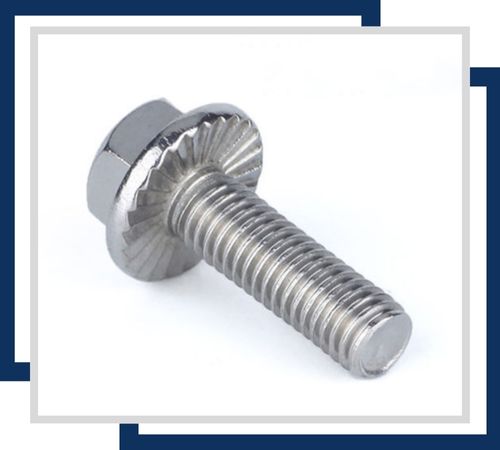

Hexagonal head with an integrated flange, providing secure fastening and load distribution. It offers excellent heat resistance for high-temperature applications.

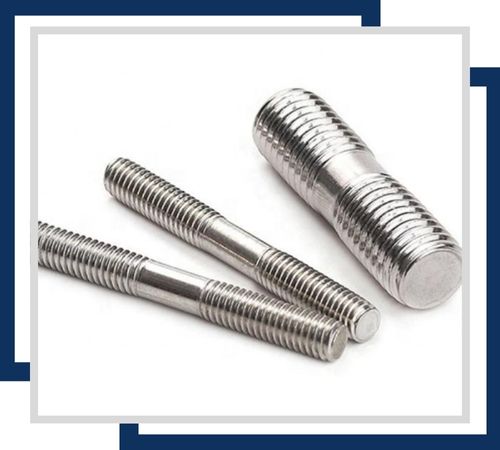

Completely threaded shaft for consistent engagement. They provide high strength and heat resistance, suitable for high-temperature and demanding industrial applications.
Stainless Steel 304H Bolts are extensively applied in corrosive and high-temperature applications, such as in boilers, heat exchangers, pressure vessels, and refinery equipment used in petrochemical, power plant, and chemical processing industries. They have high carbon levels, which increase strength, and thus are ideally suited for structural frameworks, exhaust systems, and high-temperature piping. They also find application in marine, aerospace, and food processing industries, guaranteeing long-term performance. Their thermal and oxidation resistance make them suitable for use in furnace components, heat treatment equipment, and industrial machinery exposed to harsh conditions.
Stainless Steel 304H Bolts are accompanied with necessary test certificates, such as Mill Test Certificate (MTC) according to EN 10204 3.1 or 3.2, Third-Party Inspection (TPI) reports, and Non-Destructive Testing (NDT) reports for adherence to industrial standards. The bolts are tightly packed in wooden crates, cartons, or plastic-wrapped bundles to secure them against physical damage during transportation and handling. Safe delivery is guaranteed via road, sea, or air shipping, addressing the needs of world industries effectively.
